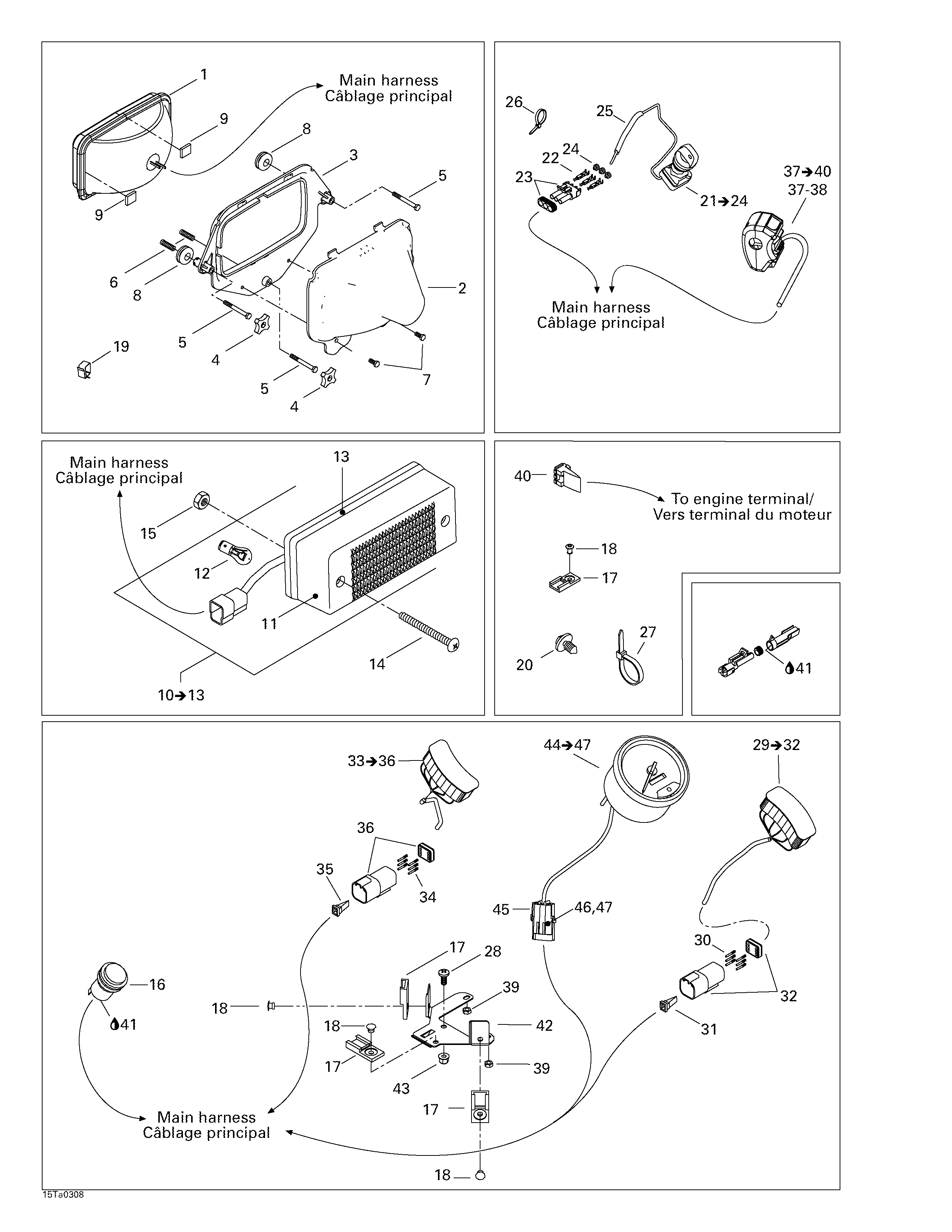

10- Electrical Accessories для BRP Traxter Max - 2003
-
№АртикулНазвание
-
1710000001 HeadlampHeadlamp
-
2705000023 ProtectorProtector
-
3705000474 Headlamp supportHeadlamp support
-
4572106600 HandleHandle
-
5250000008 Hex. screw K40 x 40Hex. screw K40 x 40
-
6517168600 SpringSpring
-
7241641040 Flanged screw K40 x 10Flanged screw K40 x 10
-
8293720053 GrommetGrommet
-
9293830088 Rubber padRubber pad
-
10710000102 Tail lamp housing. Includes 10 - 13.Tail lamp housing. Includes 10 - 13.
-
11710000055 Lens (red)Lens (red)
-
12410504100 Tail lamp bulbTail lamp bulb
-
13710000129 GasketGasket
-
14208656091 Screw M5 x 60Screw M5 x 60
-
15233251414 Elastic flanged stop nut M5Elastic flanged stop nut M5
-
16710000024 DC outlet plugDC outlet plug
-
17409014200 ClipClip
-
17270000141 ClipClip
-
18390402400 RivetRivet
-
19414227300 ClipClip
-
20293730018 Dart mountDart mount
-
21710000042 Ignition switch. Includes 21 - 24.Ignition switch. Includes 21 - 24.
-
21710000137 Blank Key (''A'' Type). Includes 21 - 24.Blank Key (''A'' Type). Includes 21 - 24.
-
21710000101 Blank Key (''B'' Type). Includes 21 - 24.Blank Key (''B'' Type). Includes 21 - 24.
-
22278000223 Female terminalFemale terminal
-
23278000273 Male terminal housing (3 circuits)Male terminal housing (3 circuits)
-
24278000218 Wire sealWire seal
-
25710000171 Protector tubeProtector tube
-
26293750002 Locking Tie 142 mmLocking Tie 142 mm
-
27293750002 Locking Tie 142 mmLocking Tie 142 mm
-
27293750008 Tie rap 350 mmTie rap 350 mm
-
28208651241 Screw M5 x 12Screw M5 x 12
-
29710000089 R.H. warning lamp. Includes 29 - 32.R.H. warning lamp. Includes 29 - 32.
-
30409014800 Male terminalMale terminal
-
31409014600 Male lock (6 circuits)Male lock (6 circuits)
-
32409015200 Male terminal housing (6 circuits)Male terminal housing (6 circuits)
-
33710000008 L.H. warning lamp. Includes 33 - 36.L.H. warning lamp. Includes 33 - 36.
-
34409014800 Male terminalMale terminal
-
35409014600 Male lock (6 circuits)Male lock (6 circuits)
-
36409015200 Male terminal housing (6 circuits)Male terminal housing (6 circuits)
-
37710000088 Multi-function switch. Includes 37 - 40.Multi-function switch. Includes 37 - 40.
-
38710000173 Back coverBack cover
-
39211100051 Elastic stop nutElastic stop nut
-
40278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
41293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
42710000159 Housing supportHousing support
-
43232551414 Elastic stop nut M5Elastic stop nut M5
-
44710000328 Speedometer. Includes 44 - 47.Speedometer. Includes 44 - 47.
-
45278001479 Male terminal housing (3 circuits)Male terminal housing (3 circuits)
-
46278000222 TerminalTerminal
-
47278000218 SealSeal
