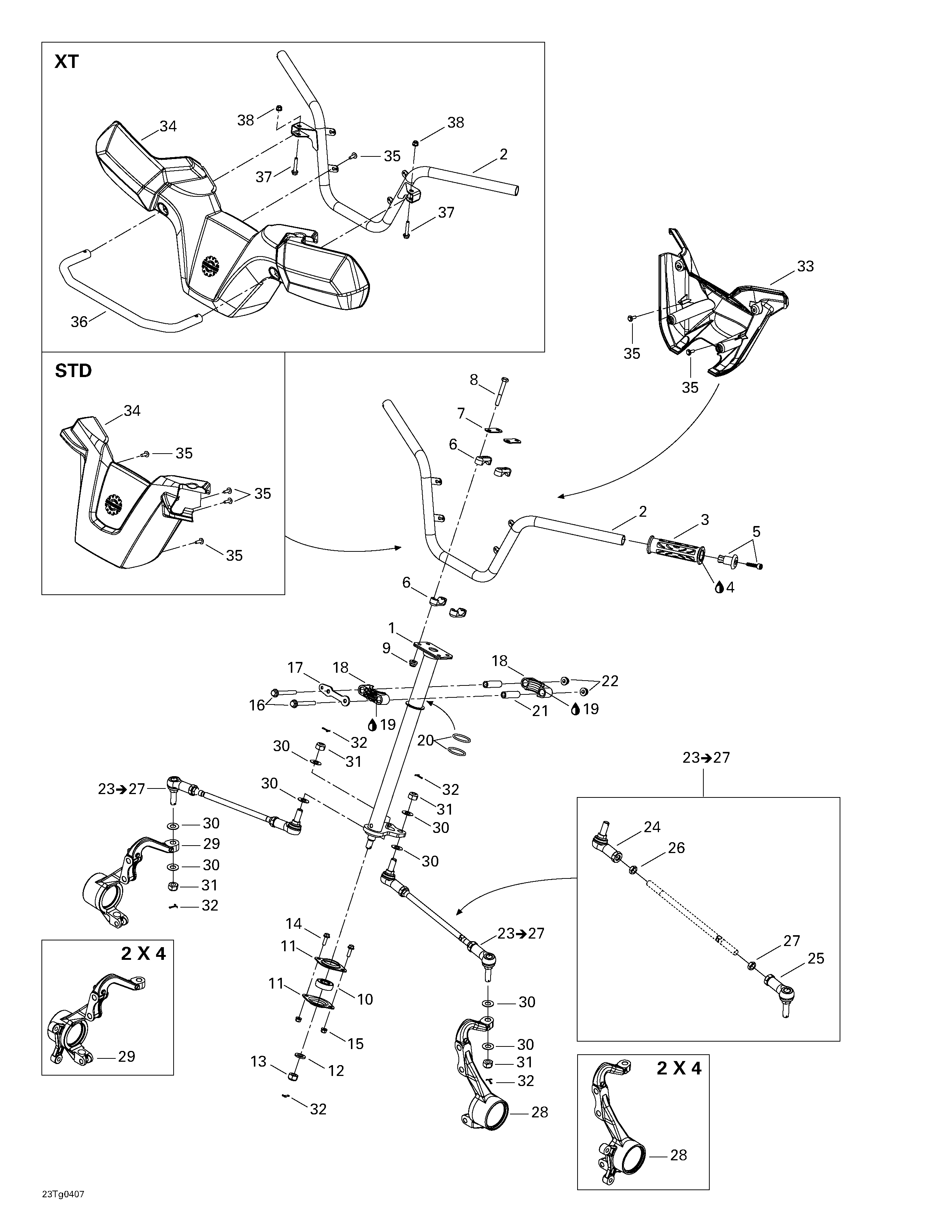

07- Steering System для BRP Outlander 330/400 STD 2 X 4 - 2004
-
№АртикулНазвание
-
1709400237 Main tubeMain tube
-
2709400138 Handle bar. STD 2 x 4, STD 4 x 4Handle bar. STD 2 x 4, STD 4 x 4
-
709400251 Handle bar. XT 4 x 4Handle bar. XT 4 x 4
-
3709400157 Hand gripHand grip
-
4293800100 Loctite 406, 7 ozLoctite 406, 7 oz
-
5709400189 End pieceEnd piece
-
6506151622 Steering supportSteering support
-
7506151196 ReinforcementReinforcement
-
8207086044 Hex screw M8 x 60Hex screw M8 x 60
-
9233281414 Hex flanged elastic nut M8Hex flanged elastic nut M8
-
10709400224 Thrust bearingThrust bearing
-
11709400152 Thrust washerThrust washer
-
12234021410 Flat washer 12 mmFlat washer 12 mm
-
13250000047 Hex flanged elastic nut M12Hex flanged elastic nut M12
-
14207562044 Hex flanged screw M6 x 20 (scotch grip)Hex flanged screw M6 x 20 (scotch grip)
-
15233261414 Hex flanged elastic nut M6Hex flanged elastic nut M6
-
16207687044 Hex flanged screw M8 x 70Hex flanged screw M8 x 70
-
17709400053 Stopper plateStopper plate
-
18709400052 Half bushingHalf bushing
-
19293550010 Synthetic grease, 400 gSynthetic grease, 400 g
-
20293300068 O-ringO-ring
-
21709400072 BushingBushing
-
22233281414 Hex flanged elastic nut M8Hex flanged elastic nut M8
-
23709400190 Tie Rod ass'y. Includes 23 - 27.Tie Rod ass'y. Includes 23 - 27.
-
24709400195 R.h. ball jointR.h. ball joint
-
25709400196 L.h. ball jointL.h. ball joint
-
26732610019 R.h. hex jam nut M12R.h. hex jam nut M12
-
27732610020 L.h. hex jam nut M12L.h. hex jam nut M12
-
28709400132 L.h. knuckle. STD 4 x 4, XT 4 x 4L.h. knuckle. STD 4 x 4, XT 4 x 4
-
709400182 L.h. knuckle. STD 2 x 4L.h. knuckle. STD 2 x 4
-
29709400133 R.h. knuckle. STD 4 x 4, XT 4 x 4R.h. knuckle. STD 4 x 4, XT 4 x 4
-
709400184 R.h. knuckle. STD 2 x 4R.h. knuckle. STD 2 x 4
-
30706200281 Hard washerHard washer
-
31250000047 Hex flanged elastic nut M12Hex flanged elastic nut M12
-
32211400013 Cotter pinCotter pin
-
33709400204 Rear steering coverRear steering cover
-
34709400205 Front steering cover. STD 2 x 4, STD 4 x 4Front steering cover. STD 2 x 4, STD 4 x 4
-
709400234 Front steering cover. XT 4 x 4Front steering cover. XT 4 x 4
-
35243141640 Hex flanged plastite screw M4.8 x 16Hex flanged plastite screw M4.8 x 16
-
36709400246 Accessories support. CAMO XT 4 x 4Accessories support. CAMO XT 4 x 4
-
709400256 Accessories support. COLOR XT 4 x 4Accessories support. COLOR XT 4 x 4
-
37207663544 Hex flanged screw M6 x 35. XT 4 x 4Hex flanged screw M6 x 35. XT 4 x 4
-
38233261414 Hex flanged elastic nut M6. XT 4 x 4Hex flanged elastic nut M6. XT 4 x 4
