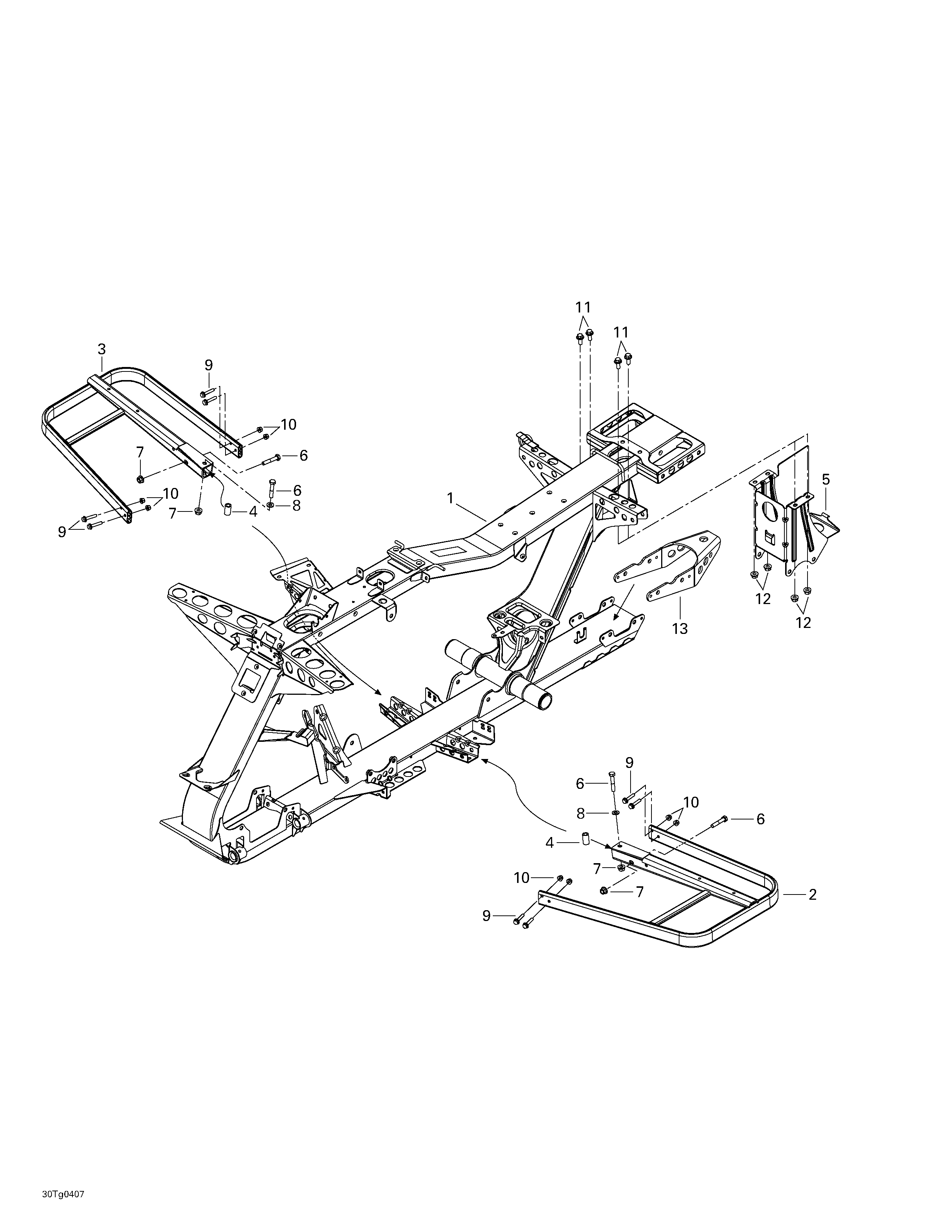

09- Frame для BRP Outlander 330/400 STD 2 X 4 - 2004
-
№АртикулНазвание
-
1705200778 FrameFrame
-
2705200526 L.h. footrestL.h. footrest
-
3705200529 R.h. footrestR.h. footrest
-
4705200645 Footrest bushingFootrest bushing
-
5705200814 Batterie supportBatterie support
-
6207685044 Hex flanged screw M8 x 50Hex flanged screw M8 x 50
-
7233081416 Hex flanged nut M8Hex flanged nut M8
-
8234082410 Flat washer 8 mmFlat washer 8 mm
-
9207663044 Hex flanged screw M6 x 30Hex flanged screw M6 x 30
-
10233261414 Hex flanged elastic nut M6Hex flanged elastic nut M6
-
11207682046 Vis hex … -paulement M8 x 20Vis hex … -paulement M8 x 20
-
12233281414 Hex flanged elastic nut M8Hex flanged elastic nut M8
-
13705200670 Trailer hookTrailer hook
