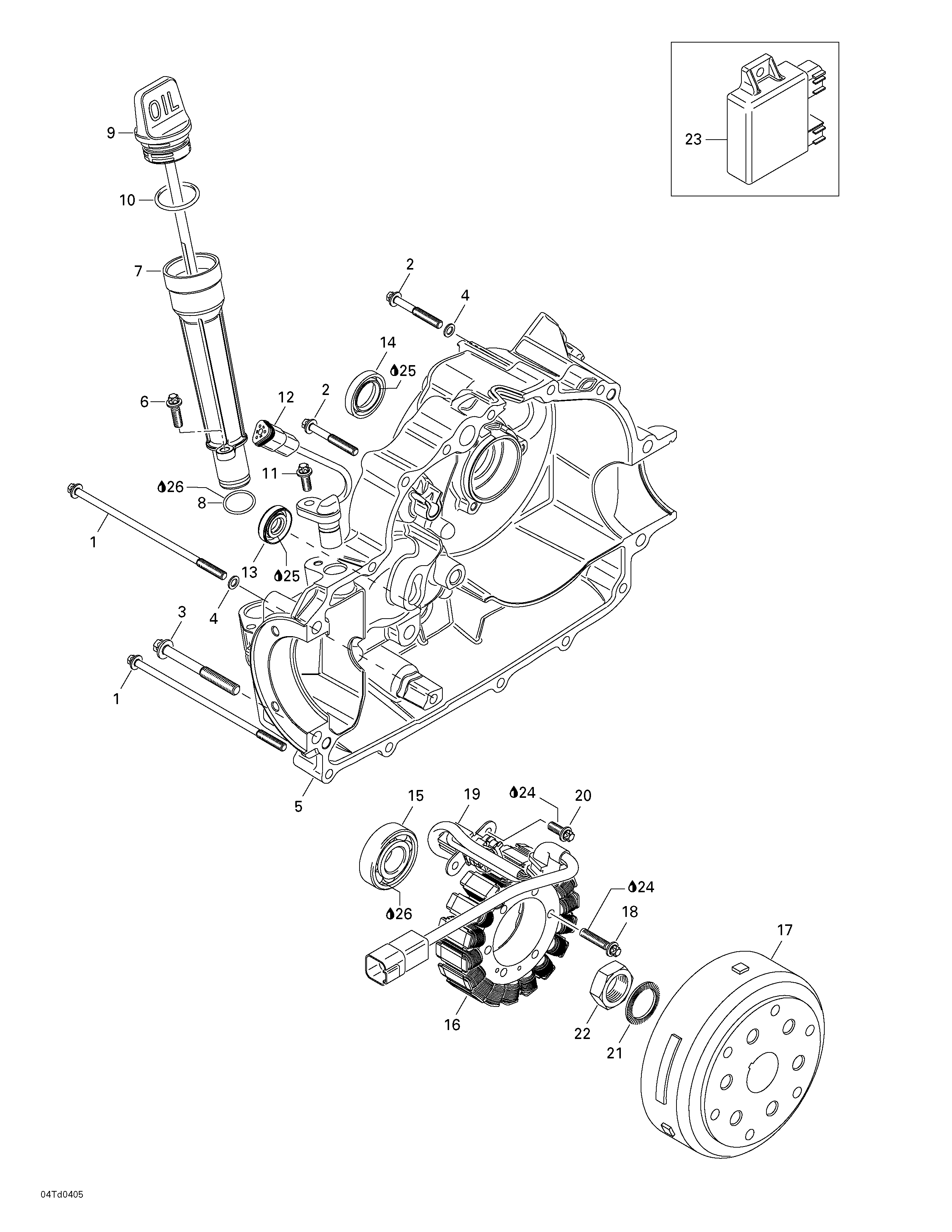

03- Magneto для BRP Quest STD - 2004
-
№АртикулНазвание
-
1420440982 Torx Flanged Screw M6 x 130Torx Flanged Screw M6 x 130
-
3420440402 Torx Flanged Screw M8 x 65Torx Flanged Screw M8 x 65
-
4404146600 Sealing WasherSealing Washer
-
6420440232 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
7420956980 Dipstick TubeDipstick Tube
-
8420630430 O-RingO-Ring
-
9420956895 DipstickDipstick
-
10420430590 O-RingO-Ring
-
11420440162 Torx Flanged Screw M6 x 16Torx Flanged Screw M6 x 16
-
12420265622 Speed SensorSpeed Sensor
-
16420296630 GeneratorGenerator
-
18420440272 Torx Screw M6 x 35Torx Screw M6 x 35
-
19420260870 Cable CoverCable Cover
-
20420440162 Torx Flanged Screw M6 x 16Torx Flanged Screw M6 x 16
-
21420845510 WasherWasher
-
22420242950 Hex. Nut M24Hex. Nut M24
-
23420265820 Electronic BoxElectronic Box
-
24293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
25293550030 Grease, Super LubeGrease, Super Lube
-
26293600039 Engine Oil 4 strokes. 5W40, 12 x 1 literEngine Oil 4 strokes. 5W40, 12 x 1 liter
