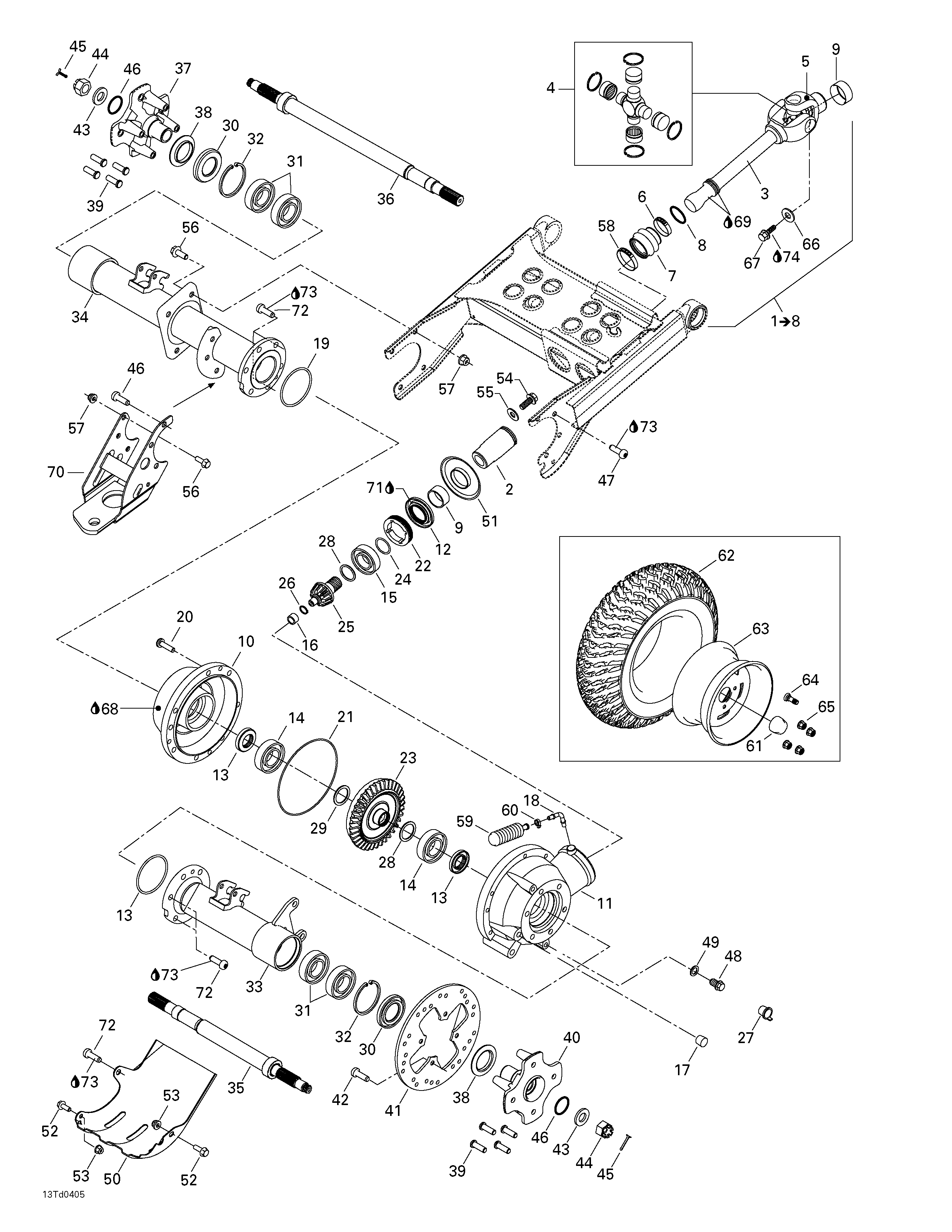

05- Drive System, Rear для BRP Quest STD - 2004
-
№АртикулНазвание
-
2705400149 Coupling sleeveCoupling sleeve
-
3705500403 Rear axle (M-650)Rear axle (M-650)
-
705500405 Rear axle (M-500)Rear axle (M-500)
-
4705500304 Unit pack kit (M-650)Unit pack kit (M-650)
-
703500002 Unit pack kit (M-500)Unit pack kit (M-500)
-
5705500371 Fix joint (M-650)Fix joint (M-650)
-
705500348 Fix joint (M-500)Fix joint (M-500)
-
6705400148 CollarCollar
-
7705400147 ProtectorProtector
-
8705500315 Sealing ringSealing ring
-
9705400036 Wear ringWear ring
-
10705500175 Differential CapDifferential Cap
-
11705500515 Differential CarrierDifferential Carrier
-
12705500248 Oil sealOil seal
-
13705500255 Oil sealOil seal
-
14705500259 Ball bearingBall bearing
-
15705500260 Ball bearingBall bearing
-
16705500261 Needle bearingNeedle bearing
-
17705500245 Drain plugDrain plug
-
18705500262 Vent valveVent valve
-
19705500263 O-ringO-ring
-
20705500264 ScrewScrew
-
21705500265 SealSeal
-
22705500266 NutNut
-
23705500223 Gear 36 teethGear 36 teeth
-
24705500267 O-ringO-ring
-
25705500268 Gear 10 teethGear 10 teeth
-
26705500269 Retaining ringRetaining ring
-
27705500516 Protection plugProtection plug
-
28703500049 Pinion gear shim kitPinion gear shim kit
-
705500075 Pinion gear shimPinion gear shim
-
29703500050 Differential Shim KitDifferential Shim Kit
-
705500079 Differential shimDifferential shim
-
30705500099 Oil sealOil seal
-
31705500251 Ball bearingBall bearing
-
32705500249 Retaining ringRetaining ring
-
33705500250 R.H. axle tubeR.H. axle tube
-
34705500182 LH axle tubeLH axle tube
-
35705500183 R.H. axle ass'yR.H. axle ass'y
-
36705500184 LH axle ass'yLH axle ass'y
-
37705500254 LH wheel hub ass'yLH wheel hub ass'y
-
38705500100 Wear ringWear ring
-
39250300020 Wheel studWheel stud
-
40705500451 R.H. rear wheel hub ass'yR.H. rear wheel hub ass'y
-
41705600343 Brake discBrake disc
-
42235381646 Screw M8 x 16Screw M8 x 16
-
43250200019 WasherWasher
-
44232291413 Hex. Castellated nut M18Hex. Castellated nut M18
-
45250400016 Cotter pinCotter pin
-
46705500271 O-ringO-ring
-
47250000085 Axle tube screwAxle tube screw
-
48705500504 Fill level plugFill level plug
-
49705500506 Copper WasherCopper Washer
-
50705500185 Differencial protectionDifferencial protection
-
51705500214 ProtectorProtector
-
52207681644 Hex. flanged screw M8 x 16Hex. flanged screw M8 x 16
-
53233181414 Hex. flanged nut M8Hex. flanged nut M8
-
54250000060 Hex. flanged screw M10 x 16Hex. flanged screw M10 x 16
-
55250200014 Flat washerFlat washer
-
56207602544 Hex. flanged screw M10 x 25Hex. flanged screw M10 x 25
-
57233201414 Hex. elastic flanged nut M10Hex. elastic flanged nut M10
-
58293650138 Oetiker clampOetiker clamp
-
59705400066 Rubber bellowRubber bellow
-
60293750001 Tie-rap 94 mmTie-rap 94 mm
-
61705400012 Wheel capWheel cap
-
62705500385 Rear tireRear tire
-
63705500239 Rear rim STD (grey). Quest Std.Rear rim STD (grey). Quest Std.
-
705500424 Rear rim (black)Rear rim (black)
-
705500339 Rear rim XT (chrome). Quest XT.Rear rim XT (chrome). Quest XT.
-
64705400193 Rim valveRim valve
-
65705400013 Hex. nutHex. nut
-
66211200041 WasherWasher
-
67207681686 Hex. flanged screw M8 x 16Hex. flanged screw M8 x 16
-
68293600011 Redline Pump Oil, 75W90, 12 x 6 ozRedline Pump Oil, 75W90, 12 x 6 oz
-
69293550019 Grease, 60 gGrease, 60 g
-
70705500244 Trailer hookTrailer hook
-
71293550010 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
72250000085 Screw M10 x 30Screw M10 x 30
-
73413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
74293800005 Loctite 271, 10 mlLoctite 271, 10 ml
