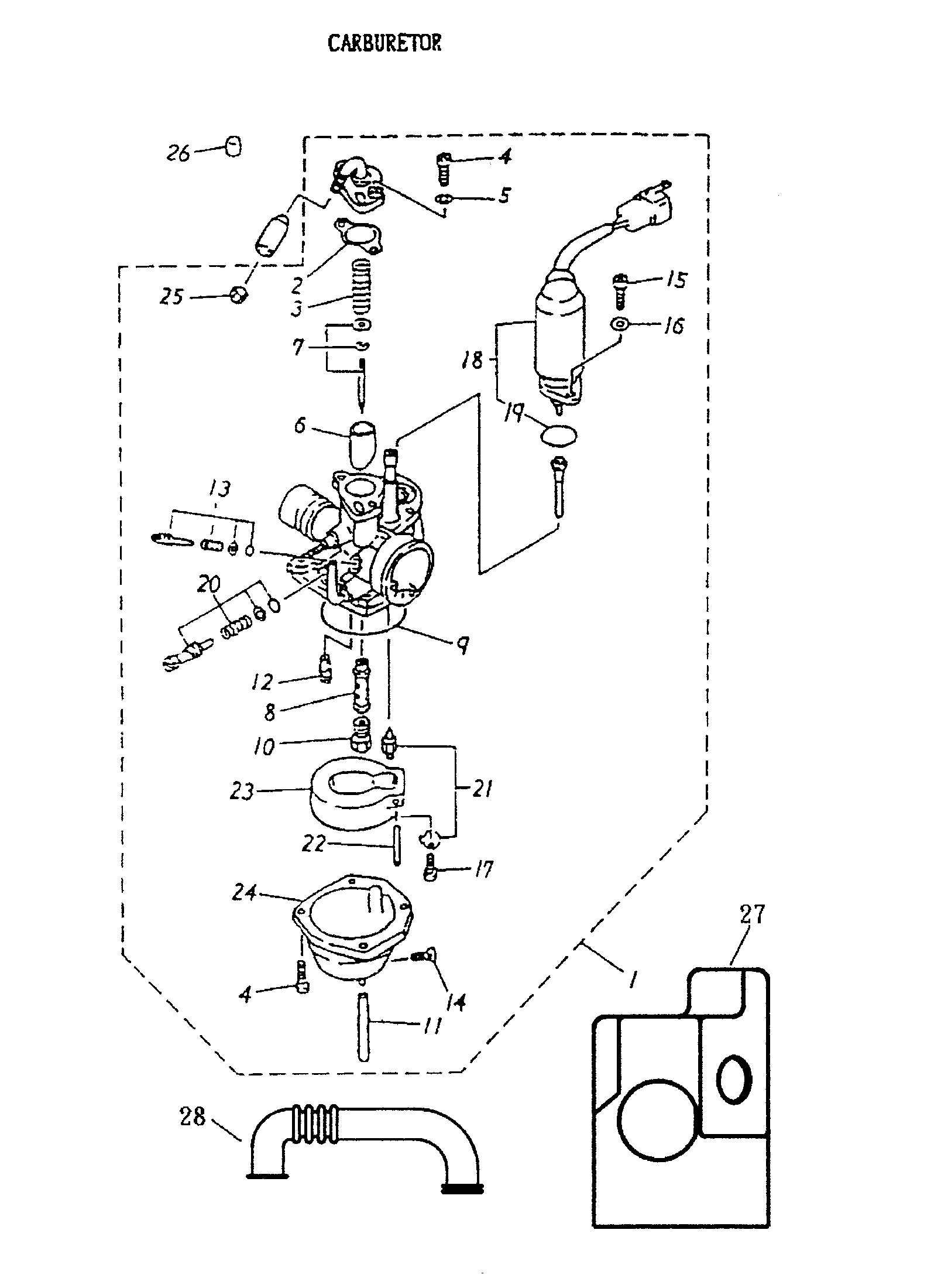

02- Carburetor для BRP Mini DS 50 2-strokes - 2005
-
№АртикулНазвание
-
1A1610011600A Carburetor Ass'yCarburetor Ass'y
-
2A16101116000 Carburetor GasketCarburetor Gasket
-
3A16102116000 Throttle Valve SpringThrottle Valve Spring
-
4A9350004014 Pan Phillips Bolt M4 x 14Pan Phillips Bolt M4 x 14
-
5A941110407010 Spring WasherSpring Washer
-
6A16103116000 Throttle ValveThrottle Valve
-
7A16104116000 Needle SetNeedle Set
-
8A16105116000 Needle NozzleNeedle Nozzle
-
9A16106116000 Float Chamber SealFloat Chamber Seal
-
10A16108116000 Main Nozzle (75)Main Nozzle (75)
-
11A16109116000 Over Flow TubeOver Flow Tube
-
12A16110116000 Pilot JetPilot Jet
-
13A16115116000 Air Adjust Screw SetAir Adjust Screw Set
-
14A16111116000 Drain PlugDrain Plug
-
15A9350004008 Pan Head Phillips Bolt M4 x 8Pan Head Phillips Bolt M4 x 8
-
16A941110406510 Spring WasherSpring Washer
-
17A9350003008 Pan Phillips Bolt M3 x 6Pan Phillips Bolt M3 x 6
-
18A17215116000 Plunger StarterPlunger Starter
-
19A91314116000 Oil RingOil Ring
-
20A16114116000 Throttle Screw SetThrottle Screw Set
-
21A1611711600A Needle Valve Ass'yNeedle Valve Ass'y
-
22A16119116000 Float PinFloat Pin
-
23A16118116000 FloatFloat
-
24A16107116000 Float ChamberFloat Chamber
-
25A16113116000 Cable Adjust NutCable Adjust Nut
-
26A42615145001 Purge Hole PlugPurge Hole Plug
-
27A16140116000 Carburator ShroudCarburator Shroud
-
28A11211145000 Tube BreatherTube Breather
