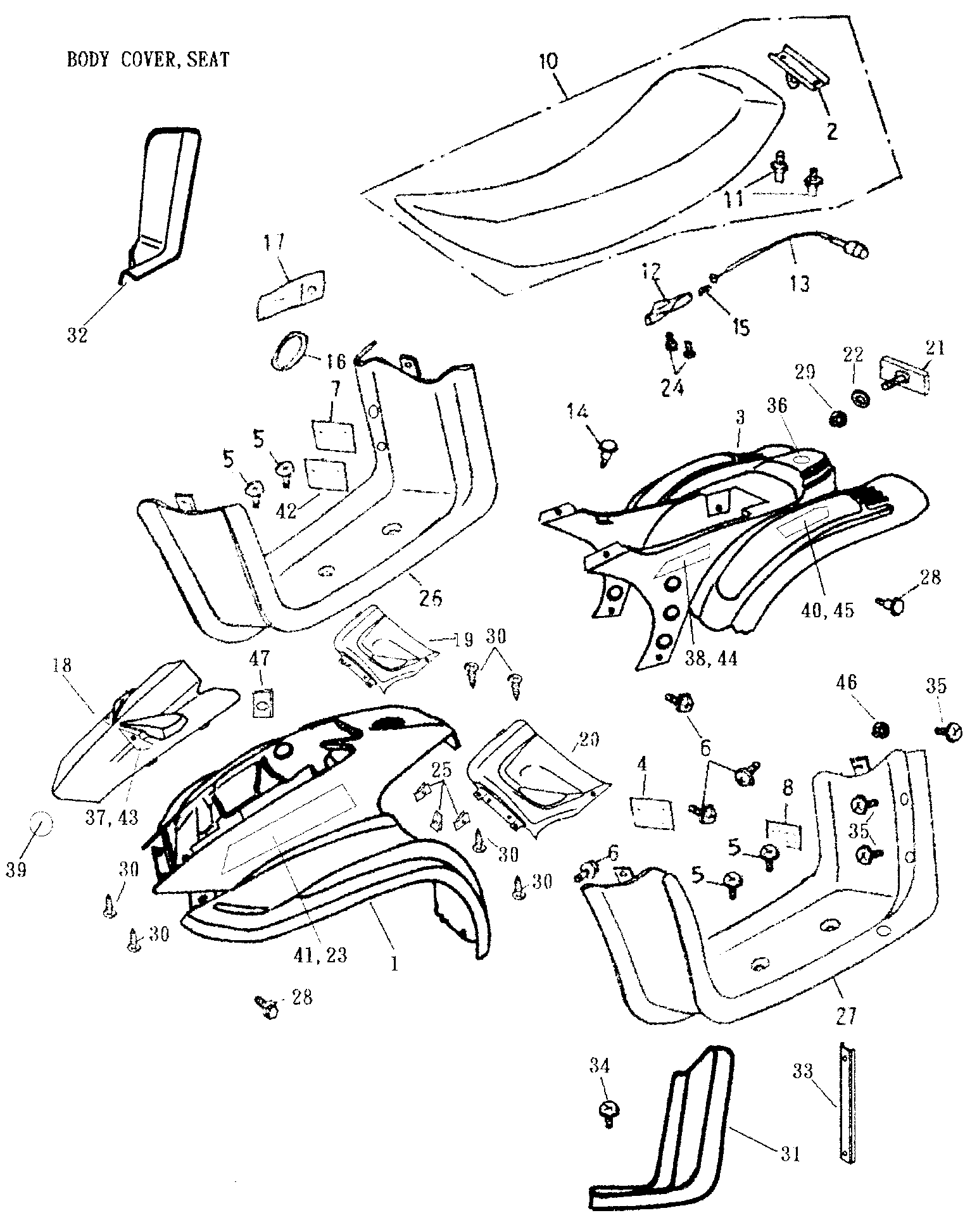

09- Body Cover, Seat для BRP Mini DS 50 2-strokes - 2005
-
№АртикулНазвание
-
1A64301166000RD Front CoverFront Cover
-
2A77201145000 Seat BracketSeat Bracket
-
3A83400166000RD Rear CoverRear Cover
-
4704900302 Warning Decal (Atv General)Warning Decal (Atv General)
-
5A9370106015S Pan Head Phillips Bolt M6 x 15Pan Head Phillips Bolt M6 x 15
-
6A9380006020S Pan Head Phillips Bolt M6 x 20Pan Head Phillips Bolt M6 x 20
-
7704900300 Warning Label. (Under 6, English)Warning Label. (Under 6, English)
-
8704900005 Warning Label. (Passanger, English)Warning Label. (Passanger, English)
-
9A903440600A U Plate Nut (6 mm)U Plate Nut (6 mm)
-
10A77200166000 Seat Ass'ySeat Ass'y
-
11A77203145000 Seat BoltSeat Bolt
-
12A77230145000 Seat Lock Ass'ySeat Lock Ass'y
-
13A77212145000 Seat Release CableSeat Release Cable
-
14A901110601218C Ladder Bolt (6 x 12.5 x 3.5)Ladder Bolt (6 x 12.5 x 3.5)
-
15A77213145000 Reset SpringReset Spring
-
16A91350145000 Rubber StripRubber Strip
-
17A50120101000 Tool BagTool Bag
-
18A64302166000BK Front VisorFront Visor
-
19A83504166000BK R.H. Body Cover TrimR.H. Body Cover Trim
-
20A83604166000BK L.H. Body Cover TrimL.H. Body Cover Trim
-
21A33741133000 ReflectorReflector
-
22A941010615010 Plain Washer (6 x 15 x 1)Plain Washer (6 x 15 x 1)
-
23715900008 Front Cover Right Side StickerFront Cover Right Side Sticker
-
24A960000601210G Hex. Washer Face Bolt M6 x 12Hex. Washer Face Bolt M6 x 12
-
25A903440500A U Plate Nut (4 mm)U Plate Nut (4 mm)
-
26A64312166000 R.H. Floor PanelR.H. Floor Panel
-
27A64313166000 L.H. Floor PanelL.H. Floor Panel
-
28A901110601418G Ladder BoltLadder Bolt
-
29A9035006000 Nylon Nut M6Nylon Nut M6
-
30A9390305012 Tapping Screw Truss Head Phillips M5 x 12Tapping Screw Truss Head Phillips M5 x 12
-
31A64331166000 L. H. Floor Panel Protect CoverL. H. Floor Panel Protect Cover
-
32A64332166000 R.H. Floor Panel Protect CoverR.H. Floor Panel Protect Cover
-
33A64333166000 Floor Protect Cover BracketFloor Protect Cover Bracket
-
34A9370106037G Pan Flat Head Phillips Bolt M6 x 37Pan Flat Head Phillips Bolt M6 x 37
-
35A9370106015G Pan Flat Head Phillips Bolt M6 x 15Pan Flat Head Phillips Bolt M6 x 15
-
36516000983 Bombardier LogoBombardier Logo
-
37A87700172000 Front Cover Trim KitFront Cover Trim Kit
-
38715900012 Rear Cover Front Right Side StickerRear Cover Front Right Side Sticker
-
39516000983 Bombardier Logo DecalBombardier Logo Decal
-
40715900016 LH Bombardier DecalLH Bombardier Decal
-
41715900009 LH Logo DecalLH Logo Decal
-
42704900299 Down Right Sticker. Warning (Tire Pressure, English)Down Right Sticker. Warning (Tire Pressure, English)
-
43A87700172000 Front Cover TrimFront Cover Trim
-
44715900013 Rear Cover Front Left Side StickerRear Cover Front Left Side Sticker
-
45715900015 Decal KitRH Bombardier DecalDecal KitRH Bombardier Decal
-
46233261414 Hex. Flanged Nut With Serration M6Hex. Flanged Nut With Serration M6
-
47A54137166000 Bracket of CDIBracket of CDI
-
48A87700166000 Color Sticker Set (8 pcs)Color Sticker Set (8 pcs)
