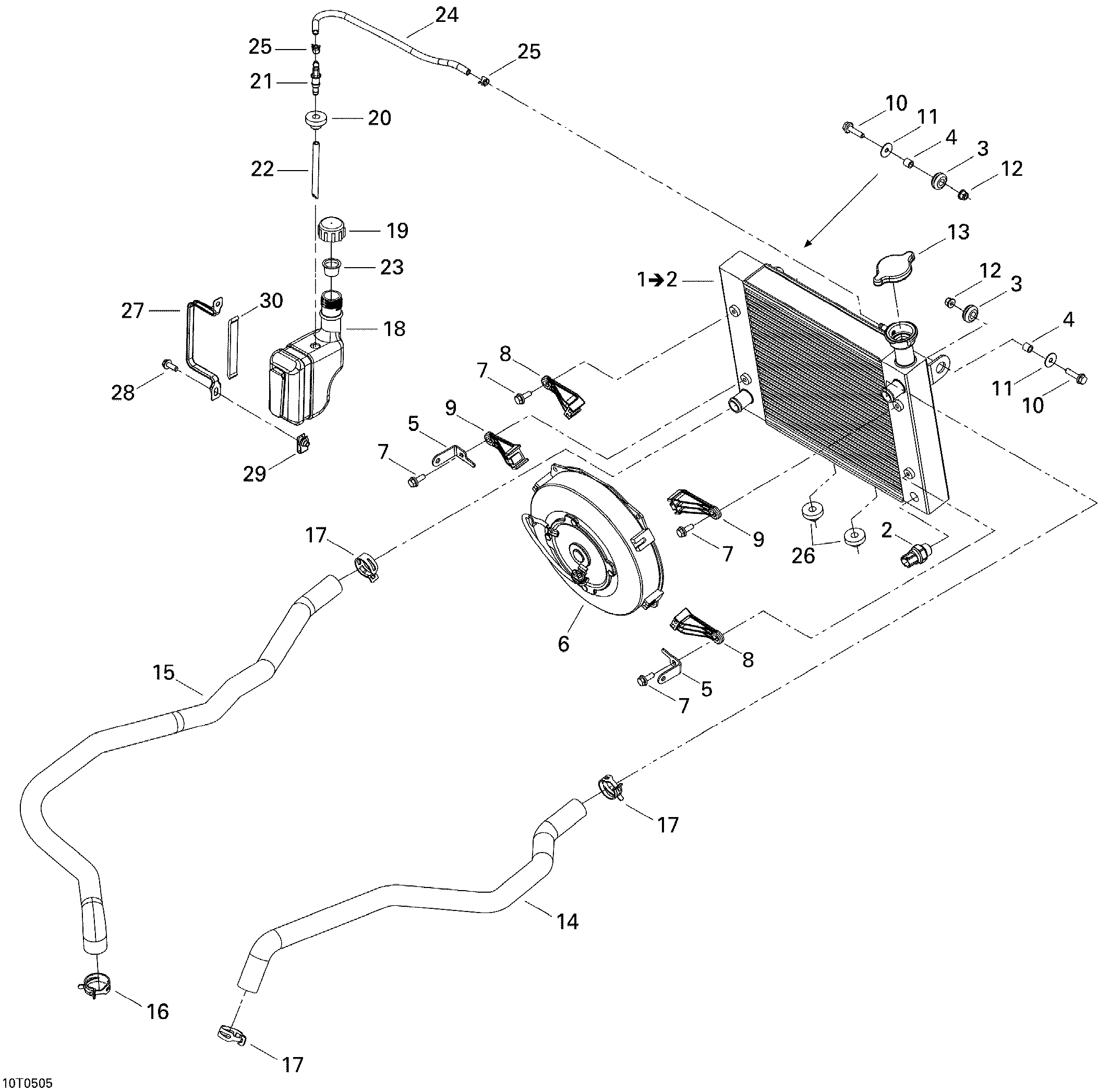

01- Cooling System для BRP Outlander 330/400 STD 4 X 4 - 2005
-
№АртикулНазвание
-
1709200072 Radiator Ass'YRadiator Ass'Y
-
2709200089 Temperature SensorTemperature Sensor
-
3293720053 GrommetGrommet
-
4293900045 BushingBushing
-
5705000677 Inner Fender SupportInner Fender Support
-
6709200075 Fan Ass'YFan Ass'Y
-
7207561644 Hex Flanged Screw M6 X 16, Scotch GripHex Flanged Screw M6 X 16, Scotch Grip
-
8709200076 Fan SupportFan Support
-
9709200095 Fan SupportFan Support
-
10207662544 Hex Flanged Screw M6 X25Hex Flanged Screw M6 X25
-
11391302000 Flat WasherFlat Washer
-
12233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
13709200033 Pressure CapPressure Cap
-
14709200077 Radiator Inlet HoseRadiator Inlet Hose
-
15709200123 Radiator Outlet HoseRadiator Outlet Hose
-
16293650108 Norma Spring ClampNorma Spring Clamp
-
17293650109 Norma Spring ClampNorma Spring Clamp
-
18709200099 Coolant TankCoolant Tank
-
19709200009 Tank CapTank Cap
-
20570135100 GrommetGrommet
-
21414580600 Elbow Male ConnectorElbow Male Connector
-
22415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
23709200034 Protection CapProtection Cap
-
24415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
25414554800 Universal Spring ClampUniversal Spring Clamp
-
26570135100 GrommetGrommet
-
27709200080 Radiator AnchorRadiator Anchor
-
28210261680 Hex Flanged Forming Screw M6 X 16Hex Flanged Forming Screw M6 X 16
-
29250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
30293250087 GasketGasket
