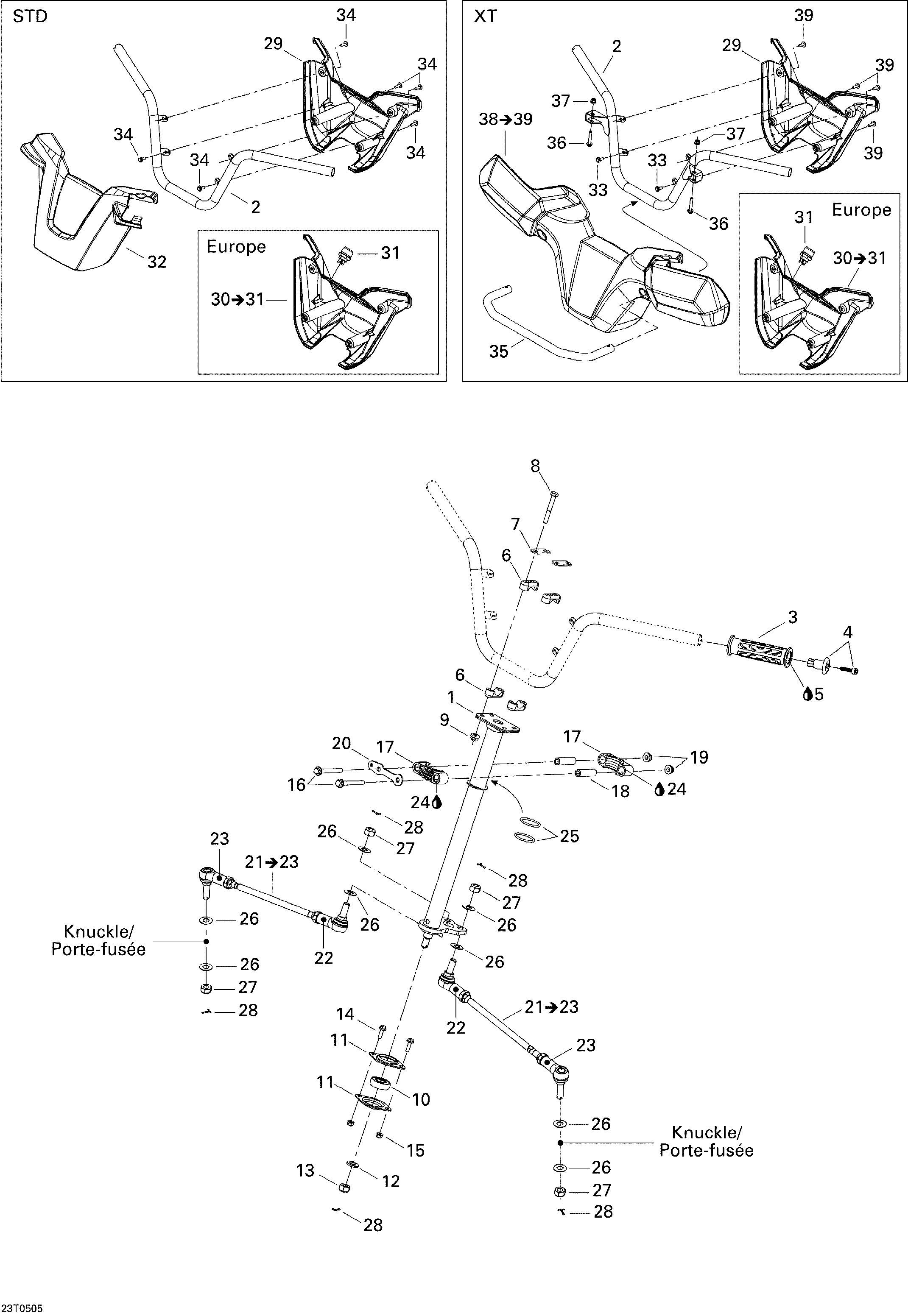

07- Steering System для BRP Outlander 330/400 STD 4 X 4 - 2005

№

Артикул

Название
1

709400237 Main Tube

Main Tube

0 ₽
2

709400138 Handle Bar. STD

Handle Bar. STD

0 ₽
2

709400251 Handle Bar. XT

Handle Bar. XT

6 710 ₽
3

709400157 Grip, Black

Grip, Black

1 130 ₽
4

709400189 End Piece

End Piece

530 ₽
5

293800100 Loctite 406, 7 Oz

Loctite 406, 7 Oz

4 470 ₽
6

506151622 Steering Support

Steering Support

0 ₽
7

506151196 Reinforcement

Reinforcement

0 ₽
8

207086046 Hex Screw M8 X 60

Hex Screw M8 X 60

980 ₽
9

233281416 Elastic Flange Nut M8

Elastic Flange Nut M8

540 ₽
10

709400224 Thrust Bearing

Thrust Bearing

0 ₽
11

709400152 Thrust Washer

Thrust Washer

3 540 ₽
12

234021410 Flat Washer 12 mm

Flat Washer 12 mm

270 ₽
13

250000047 Hex Flanged Elastic Nut M12

Hex Flanged Elastic Nut M12

670 ₽
14

207562044 Flanged Screw M6 X 20, Scotch Grip

Flanged Screw M6 X 20, Scotch Grip

0 ₽
15

233261414 Hex Flanged Elastic Nut M6

Hex Flanged Elastic Nut M6

490 ₽
16

207687044 Hex Flanged Screw M8 X 70

Hex Flanged Screw M8 X 70

2 610 ₽
17

709400052 Half Bushing

Half Bushing

0 ₽
18

709400072 Bushing

Bushing

940 ₽
19

233281414 Hex Flanged Elastic Nut M8

Hex Flanged Elastic Nut M8

490 ₽
20

709400053 Stopper Plate

Stopper Plate

1 220 ₽
21

709400190 Tie Rod Ass'Y. Includes 21 to 23

Tie Rod Ass'Y. Includes 21 to 23

0 ₽
22

709400195 RH Ball Joint

RH Ball Joint

0 ₽
23

709400196 LH Ball Joint

LH Ball Joint

0 ₽
24

293550010 Synthetic Grease, 400 G

Synthetic Grease, 400 G

14 600 ₽
25

293300068 O-Ring

O-Ring

2 260 ₽
26

706200281 Hard Washer

Hard Washer

0 ₽
27

250100045 Nut M12

Nut M12

330 ₽
28

211400013 Cotter Pin

Cotter Pin

120 ₽
29

709400313 Rear Steering Cover, Black

Rear Steering Cover, Black

8 720 ₽
30

709400335 Rear Cover Ass'y. Includes 30 to 31 (Europe)

Rear Cover Ass'y. Includes 30 to 31 (Europe)

6 440 ₽
31

415101200 Push Button

Push Button

3 220 ₽
32

709400386 Front Couvre-guidon, Black. STD

Front Couvre-guidon, Black. STD

2 190 ₽
33

250000146 Truss Head Torx Screw K50 X 16. XT

Truss Head Torx Screw K50 X 16. XT

260 ₽
34

250000146 Truss Head Torx Screw K50 X 16. STD

Truss Head Torx Screw K50 X 16. STD

260 ₽
35

709400246 Accessories Support. XT (Camo)

Accessories Support. XT (Camo)

3 100 ₽
35

709400256 Accessories Support. XT

Accessories Support. XT

3 640 ₽
36

207663544 Hex Flanged Screw M6 X 35. XT

Hex Flanged Screw M6 X 35. XT

320 ₽
37

233261414 Hex Flanged Elastic Nut M6. XT

Hex Flanged Elastic Nut M6. XT

490 ₽
38

703100132 Handle Guard Kit. Includes 38 to 39 / XT

Handle Guard Kit. Includes 38 to 39 / XT

0 ₽
39

250000146 Truss Head Torx Screw K50 X 16. XT

Truss Head Torx Screw K50 X 16. XT

260 ₽
