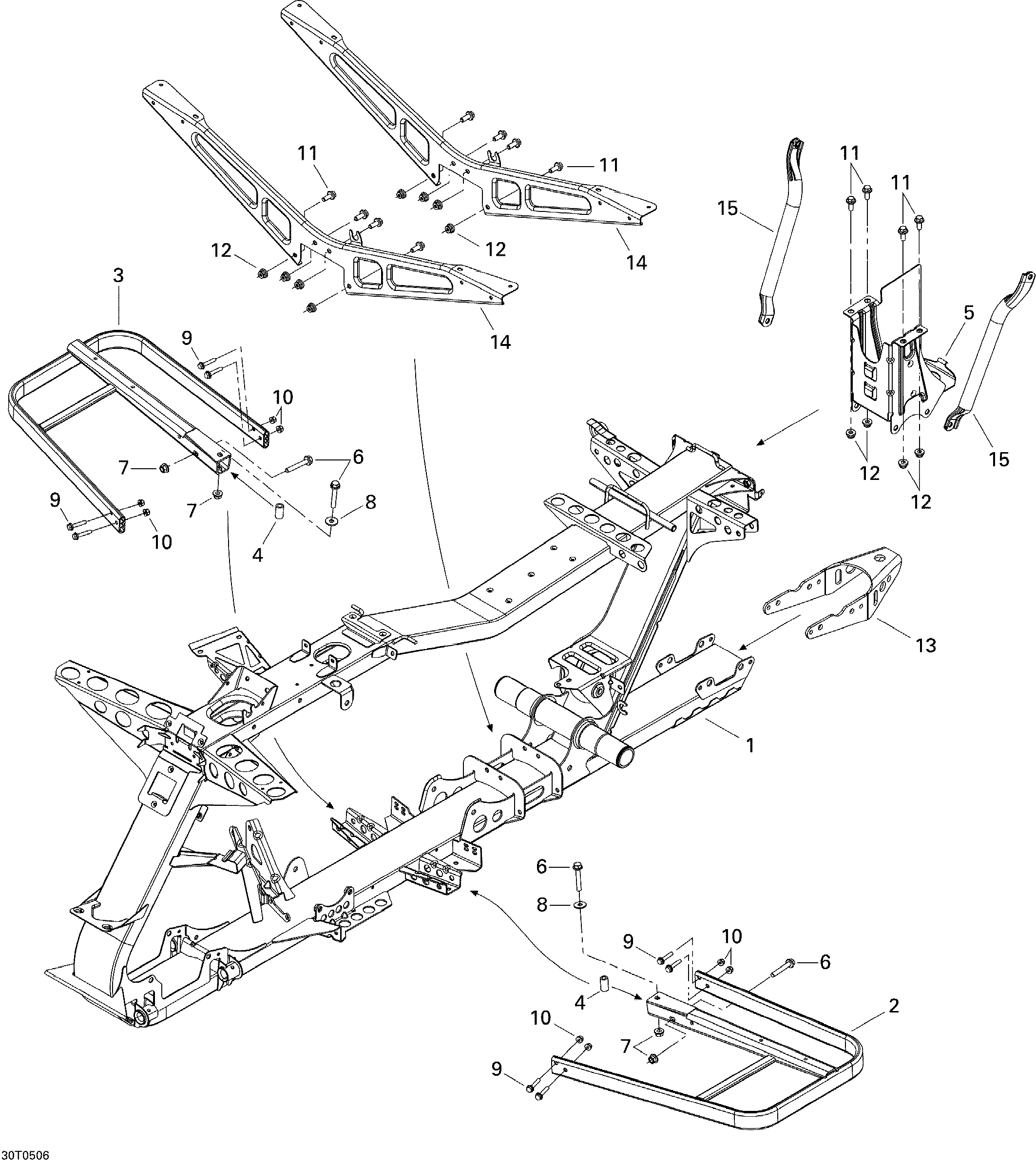

09- Frame для BRP Outlander MAX 400 - 2005
-
№АртикулНазвание
-
1705201185 Frame, BlackFrame, Black
-
2705200526 LH FootrestLH Footrest
-
3705200529 RH FootrestRH Footrest
-
4705200645 Footrest BushingFootrest Bushing
-
5705200939 Battery SupportBattery Support
-
6207685044 Hex Flanged Screw M8 X 50Hex Flanged Screw M8 X 50
-
7233081416 Hex Flanged Nut M8Hex Flanged Nut M8
-
8234082410 Flat Washer 8 mmFlat Washer 8 mm
-
9207663044 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
10233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
11207682044 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
12233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
13705200839 Trailer Hook, BlackTrailer Hook, Black
-
14705200812 Rear Diagonal BraceRear Diagonal Brace
-
15705200813 Rear BraceRear Brace
