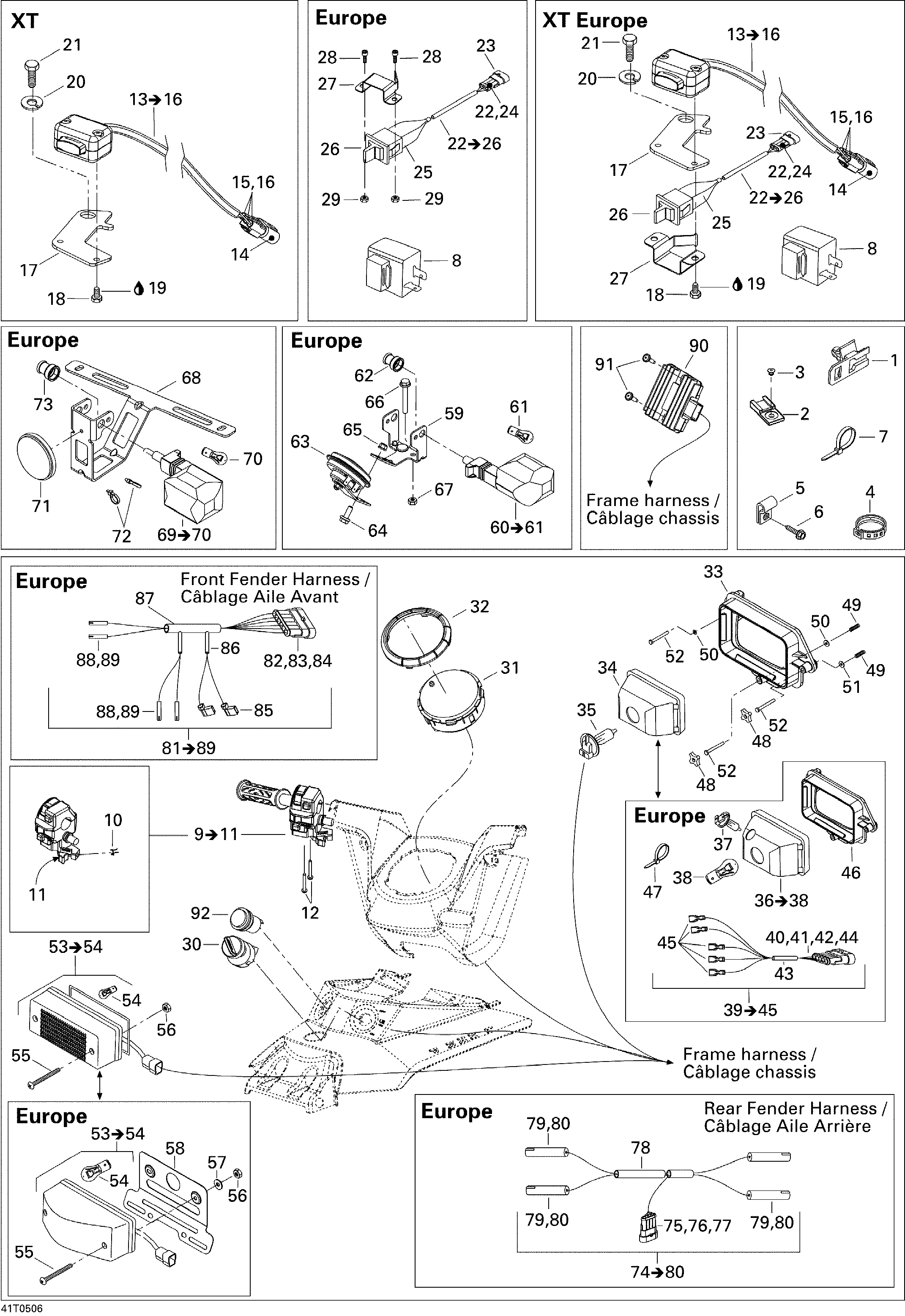

10- Electrical Accessories для BRP Outlander MAX 400 - 2005
-
№АртикулНазвание
-
1515175283 Housing SupportHousing Support
-
2270000141 ClipClip
-
3390402400 Pop-rivet 3/16''Pop-rivet 3/16''
-
4293650100 Oetiker ClampOetiker Clamp
-
5705600311 ClampClamp
-
6210261680 Hex Flanged Forming Screw M6 X 16Hex Flanged Forming Screw M6 X 16
-
7293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
7293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
7293750009 Tie-Rap 160 mmTie-Rap 160 mm
-
7414115200 Tie-RapTie-Rap
-
7293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
8710000581 Flasher Unit. EuropeFlasher Unit. Europe
-
9710000311 Multi-Fonction Handle. Includes 9 To 11Multi-Fonction Handle. Includes 9 To 11
-
10710000631 ClipClip
-
11710000632 Choke LeverChoke Lever
-
12205053588 Socket Screw M5 X 35Socket Screw M5 X 35
-
13710000827 Winch Interrupter. XT , Includes 13 To 16Winch Interrupter. XT , Includes 13 To 16
-
14278000281 Female Terminal Housing (3 Circuits). XTFemale Terminal Housing (3 Circuits). XT
-
15278000222 Female Terminal. XTFemale Terminal. XT
-
16278001065 Wire Seal. XTWire Seal. XT
-
17710000755 Winch Interrupter Support. XTWinch Interrupter Support. XT
-
18250000153 Hex Cap Screw 6-32 X 1/4''. XTHex Cap Screw 6-32 X 1/4''. XT
-
18250000224 Hex Screw. Europe XTHex Screw. Europe XT
-
19293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
20234101601 Helicoidal Lock Washer M10. XTHelicoidal Lock Washer M10. XT
-
21250000029 Hex Screw M10 X 16. XTHex Screw M10 X 16. XT
-
22710000610 Flasher Switch. Europe , Includes 22 To 26Flasher Switch. Europe , Includes 22 To 26
-
22409012900 Male Terminal. EuropeMale Terminal. Europe
-
23710000568 Housing. EuropeHousing. Europe
-
24278001013 Wire Seal. EuropeWire Seal. Europe
-
25515175332 Vinyl Tubing (low Temperature). EuropeVinyl Tubing (low Temperature). Europe
-
25710000482 Shrink Tubing. EuropeShrink Tubing. Europe
-
26710000555 Flasher Switch. EuropeFlasher Switch. Europe
-
27710000753 Switch Support. STD EuropeSwitch Support. STD Europe
-
28205041044 Socket Head Screw M4 X 10. STD EuropeSocket Head Screw M4 X 10. STD Europe
-
29232541414 Hex Flanged Elastic Nut M4. STD EuropeHex Flanged Elastic Nut M4. STD Europe
-
30710000238 Ignition SwitchIgnition Switch
-
30715900019 Blank KeyBlank Key
-
31710000805 SpeedometerSpeedometer
-
31710000761 Speedometer. EuropeSpeedometer. Europe
-
32710000353 Trim RingTrim Ring
-
33710000236 RH Headlight SupportRH Headlight Support
-
33710000277 LH Headlight SupportLH Headlight Support
-
34705000284 Lamp HousingLamp Housing
-
35710000176 BulbBulb
-
36710000593 Front Light. Europe , Includes 36 To 38Front Light. Europe , Includes 36 To 38
-
37710000663 Bulb. EuropeBulb. Europe
-
38710000665 Bulb (headlight). EuropeBulb (headlight). Europe
-
39710000763 Light Harness. Europe , Includes 39 To 45Light Harness. Europe , Includes 39 To 45
-
40409012900 Terminal-male. EuropeTerminal-male. Europe
-
41710000779 Housing. EuropeHousing. Europe
-
42278001013 Wire Seal. EuropeWire Seal. Europe
-
43515175332 Vinyl Tubing (low Temperature). EuropeVinyl Tubing (low Temperature). Europe
-
44409205600 Clip. EuropeClip. Europe
-
45710000764 Female Terminal. EuropeFemale Terminal. Europe
-
46710000236 RH Headlight Support. EuropeRH Headlight Support. Europe
-
46710000277 LH Headlight Support. EuropeLH Headlight Support. Europe
-
47293750001 Tie-Rap 94 mm. EuropeTie-Rap 94 mm. Europe
-
48572106600 HandleHandle
-
49710000285 SpringSpring
-
50234042600 Flat Washer 4 mmFlat Washer 4 mm
-
51234040600 Flat Washer 4 mmFlat Washer 4 mm
-
52250000008 Hex Screw K40 X 40Hex Screw K40 X 40
-
53710000711 Tail Light Housing Ass'y. Includes 53 To 54Tail Light Housing Ass'y. Includes 53 To 54
-
53710000760 Tail Light. Europe , Includes 53 To 54Tail Light. Europe , Includes 53 To 54
-
55208656091 Pan Head Phillips Screw M5 X 60Pan Head Phillips Screw M5 X 60
-
56233251414 Hex Flanged Elastic Nut M5Hex Flanged Elastic Nut M5
-
56232061600 Hexagonal Nut M6. EuropeHexagonal Nut M6. Europe
-
57224061121 Flat Washer. EuropeFlat Washer. Europe
-
58705001668 Plate Support. EuropePlate Support. Europe
-
59705001734 Bracket. EuropeBracket. Europe
-
60710000547 Flasher. Europe , Includes 60 To 61Flasher. Europe , Includes 60 To 61
-
60710000546 Flasher. Europe , Includes 60 To 61Flasher. Europe , Includes 60 To 61
-
61710000662 Flasher Bulb. EuropeFlasher Bulb. Europe
-
62710000765 Protection Cap. EuropeProtection Cap. Europe
-
63710000783 Horn. EuropeHorn. Europe
-
64207661644 Hex Flanged Screw M6 X 16. EuropeHex Flanged Screw M6 X 16. Europe
-
65233261414 Hex Flanged Elastic Nut M6. EuropeHex Flanged Elastic Nut M6. Europe
-
66207664544 Flanged Hex Screw M6 X 45. EuropeFlanged Hex Screw M6 X 45. Europe
-
67233261414 Hex Flanged Elastic Nut M6. EuropeHex Flanged Elastic Nut M6. Europe
-
68710000768 Flasher Bracket RH. EuropeFlasher Bracket RH. Europe
-
68710000808 Flasher Bracket LH. EuropeFlasher Bracket LH. Europe
-
69710000547 Flasher. Europe , Includes 69 To 70Flasher. Europe , Includes 69 To 70
-
69710000546 Flasher. Europe , Includes 69 To 70Flasher. Europe , Includes 69 To 70
-
70710000662 Flasher Bulb. EuropeFlasher Bulb. Europe
-
71710000775 Reflector. EuropeReflector. Europe
-
72293750001 Tie-Rap 94 mm. EuropeTie-Rap 94 mm. Europe
-
73710000765 Protection Cap. EuropeProtection Cap. Europe
-
74710000813 Rear Fender Harness. Europe , Includes 74 To 80Rear Fender Harness. Europe , Includes 74 To 80
-
75409012900 Male Terminal. EuropeMale Terminal. Europe
-
76710000576 Housing (4circuits). EuropeHousing (4circuits). Europe
-
77278001013 Wire Seal. EuropeWire Seal. Europe
-
78515175442 Tubing 6 mm. EuropeTubing 6 mm. Europe
-
79278001007 Insulated Sheet. EuropeInsulated Sheet. Europe
-
80710000421 Female Terminal. EuropeFemale Terminal. Europe
-
81710000814 Front Fender Harness. Europe , Includes 81 To 89Front Fender Harness. Europe , Includes 81 To 89
-
82409012900 Male Terminal. EuropeMale Terminal. Europe
-
83710000815 Housing (6 Circuits). EuropeHousing (6 Circuits). Europe
-
84278001013 Wire Seal. EuropeWire Seal. Europe
-
85409010300 Female Terminal. EuropeFemale Terminal. Europe
-
86515175442 Tubing 6 mm. EuropeTubing 6 mm. Europe
-
87409901700 Tubing 9 mm. EuropeTubing 9 mm. Europe
-
88278001007 Insulated Sheet. EuropeInsulated Sheet. Europe
-
89710000421 Female Terminal. EuropeFemale Terminal. Europe
-
90710000908 Volt Regulator. For replacement, refer to service bulletin 2005-5Volt Regulator. For replacement, refer to service bulletin 2005-5
-
91210262080 Hex Forming ScrewHex Forming Screw
-
92861507200 Outlet (12 Volts)Outlet (12 Volts)
