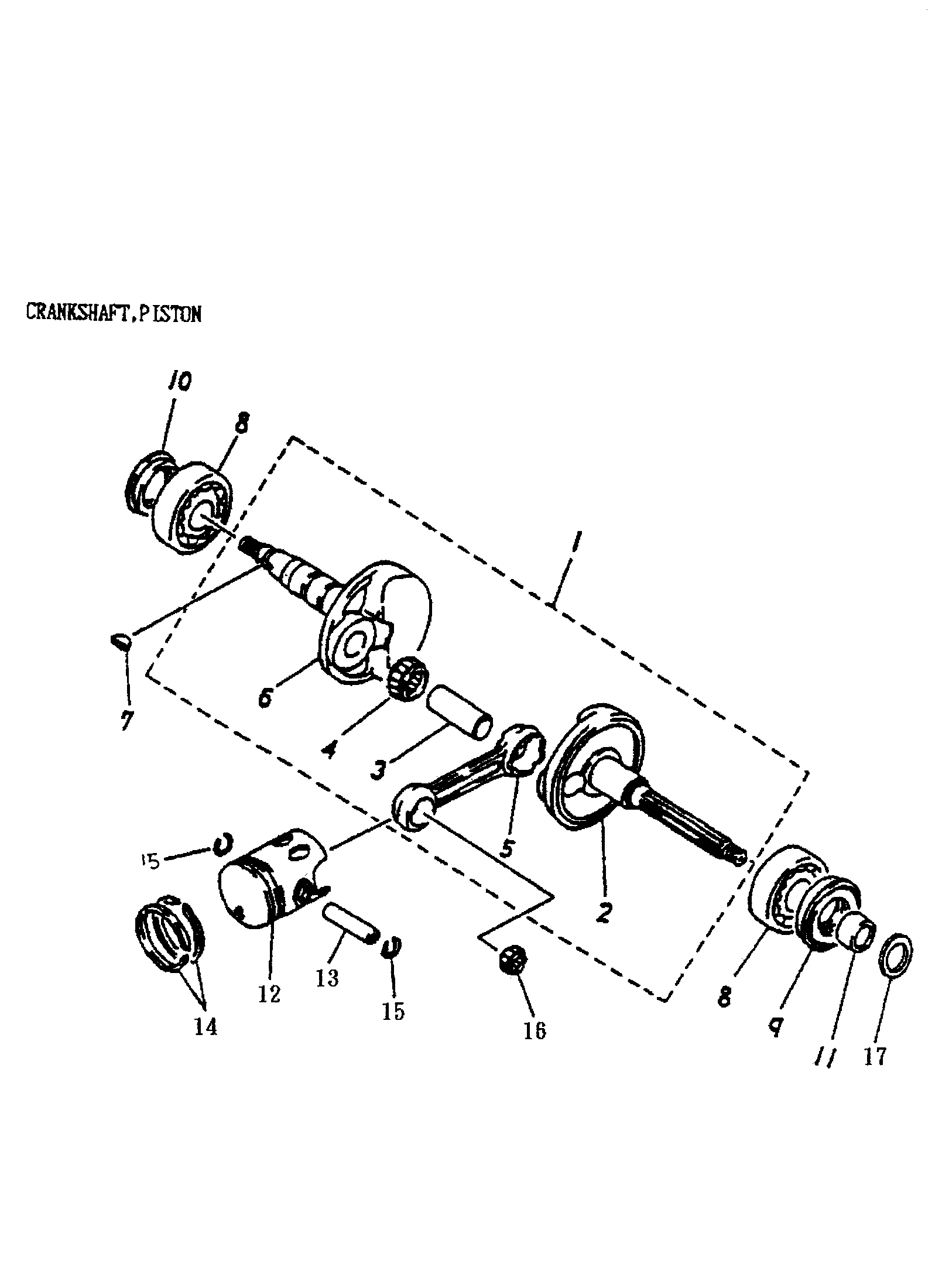

01- Crankshaft And Pistons для BRP Mini DS 50 2-strokes - 2006

№

Артикул

Название
1

A13000116000 CRANKSHAFT ASS'Y

CRANKSHAFT ASS'Y

23 230 ₽
2

A13321116000 L.H. Crank

L.H. Crank

7 090 ₽
3

A13381104000 CRANK PIN

CRANK PIN

2 050 ₽
4

A96200162212 NEEDLE BEARING (16 X 22 X 12)

NEEDLE BEARING (16 X 22 X 12)

2 050 ₽
5

A13201104000 CRANK CONNECTING ROD

CRANK CONNECTING ROD

5 190 ₽
6

A13311116000 R.H. CRANK

R.H. CRANK

7 090 ₽
7

A90471104000 SEMICYCLE KEY (3 X 13)

SEMICYCLE KEY (3 X 13)

1 150 ₽
8

A9610062040 RADIAL BALL BEARING (6204C3)

RADIAL BALL BEARING (6204C3)

1 980 ₽
9

A9650020428 OIL SEAL (20 X 42/43 X 8/9)

OIL SEAL (20 X 42/43 X 8/9)

830 ₽
10

A9650020306 OIL SEAL (20 X 30/33 X 6)

OIL SEAL (20 X 30/33 X 6)

880 ₽
11

A13316116000 L.H. CRANK COLLAR (15 X 20 X12)

L.H. CRANK COLLAR (15 X 20 X12)

990 ₽
12

A13100116000 PISTON

PISTON

3 470 ₽
13

A13111104000 PISTON PIN (7 X 10 X 33)

PISTON PIN (7 X 10 X 33)

1 270 ₽
14

A13011116000 PISTON RING SET

PISTON RING SET

4 130 ₽
15

A13115104000 PISTON PIN CLIP (1.2 X 12)

PISTON PIN CLIP (1.2 X 12)

500 ₽
16

A96200101412 NEEDLE BEARING (10 X 14 X 12.5)

NEEDLE BEARING (10 X 14 X 12.5)

1 490 ₽
17

A941011319005 PLAIN WASHER (13 X 19 X 0.5)

PLAIN WASHER (13 X 19 X 0.5)

320 ₽
