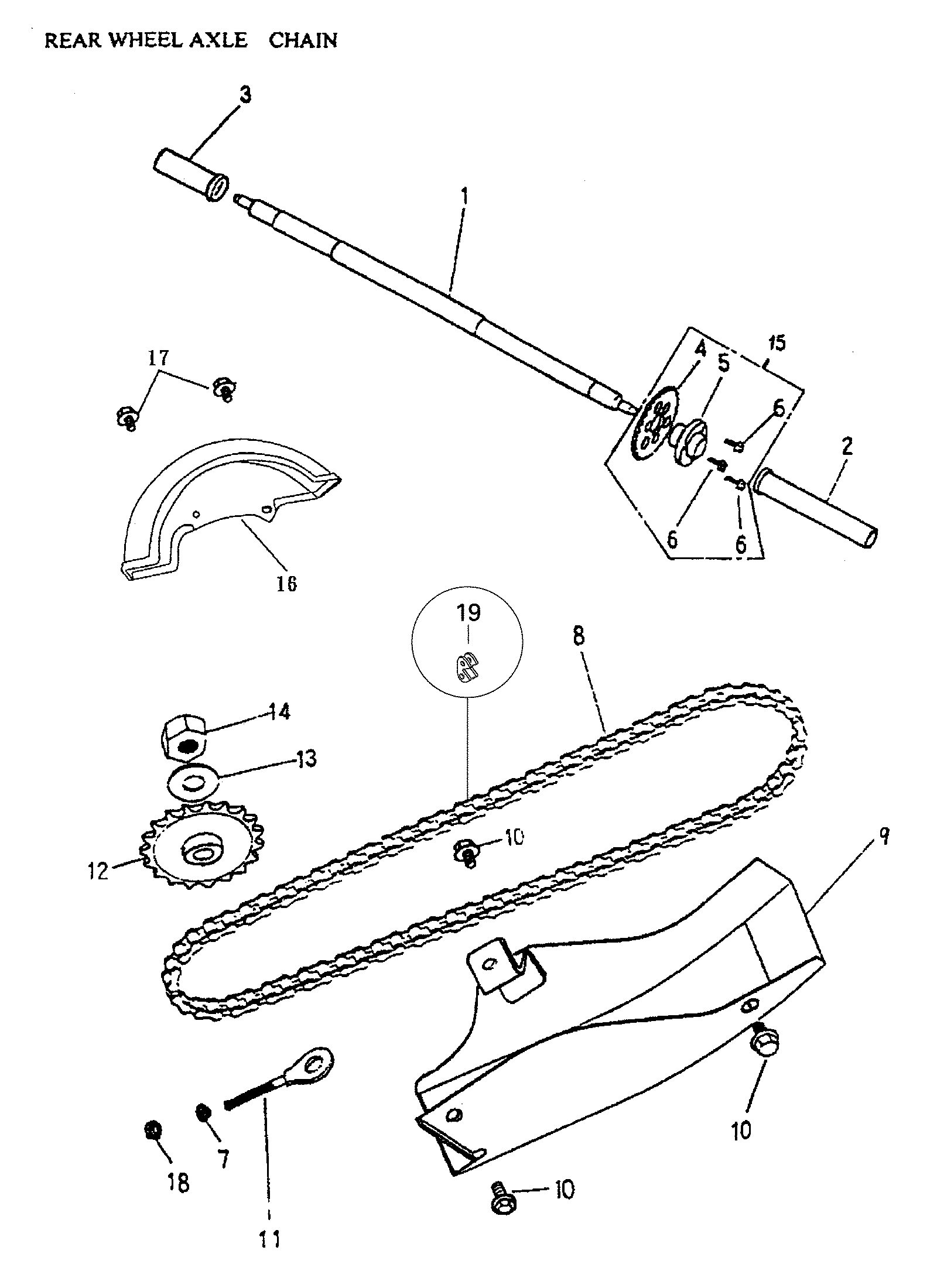

05- Rear Wheel Axle, Chain для BRP Mini DS 50 2-strokes - 2006
-
№АртикулНазвание
-
1A42301145000 Rear Wheel AxleRear Wheel Axle
-
2A42620145001 Right Spacer CollarRight Spacer Collar
-
3A42622145001 Left Spacer CollarLeft Spacer Collar
-
4A4120114600B Rear Sprocket (44T)Rear Sprocket (44T)
-
5A42610145000 Final Drive FlangeFinal Drive Flange
-
6A960000802012 Hex. Washer Face Bolt (8 x 20)Hex. Washer Face Bolt (8 x 20)
-
7233261414 Hex. Flanged Nut With Serration M6Hex. Flanged Nut With Serration M6
-
8A40530166000 Drive ChainDrive Chain
-
9A40510145001 Chain Protect CoverChain Protect Cover
-
10A960000801212G Hex. Washer Face Bolt (8 x 12)Hex. Washer Face Bolt (8 x 12)
-
11A40543145000 Drive Chain AdjusterDrive Chain Adjuster
-
12A23801145000 Drive Sprocket Ass'y (19T)Drive Sprocket Ass'y (19T)
-
13A941011529030 Plain WasherPlain Washer
-
14A9035014000 Nylon Nut M14Nylon Nut M14
-
15A4260014500A Rear Sprocket Ass'yRear Sprocket Ass'y
-
16A40511152000 Rear Chain CoverRear Chain Cover
-
17A960000601210G Hex. Washer Face Bolt M6 x 12Hex. Washer Face Bolt M6 x 12
-
18A9405008000 Hex. Flange Nut With Serration M8Hex. Flange Nut With Serration M8
-
19A40532145000 Connecting Chain LinkConnecting Chain Link
