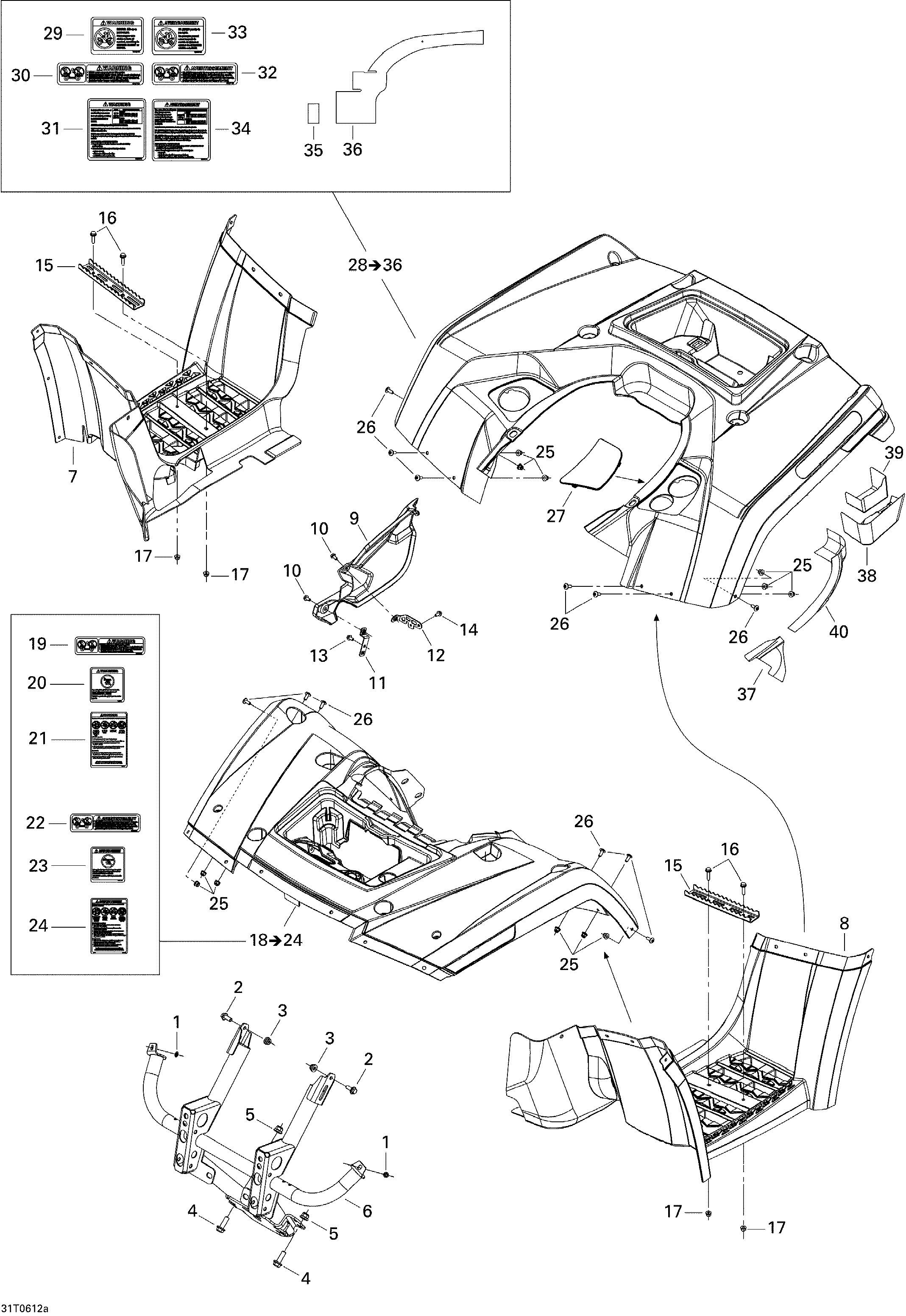

09- Body And Accessories 1, STD для BRP Outlander 650 STD 4 X 4 - 2006
-
№АртикулНазвание
-
1732610072 Push NutPush Nut
-
2207682044 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
3233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
4207603044 Hex Flanged Screw M10 X 30Hex Flanged Screw M10 X 30
-
5233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
6705001827 Front BumperFront Bumper
-
7705001311 RH FootboardRH Footboard
-
8705001312 LH FootboardLH Footboard
-
9705001462 Engine CoverEngine Cover
-
10210261280 Hex Flanged Screw M6 X 12Hex Flanged Screw M6 X 12
-
11705000657 Engine Cover SupportEngine Cover Support
-
12705001826 Engine Cover SupportEngine Cover Support
-
13210261280 Hex Flanged Screw M6 X 12Hex Flanged Screw M6 X 12
-
14207561244 Hex Flanged Screw M6 X 12, Scotch GripHex Flanged Screw M6 X 12, Scotch Grip
-
15705000428 FootrestFootrest
-
16207662584 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
17233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
18703500584 Front Fender Kit, Viper Red. Includes 18 to 24, Viper RedFront Fender Kit, Viper Red. Includes 18 to 24, Viper Red
-
18703500585 Front Fender Kit, Yellow. Includes 18 to 24, YellowFront Fender Kit, Yellow. Includes 18 to 24, Yellow
-
18703500586 Front Fender Kit, Laurentian Green. Includes 18 to 24, Laurentian GreenFront Fender Kit, Laurentian Green. Includes 18 to 24, Laurentian Green
-
19704901089 Warning Label, Load. English VersionWarning Label, Load. English Version
-
20704900113 Warning Label, Under 16 Years Old. English VersionWarning Label, Under 16 Years Old. English Version
-
21704900112 Warning Label, Death And Injuries. English VersionWarning Label, Death And Injuries. English Version
-
22704901090 Warning Label, Load. French VersionWarning Label, Load. French Version
-
23704900012 Warning Label, Under 16 Years Old. French VersionWarning Label, Under 16 Years Old. French Version
-
24704900002 Warning Label, Death And Injuries. French VersionWarning Label, Death And Injuries. French Version
-
25233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
26250000261 Torx Screw M6 X 16Torx Screw M6 X 16
-
27705001910 LH Cap, BlackLH Cap, Black
-
28703500555 Rear Fender Kit, Yellow. Includes 28 to 36, YellowRear Fender Kit, Yellow. Includes 28 to 36, Yellow
-
28703500557 Rear Fender Kit, Laurentian Green. Includes 28 to 36, Laurentian GreenRear Fender Kit, Laurentian Green. Includes 28 to 36, Laurentian Green
-
28703500568 Rear Fender Kit, Viper Red. Includes 28 to 36, Viper RedRear Fender Kit, Viper Red. Includes 28 to 36, Viper Red
-
29704900005 Warning Label, Passenger. English VersionWarning Label, Passenger. English Version
-
30704901089 Warning Label, Load. English VersionWarning Label, Load. English Version
-
31704900882 Warning Label, Tire Pressure. English VersionWarning Label, Tire Pressure. English Version
-
32704901090 Warning Label, Load. French VersionWarning Label, Load. French Version
-
33704900006 Warning Label, Passenger. French VersionWarning Label, Passenger. French Version
-
34704900883 Warning Label, Tire Pressure. French VersionWarning Label, Tire Pressure. French Version
-
35705000809 Reflective SheetReflective Sheet
-
36705002043 Reflective SheetReflective Sheet
-
37705002014 Reflective SheetReflective Sheet
-
38705002191 Reflective SheetReflective Sheet
-
39705002189 Reflective SheetReflective Sheet
-
40705002085 Reflective SheetReflective Sheet
