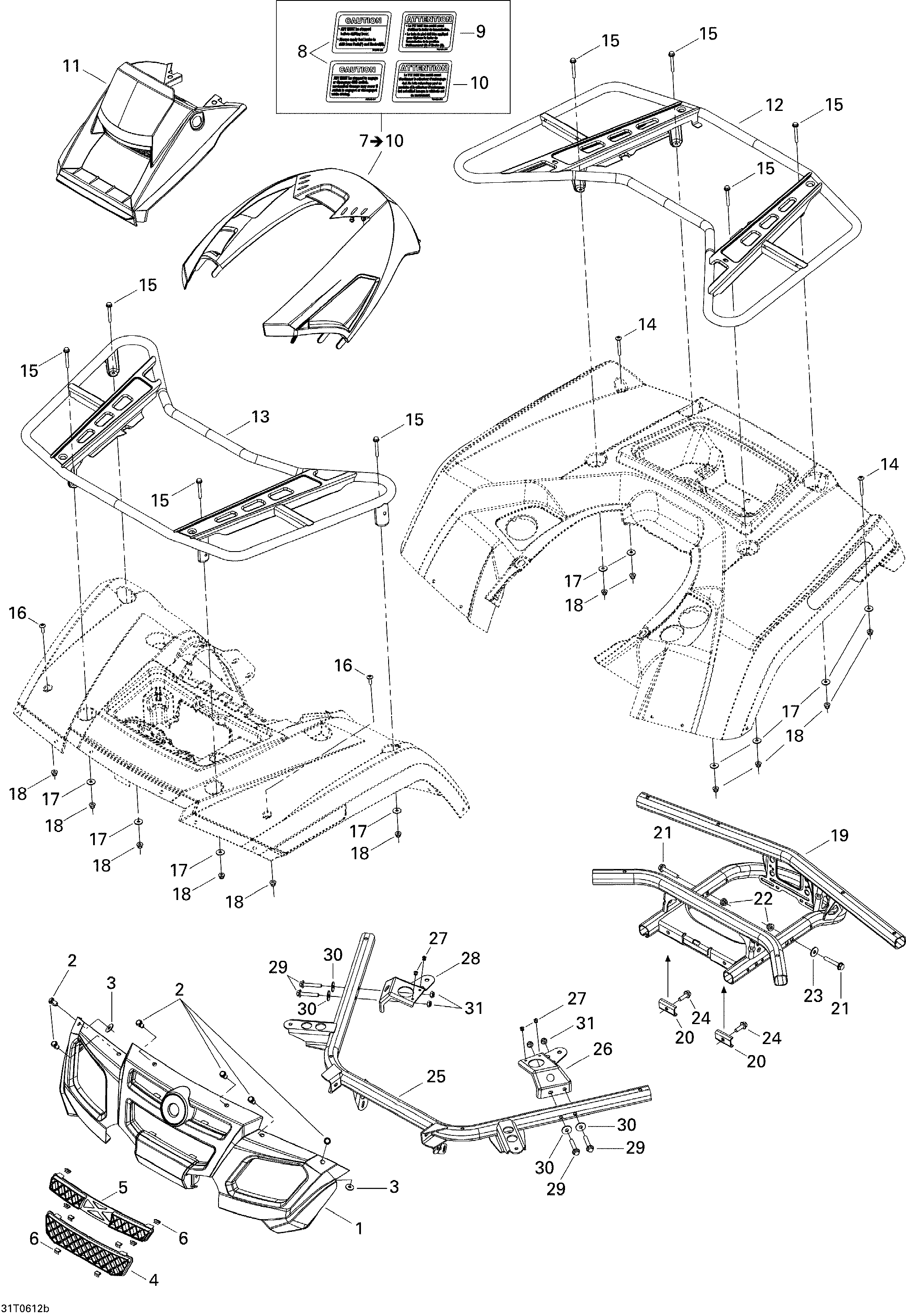

09- Body And Accessories 2, STD для BRP Outlander 650 STD 4 X 4 - 2006
-
№АртикулНазвание
-
1705001313 Front Fascia Red. Viper RedFront Fascia Red. Viper Red
-
1705001991 Front Fascia Yellow. YellowFront Fascia Yellow. Yellow
-
1705001992 Front Fascia, Green. Laurentian GreenFront Fascia, Green. Laurentian Green
-
2293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
3506151252 WasherWasher
-
4705001679 Lower GrillLower Grill
-
5705001901 Upper GrillUpper Grill
-
6517302674 ClipClip
-
7703500597 Central Panel Kit, Viper Red. Includes 7 to 10, Viper RedCentral Panel Kit, Viper Red. Includes 7 to 10, Viper Red
-
7703500598 Central Panel Kit, Yellow. Includes 7 to 10, YellowCentral Panel Kit, Yellow. Includes 7 to 10, Yellow
-
7703500599 Central Panel Kit, Laurentian Green. Includes 7 to 10, Laurentian GreenCentral Panel Kit, Laurentian Green. Includes 7 to 10, Laurentian Green
-
8704900434 Caution Label, Lever And 4wd Switch. English VersionCaution Label, Lever And 4wd Switch. English Version
-
9704900475 Caution Label, Shifting Lever. French VersionCaution Label, Shifting Lever. French Version
-
10704900476 Caution Label, 4wd Switch. French VersionCaution Label, 4wd Switch. French Version
-
11705001314 DashboardDashboard
-
12705001780 Rear Luggage RackRear Luggage Rack
-
13705001769 Front Luggage RackFront Luggage Rack
-
14250000239 Torx Truss Screw M6 X 50Torx Truss Screw M6 X 50
-
15207665044 Hex Flanged Screw M6 X 50Hex Flanged Screw M6 X 50
-
16250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
17224061201 Flat WasherFlat Washer
-
18233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
19705001459 Rear SupportRear Support
-
20705001180 U ReinforcementU Reinforcement
-
21207685044 Hex Flanged Screw M8 X 50Hex Flanged Screw M8 X 50
-
22233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
23234082410 Flat Washer 8 mmFlat Washer 8 mm
-
24207582044 Hex Flanged Screw M8 X 20, Scotch GripHex Flanged Screw M8 X 20, Scotch Grip
-
25705001455 Front SupportFront Support
-
26705000692 LH Anchor PlateLH Anchor Plate
-
27390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
28705000693 RH Anchor PlateRH Anchor Plate
-
29207684544 Hex Flanged Screw M8 X 45Hex Flanged Screw M8 X 45
-
30234082410 Flat Washer 8 mmFlat Washer 8 mm
-
31232581414 Hex Elastic Nut M8Hex Elastic Nut M8
