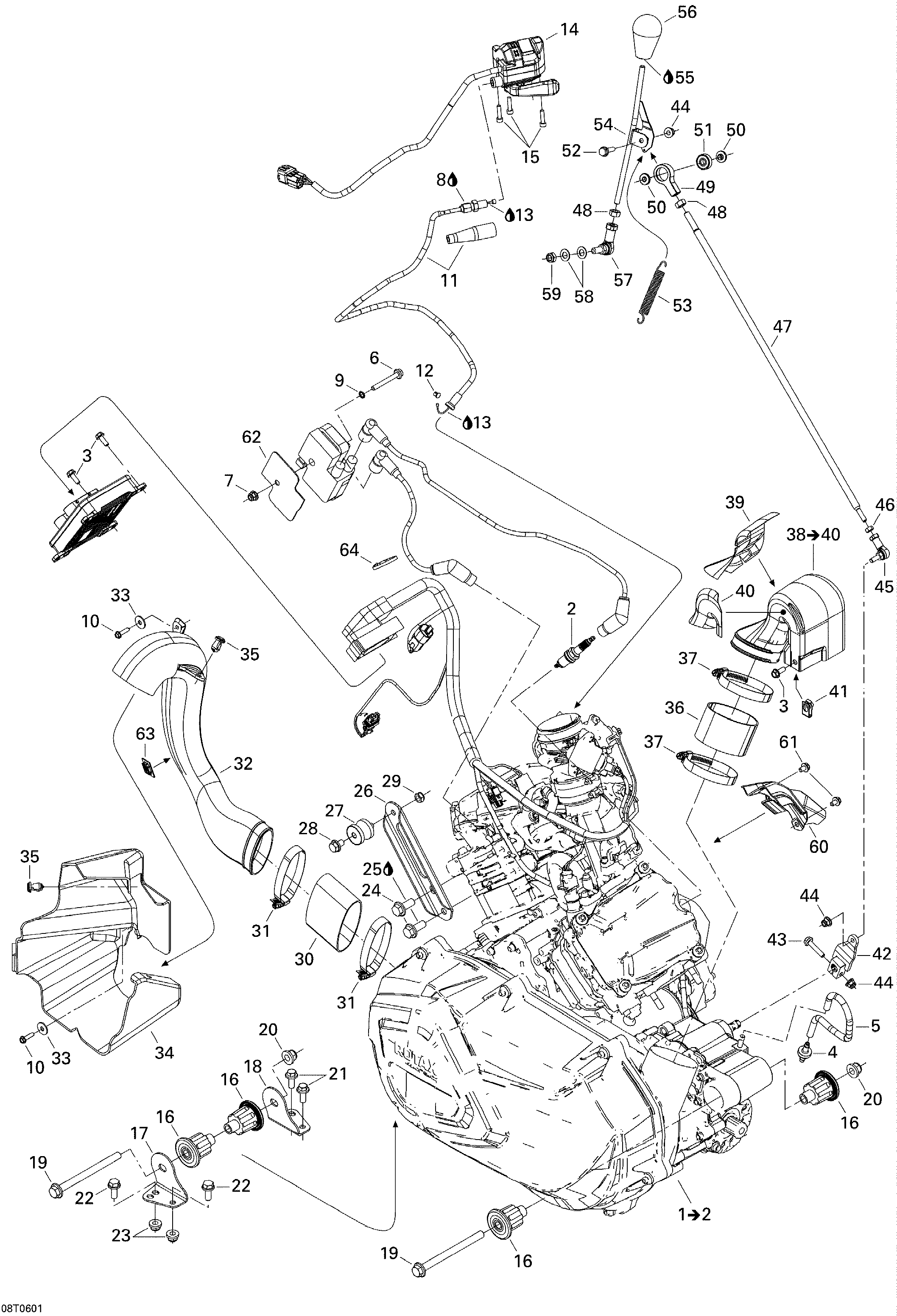

01- Engine And Engine Support для BRP Outlander 800 XT 4 X 4 - 2006
-
№АртикулНазвание
-
2707000246 Spark Plug, NGK DCP-R8ESpark Plug, NGK DCP-R8E
-
3210261680 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
4275500398 Check ValveCheck Valve
-
5276000048 Hose 6 mmHose 6 mm
-
6207665044 Hex Flanged Screw M6 X 50Hex Flanged Screw M6 X 50
-
7233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
8293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
9234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
10210252040 Hex Forming ScrewHex Forming Screw
-
11707000393 Throttle CableThrottle Cable
-
12707000434 Cable GuideCable Guide
-
13293600041 Cable Lubricant, 400 GCable Lubricant, 400 G
-
14707000369 Throttle HandleThrottle Handle
-
15205052588 Socket Head Screw M5 X 25Socket Head Screw M5 X 25
-
16707000426 Anti-vibration MountAnti-vibration Mount
-
17707000364 Engine Bracket, BlackEngine Bracket, Black
-
18707000396 Engine Bracket, BlackEngine Bracket, Black
-
19230602546 Hex Flanged Screw M10 X 125Hex Flanged Screw M10 X 125
-
20233201416 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
21207582044 Hex Flanged Screw M8 X 20, Scotch GripHex Flanged Screw M8 X 20, Scotch Grip
-
22207682044 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
23233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
24207602544 Hex Flanged Screw M10 X 25Hex Flanged Screw M10 X 25
-
25293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
26707000371 Upper Engine Bracket, BlackUpper Engine Bracket, Black
-
27274000839 Rubber IsolatorRubber Isolator
-
28207581244 Hex Flanged Screw M8 X 12, Scotch GripHex Flanged Screw M8 X 12, Scotch Grip
-
29232581414 Hex Elastic Nut M8Hex Elastic Nut M8
-
30707000154 Flexible AdaptorFlexible Adaptor
-
31293650091 Norma ClampNorma Clamp
-
32706600008 Air InletAir Inlet
-
33391302000 Flat WasherFlat Washer
-
34707000461 Water DeflectorWater Deflector
-
35293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
36706600007 Flexible AdaptorFlexible Adaptor
-
37514052859 Norma Gear ClampNorma Gear Clamp
-
38707000459 Outlet Ass'y. Includes 38 to 40Outlet Ass'y. Includes 38 to 40
-
39707000460 Reflecting SheetReflecting Sheet
-
40707000467 Reflecting SheetReflecting Sheet
-
41250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
42706400002 LeverLever
-
43207663044 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
44233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
45707000143 LH Ball JointLH Ball Joint
-
46232066414 LH Hex Nut M6LH Hex Nut M6
-
47706400001 Threaded RodThreaded Rod
-
48232081414 Hex Nut M8Hex Nut M8
-
49707000418 PivotPivot
-
50707000419 BushingBushing
-
51293350039 Ball BearingBall Bearing
-
52207662544 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
53707000435 SpringSpring
-
54706400004 Lever ArmLever Arm
-
55293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
56705500022 Lever ButtonLever Button
-
57707000278 RH Ball JointRH Ball Joint
-
58506151252 WasherWasher
-
59232581414 Hex Elastic Nut M8Hex Elastic Nut M8
-
60707000410 Cover OPSCover OPS
-
61210261280 Hex Flanged Forming Screw M6 X 12Hex Flanged Forming Screw M6 X 12
-
62710000073 Insulator PadInsulator Pad
-
63293750040 Tie-rap MountTie-rap Mount
-
64414115200 Tie-rap 180 mmTie-rap 180 mm
