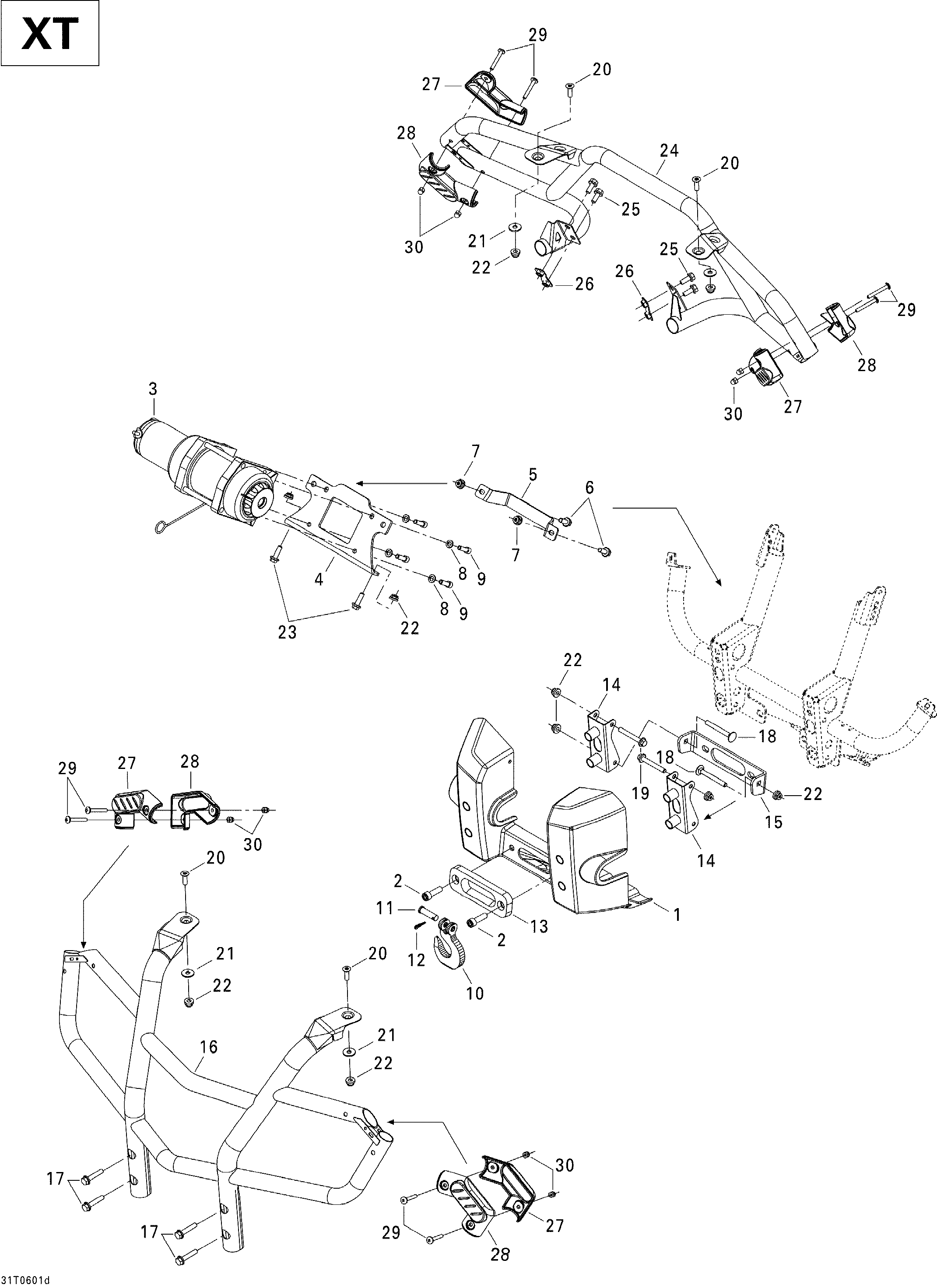

09- Body And Accessories 4 для BRP Outlander 800 XT 4 X 4 - 2006
-
№АртикулНазвание
-
1705001531 Front Protection PlateFront Protection Plate
-
2205003544 Socket Screw M10 X 35Socket Screw M10 X 35
-
3705000839 WinchWinch
-
4705001351 Mounting Plate, BlackMounting Plate, Black
-
5705001460 Winch Bracket, BlackWinch Bracket, Black
-
6207682544 Hex Flanged Screw M8 X 25Hex Flanged Screw M8 X 25
-
7233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
8234181401 Lock Washer 8 mmLock Washer 8 mm
-
9250000041 Socket Screw 5/16''-18 X 1''Socket Screw 5/16''-18 X 1''
-
10705000618 HookHook
-
11250400021 Clevis PinClevis Pin
-
12250400022 Cotter PinCotter Pin
-
13705000194 Cable GuideCable Guide
-
14705001058 Bumper AnchoringBumper Anchoring
-
15705001073 Winch BracketWinch Bracket
-
16705001964 Front BumperFront Bumper
-
17207584044 Hex Flanged Screw M8x40, Scotch GripHex Flanged Screw M8x40, Scotch Grip
-
18207787044 Carriage Bolt M8 X 70Carriage Bolt M8 X 70
-
19207686044 Hex Flanged Screw M8 X 60Hex Flanged Screw M8 X 60
-
20235482084 Torx Screw M8 X 20Torx Screw M8 X 20
-
21234082410 Flat Washer 8 mmFlat Washer 8 mm
-
22233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
23207682544 Hex Flanged Screw M8 X 25Hex Flanged Screw M8 X 25
-
24705001973 Rear BumperRear Bumper
-
25207582044 Hex Flanged Screw M8 X 20, Scotch GripHex Flanged Screw M8 X 20, Scotch Grip
-
26705001075 Attachment PlateAttachment Plate
-
27705001042 Male CapMale Cap
-
28705001043 Female CapFemale Cap
-
29250000215 Torx Screw M6 X 45Torx Screw M6 X 45
-
30232361493 Cap Nut M6Cap Nut M6
