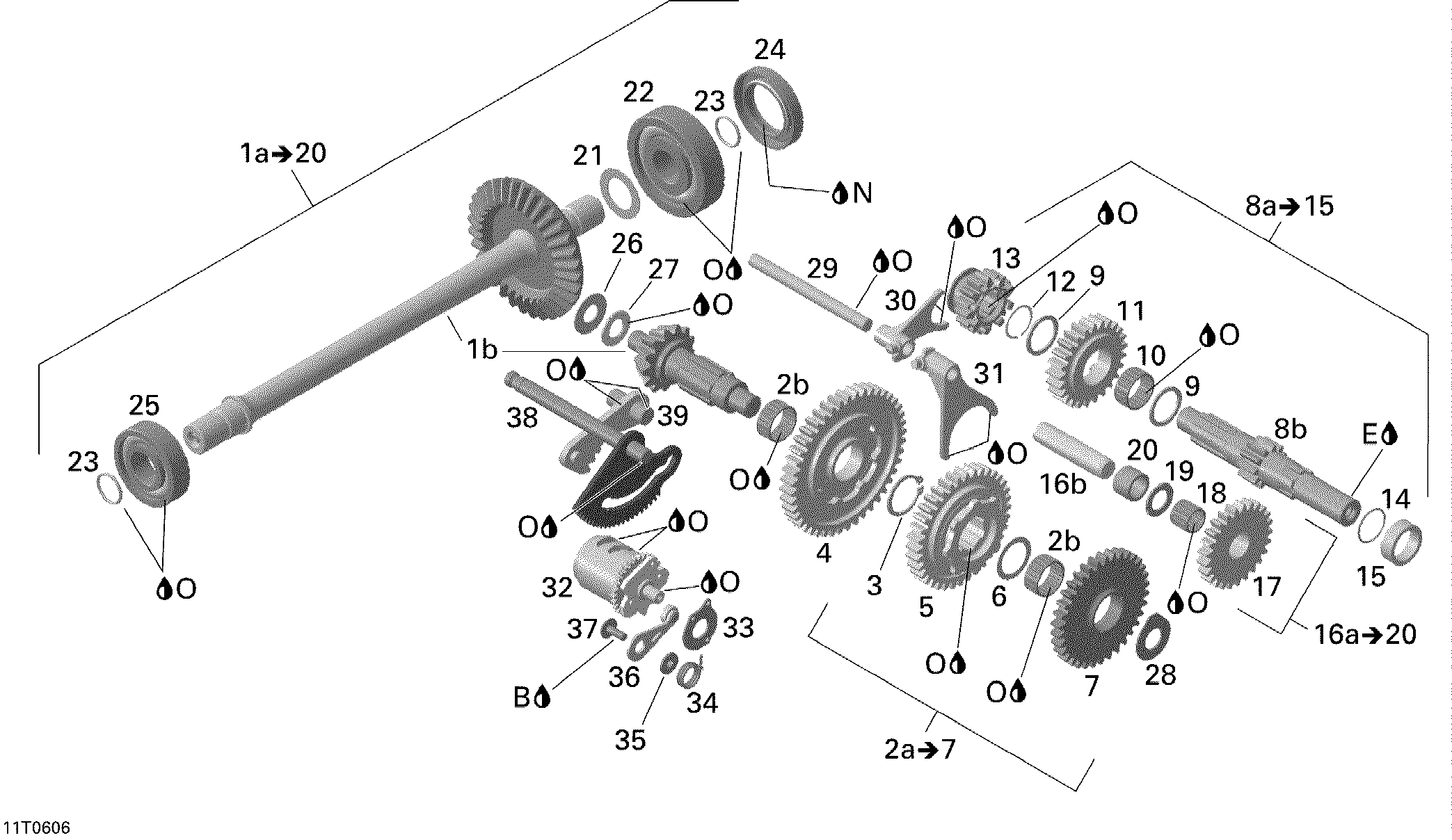

05- Gear Shift для BRP Outlander MAX 400 XT 4 X 4 - 2006
-
№АртикулНазвание
-
1a420684220 Drive Ass'y. Includes 1a to 20Drive Ass'y. Includes 1a to 20
-
1b420296535 Bevel Gear Ass'yBevel Gear Ass'y
-
2a420281285 Gear Wheel Set. Includes 2a to 7Gear Wheel Set. Includes 2a to 7
-
2b420632070 Needle BearingNeedle Bearing
-
3420245850 Retaining RingRetaining Ring
-
8a420620440 Countershaft Ass'y, 11 Teeth. Includes 8a to 15Countershaft Ass'y, 11 Teeth. Includes 8a to 15
-
10420632070 Needle BearingNeedle Bearing
-
12420445300 CirclipCirclip
-
14420630040 O-RingO-Ring
-
15420247110 Distance RingDistance Ring
-
16a420635671 Intermediate Gear Shaft Ass'y. Includes 16a to 20Intermediate Gear Shaft Ass'y. Includes 16a to 20
-
16b420229600 Needle PinNeedle Pin
-
18420432030 Needle CageNeedle Cage
-
21420281300 Washer Thrust SetWasher Thrust Set
-
22420632280 Ball Bearing 6405Ball Bearing 6405
-
23420430370 O-RingO-Ring
-
24420650682 Oil SealOil Seal
-
25420932825 Ball BearingBall Bearing
-
26420281306 Thrust Washer Set, MAG SideThrust Washer Set, MAG Side
-
27420632300 Axial Needle BearingAxial Needle Bearing
-
28420281302 Thrust Washer Set, CVT SideThrust Washer Set, CVT Side
-
29420229540 PinPin
-
30420257330 Shift ForkShift Fork
-
31420257340 Shift ForkShift Fork
-
32420257326 Shift Drum Ass'yShift Drum Ass'y
-
33420627780 Isolating WasherIsolating Washer
-
34420238290 Index SpringIndex Spring
-
35420227710 BushingBushing
-
36703500254 Index Lever KitIndex Lever Kit
-
37420241529 Torx Screw M6 X 16Torx Screw M6 X 16
-
38420620135 Shift Shaft Ass'yShift Shaft Ass'y
-
39420257315 Parking Lock Lever Ass'yParking Lock Lever Ass'y
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
E293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
N293550030 Grease, Super LubeGrease, Super Lube
