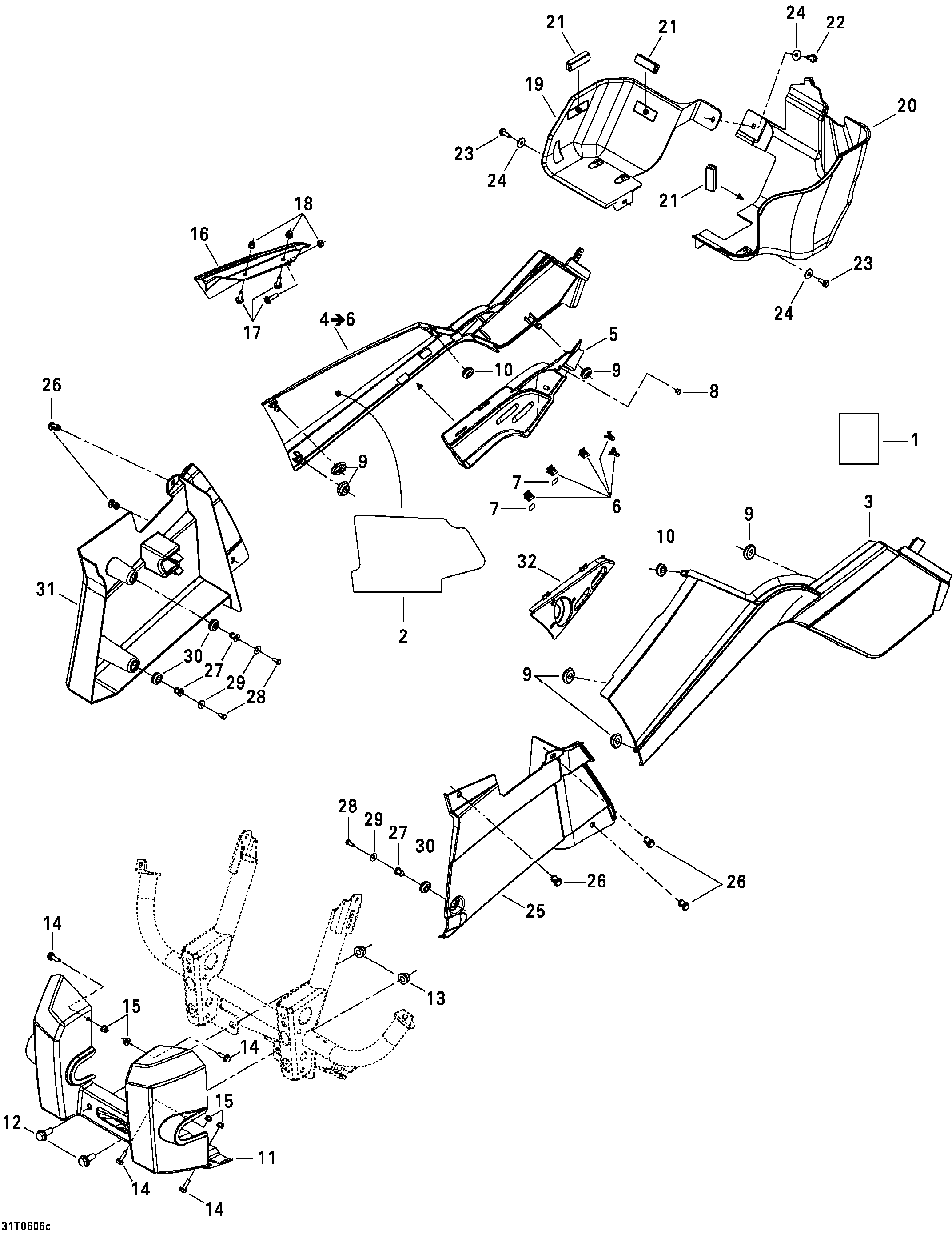

09- Body And Accessories для BRP Outlander MAX 400 XT 4 X 4 - 2006
-
№АртикулНазвание
-
1705000809 Reflective SheetReflective Sheet
-
2705000750 Reflective SheetReflective Sheet
-
3705000914 LH Panel, Viper Red. RedLH Panel, Viper Red. Red
-
3705000915 LH Panel, Laurentian Green. GreenLH Panel, Laurentian Green. Green
-
3705000916 LH Panel, Yellow. YellowLH Panel, Yellow. Yellow
-
4703500411 RH Panel, Viper Red. Red, Includes 4 to 6RH Panel, Viper Red. Red, Includes 4 to 6
-
4703500412 RH Panel, Laurentian Green. Green, Includes 4 to 6RH Panel, Laurentian Green. Green, Includes 4 to 6
-
4703500413 RH Panel, Yellow. Yellow, Includes 4 to 6RH Panel, Yellow. Yellow, Includes 4 to 6
-
5705000689 Muffler CoverMuffler Cover
-
6517302785 ClipClip
-
7705000809 Reflective SheetReflective Sheet
-
8293830005 Rubber Plug, BlackRubber Plug, Black
-
9705005156 Oblong WasherOblong Washer
-
10705002149 GrommetGrommet
-
11705001530 Front Protection Plate. StandardFront Protection Plate. Standard
-
12207602544 Hex Flanged Screw M10 X 25. StandardHex Flanged Screw M10 X 25. Standard
-
13233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
14207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
15233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
16705001529 Lever IndicatorLever Indicator
-
17207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
18233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
19705000554 RH Tank ProtectorRH Tank Protector
-
20705002176 LH Tank ProtectorLH Tank Protector
-
21293200093 Neoprene SealNeoprene Seal
-
22207561644 Hex Flanged Screw M6 X 16, Scotch GripHex Flanged Screw M6 X 16, Scotch Grip
-
23210261280 Hex Flanged Screw M6 X 12Hex Flanged Screw M6 X 12
-
24391302000 Flat WasherFlat Washer
-
25705000652 LH Inner FenderLH Inner Fender
-
26293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
27517303439 KnobKnob
-
28250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
29391301600 WasherWasher
-
30293720053 GrommetGrommet
-
31705000653 RH Inner FenderRH Inner Fender
-
32705001691 Valve SupportValve Support
