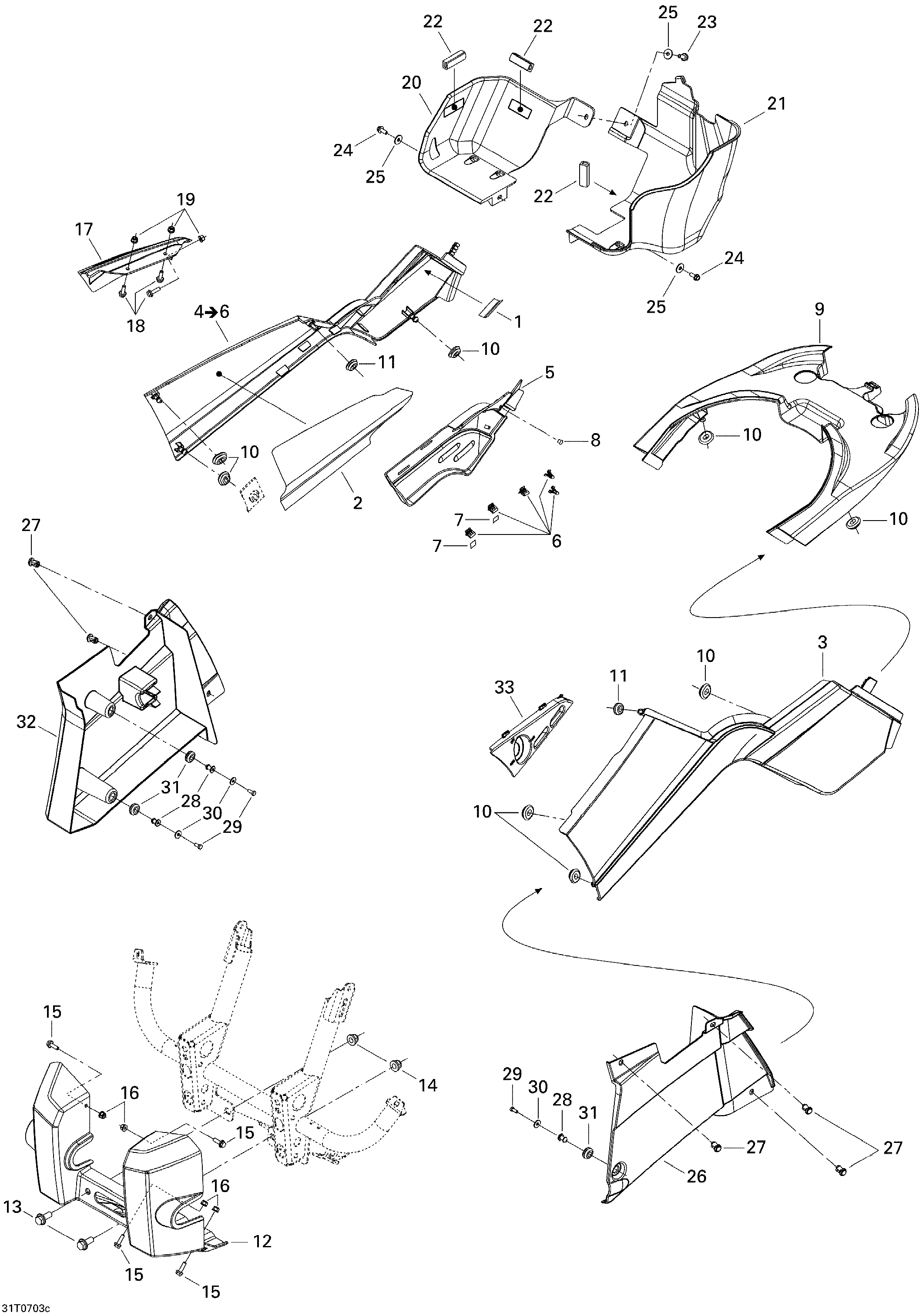

09- Body And Accessories 3, XT для BRP Outlander MAX 400 XT 4 X 4 - 2007
-
№АртикулНазвание
-
1705000809 Reflective SheetReflective Sheet
-
2705000750 Reflective SheetReflective Sheet
-
3705000914 LH Panel, Viper Red. Viper RedLH Panel, Viper Red. Viper Red
-
3705000915 LH Panel, Laurentian Green. Laurentian GreenLH Panel, Laurentian Green. Laurentian Green
-
3705000916 LH Panel, Yellow. YellowLH Panel, Yellow. Yellow
-
4703500411 RH Panel, Viper Red. Includes 4 to 7, Viper RedRH Panel, Viper Red. Includes 4 to 7, Viper Red
-
4703500412 RH Panel, Laurentian Green. Includes 4 to 7, Laurentian GreenRH Panel, Laurentian Green. Includes 4 to 7, Laurentian Green
-
4703500413 RH Panel, Yellow. Includes 4 to 7, YellowRH Panel, Yellow. Includes 4 to 7, Yellow
-
5705000689 Muffler CoverMuffler Cover
-
6517302785 ClipClip
-
7705000809 Reflective SheetReflective Sheet
-
8293830005 Rubber Plug, BlackRubber Plug, Black
-
9705001947 Storage Tray, Red. Viper RedStorage Tray, Red. Viper Red
-
9705002119 Storage Tray, Yellow. YellowStorage Tray, Yellow. Yellow
-
9705002120 Storage Tray, Green. Laurentian GreenStorage Tray, Green. Laurentian Green
-
10705005156 Oblong WasherOblong Washer
-
11705002149 GrommetGrommet
-
14233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
15207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
16233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
17705001529 Lever IndicatorLever Indicator
-
18207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
19233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
20705000554 RH Tank ProtectorRH Tank Protector
-
21705002176 LH Tank ProtectorLH Tank Protector
-
22293200093 Neoprene SealNeoprene Seal
-
23207561644 Hex Flanged Screw M6 X 16, Scotch GripHex Flanged Screw M6 X 16, Scotch Grip
-
24210261280 Hex Flanged Screw M6 X 12Hex Flanged Screw M6 X 12
-
25391302000 Flat WasherFlat Washer
-
26705000652 Side PanelSide Panel
-
27293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
28517303439 KnobKnob
-
29250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
30391301600 WasherWasher
-
31293720053 GrommetGrommet
-
32705000653 Side PanelSide Panel
-
33705001691 Valve SupportValve Support
