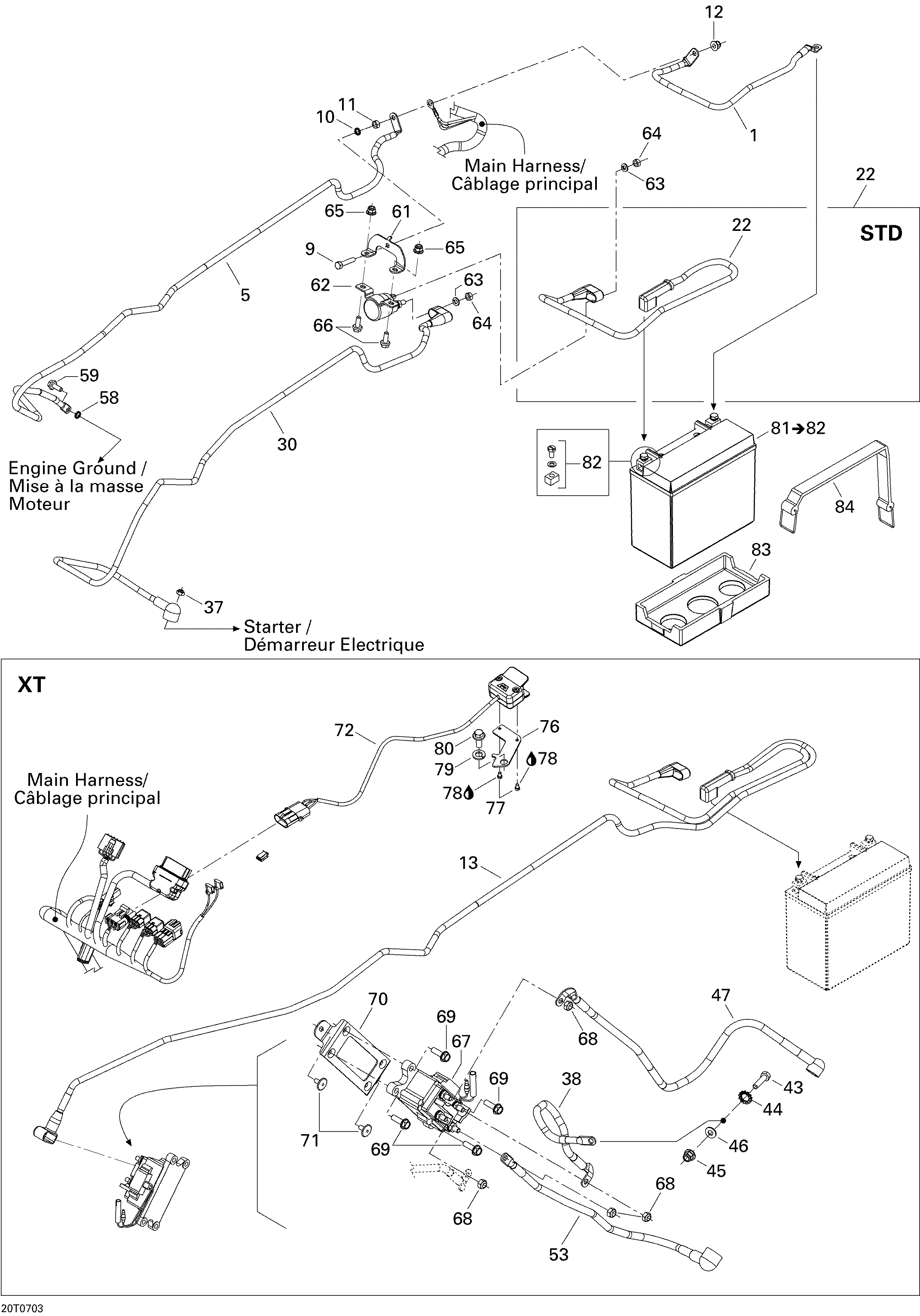

10- Electrical System XT для BRP Outlander MAX 400 XT 4 X 4 - 2007
-
№АртикулНазвание
-
1710000830 Ground Cable, Battery/frameGround Cable, Battery/frame
-
5710000844 Ground CableGround Cable
-
9207162544 Hex Screw M6 X 25Hex Screw M6 X 25
-
10234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
11232061414 Hex Nut M6Hex Nut M6
-
12233061414 Hex Flanged Nut M6Hex Flanged Nut M6
-
13710000843 Positive Cable. XTPositive Cable. XT
-
30710000903 Positive Cable, Starter Relay/starterPositive Cable, Starter Relay/starter
-
37232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
38710000455 Negative Cable. XTNegative Cable. XT
-
43207662044 Hex. Flanged Screw M6 X 20. XTHex. Flanged Screw M6 X 20. XT
-
44250200041 Lock Washer Serrated M6. XTLock Washer Serrated M6. XT
-
45233261414 Hex Flanged Elastic Nut M6. XTHex Flanged Elastic Nut M6. XT
-
46224061121 Flat Washer. XTFlat Washer. XT
-
47710000451 Winch Positive Cable, Blue. XTWinch Positive Cable, Blue. XT
-
53710000454 Winch Positive Cable, Yellow. XTWinch Positive Cable, Yellow. XT
-
58234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
59207561644 Hex Flanged Screw M6 X 16, Scotch GripHex Flanged Screw M6 X 16, Scotch Grip
-
61705201325 Starter Relay SupportStarter Relay Support
-
62515176011 Starter RelayStarter Relay
-
63234161601 Lock Washer Helical M6Lock Washer Helical M6
-
64232061600 Hex Nut M6Hex Nut M6
-
65233061414 Hex Flanged Nut M6Hex Flanged Nut M6
-
66207661244 Hex Flanged Screw M6 X 12Hex Flanged Screw M6 X 12
-
67710001000 Winch Solenoid. XTWinch Solenoid. XT
-
68232561414 Elastic Stop Nut M6. XTElastic Stop Nut M6. XT
-
69210262080 Hex. Forming Screw M6 X 20. XTHex. Forming Screw M6 X 20. XT
-
70710000798 Relay Support, Winch. XTRelay Support, Winch. XT
-
71390406500 Pop Rivet 3/16''. XTPop Rivet 3/16''. XT
-
72710001001 Winch Interrupter. XTWinch Interrupter. XT
-
76710000755 Winch Interrupter Support. XTWinch Interrupter Support. XT
-
77250000153 Hex Cap Screw 6-32 X 1/4''. XTHex Cap Screw 6-32 X 1/4''. XT
-
78293800060 Loctite 243, 10 ml. XTLoctite 243, 10 ml. XT
-
79234101601 Helicoidal Lock Washer M10. XTHelicoidal Lock Washer M10. XT
-
80250000029 Hex Screw M10 X 16. XTHex Screw M10 X 16. XT
-
81410301203 Battery, 18 Amperes. Includes 81 to 82Battery, 18 Amperes. Includes 81 to 82
-
82295500849 Battery Fastener KitBattery Fastener Kit
-
83710000279 Insulator PadInsulator Pad
-
84293850097 Rubber StrapRubber Strap
