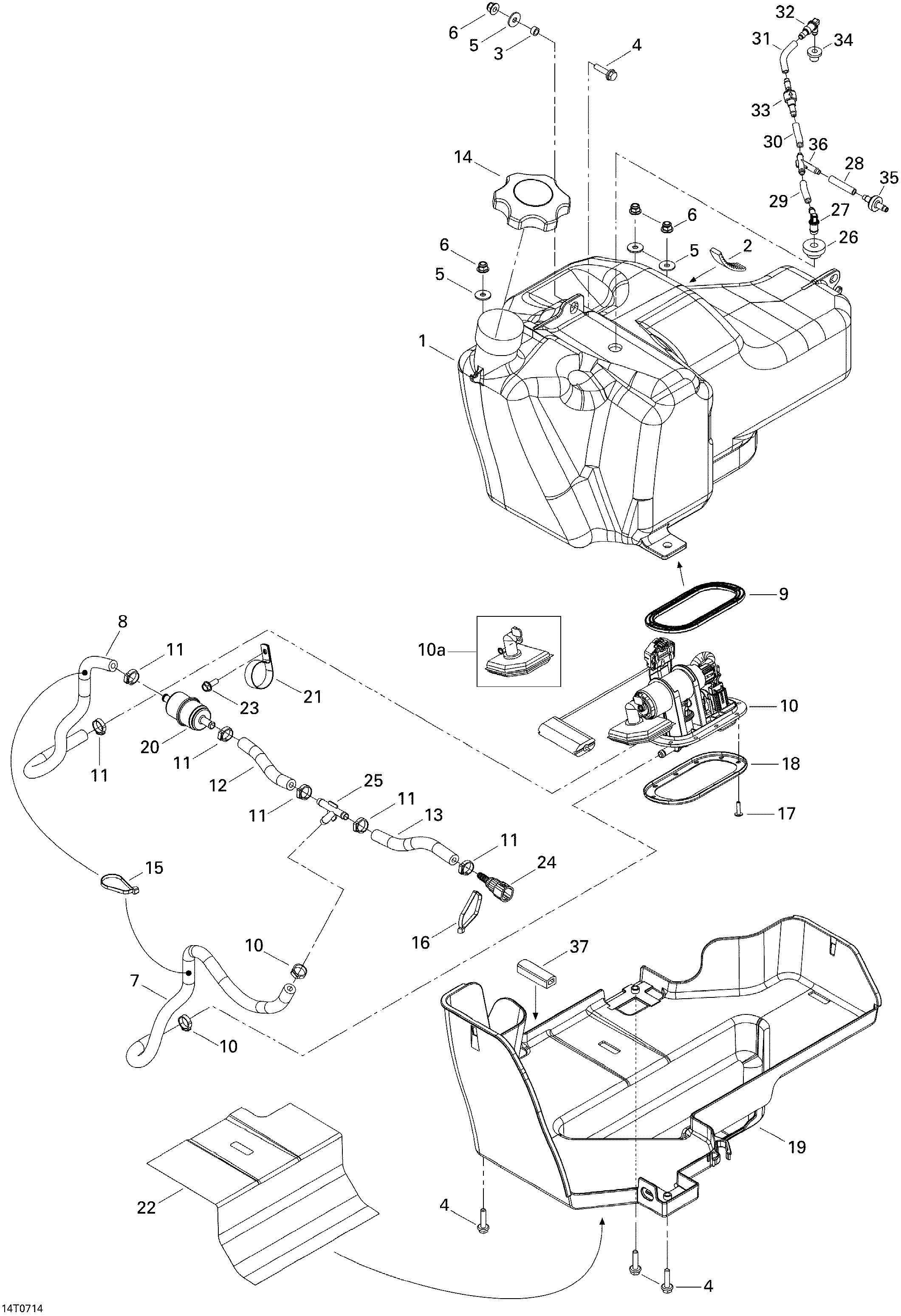

02- Fuel Tank для BRP Outlander MAX 500 XT 4 X 4 - 2007
-
№АртикулНазвание
-
1709000084 Fuel TankFuel Tank
-
2709000153 Vinyl StripVinyl Strip
-
3293900029 BushingBushing
-
4207662544 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
5391302000 Flat WasherFlat Washer
-
6233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
7709000142 Fuel Hose, 7.94 mmFuel Hose, 7.94 mm
-
8709000142 Fuel Hose, 7.94 mmFuel Hose, 7.94 mm
-
9709000109 GasketGasket
-
10703500771 Fuel PumpFuel Pump
-
11293650046 Oetiker ClampOetiker Clamp
-
12709000142 Fuel Hose, 7.94 mmFuel Hose, 7.94 mm
-
13709000142 Fuel Hose, 7.94 mmFuel Hose, 7.94 mm
-
14513033025 CapCap
-
15414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
16293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
17250000242 Truss Torx Screw M4 X 16Truss Torx Screw M4 X 16
-
18709000119 Pump RingPump Ring
-
19709000091 Tank ProtectorTank Protector
-
20709000100 Fuel FilterFuel Filter
-
21513033047 Open ClampOpen Clamp
-
22709000149 Reflective SheetReflective Sheet
-
23210261280 Hex Flanged Screw M6 X 12Hex Flanged Screw M6 X 12
-
24709000125 Female Quick FittingFemale Quick Fitting
-
25293710115 Y Fitting, 5/16''Y Fitting, 5/16''
-
26293830136 GrommetGrommet
-
27414580700 Elbow Male ConnectorElbow Male Connector
-
28415080200 Polyurethane HosePolyurethane Hose
-
29415080200 Polyurethane HosePolyurethane Hose
-
30415080200 Polyurethane HosePolyurethane Hose
-
31415080200 Polyurethane HosePolyurethane Hose
-
32414580600 Elbow Male ConnectorElbow Male Connector
-
33275500505 Check ValveCheck Valve
-
34293720029 GrommetGrommet
-
35275500398 Check ValveCheck Valve
-
36293710059 Y FittingY Fitting
-
37293200093 Neoprene SealNeoprene Seal
