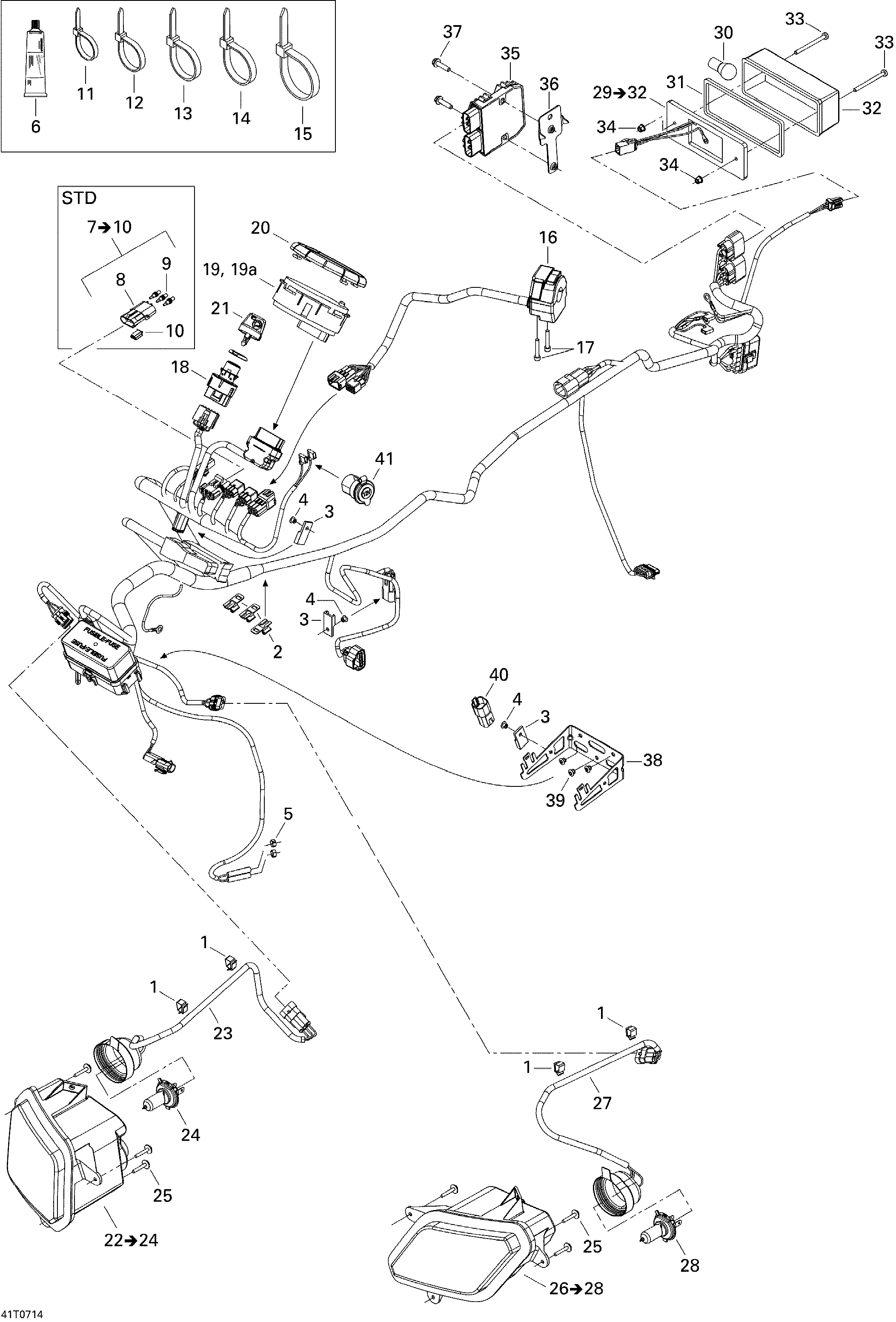

10- Electrical Accessories XT для BRP Outlander MAX 500 XT 4 X 4 - 2007
-
№АртикулНазвание
-
1414227300 ClipClip
-
2515175283 Housing SupportHousing Support
-
3270000141 ClipClip
-
4390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
5293650100 Oetiker ClampOetiker Clamp
-
6293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
11293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
12293750009 Tie-Rap 160 mmTie-Rap 160 mm
-
13414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
14293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
15293750041 Tie-rap 627 mmTie-rap 627 mm
-
16710000791 Multi-fonction HandleMulti-fonction Handle
-
17205053588 Socket Head Screw M5 X 35Socket Head Screw M5 X 35
-
18710000728 Ignition SwitchIgnition Switch
-
19710001060 SpeedometerSpeedometer
-
19a415128938 Replacement Lens, SpeedometerReplacement Lens, Speedometer
-
20710000353 Trim RingTrim Ring
-
21710000817 Black-Electronic KeyBlack-Electronic Key
-
22710000697 RH Headlamp. Includes 22 to 24RH Headlamp. Includes 22 to 24
-
23710000828 Light HarnessLight Harness
-
24710000871 Bulb, 12 V / 35/35 WBulb, 12 V / 35/35 W
-
25250000101 Plastite Screw Type K-40, M4 X 25Plastite Screw Type K-40, M4 X 25
-
26710000641 LH Headlamp. Includes 26 to 28LH Headlamp. Includes 26 to 28
-
27710000828 Light HarnessLight Harness
-
28710000871 Bulb, 12 V / 35/35 WBulb, 12 V / 35/35 W
-
29710000711 Tail Light Housing Ass'y. Includes 29 to 32Tail Light Housing Ass'y. Includes 29 to 32
-
30410504100 Tail Light BulbTail Light Bulb
-
31710000129 GasketGasket
-
32710000055 Tail Light Lens, RedTail Light Lens, Red
-
33208656091 Pan Head Phillips Screw M5 X 60Pan Head Phillips Screw M5 X 60
-
34233251414 Hex Flanged Elastic Nut M5Hex Flanged Elastic Nut M5
-
35710000870 Voltage RegulatorVoltage Regulator
-
36710000719 Rectifier SupportRectifier Support
-
37210262580 Hex Flanged Forming Screw M6 X 25Hex Flanged Forming Screw M6 X 25
-
38710000795 Fuse SupportFuse Support
-
39390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
40278002148 Diagnostic Connaect CapDiagnostic Connaect Cap
-
41710000024 Dc Outlet, 12 VoltsDc Outlet, 12 Volts
