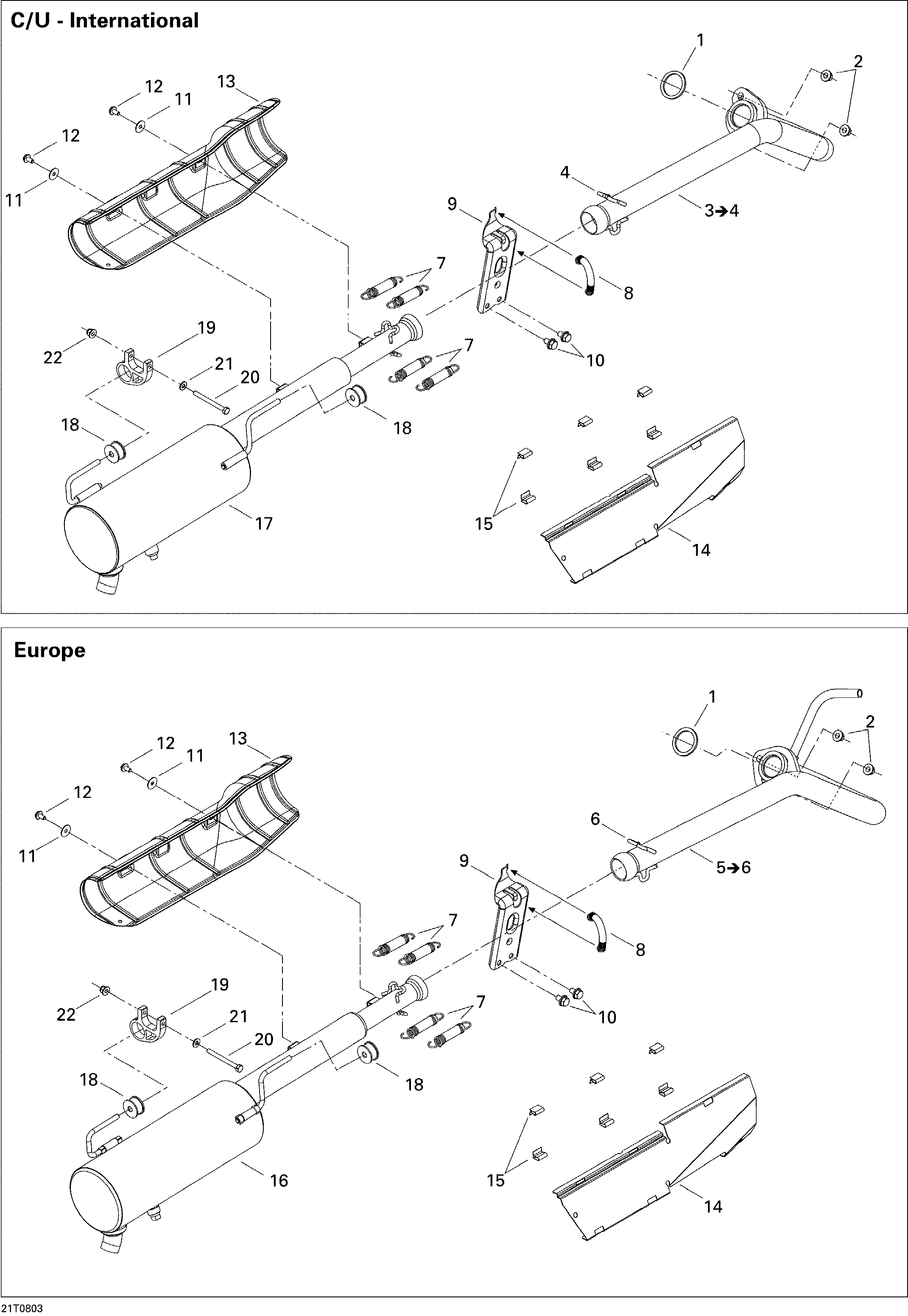

01- Exhaust System для BRP Outlander 400 XT - 2008
-
№АртикулНазвание
-
1707600317 GasketGasket
-
2233081416 Hex Flanged Nut M8Hex Flanged Nut M8
-
3707600376 Head Pipe. Includes 3 to 4Head Pipe. Includes 3 to 4
-
5707600405 Head Pipe. Includes 5 to 6, EuropeHead Pipe. Includes 5 to 6, Europe
-
7415107100 SpringSpring
-
8707600207 SpringSpring
-
9707600194 Muffler SupportMuffler Support
-
10207581244 Hex Flanged Screw M8 X 12, Scotch GripHex Flanged Screw M8 X 12, Scotch Grip
-
11391302000 Flat WasherFlat Washer
-
12250000073 Hex Flanged Screw M6 X 12Hex Flanged Screw M6 X 12
-
13707600224 Heat ShieldHeat Shield
-
14707600313 Heat DeflectorHeat Deflector
-
15517302674 ClipClip
-
16707600361 Muffler. EuropeMuffler. Europe
-
17707600395 MufflerMuffler
-
18707600012 Anti-Vibration RubberAnti-Vibration Rubber
-
19707600411 Muffler BraketMuffler Braket
-
20207066544 Hex Screw M6 X 65Hex Screw M6 X 65
-
21224061121 Flat WasherFlat Washer
-
22233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
