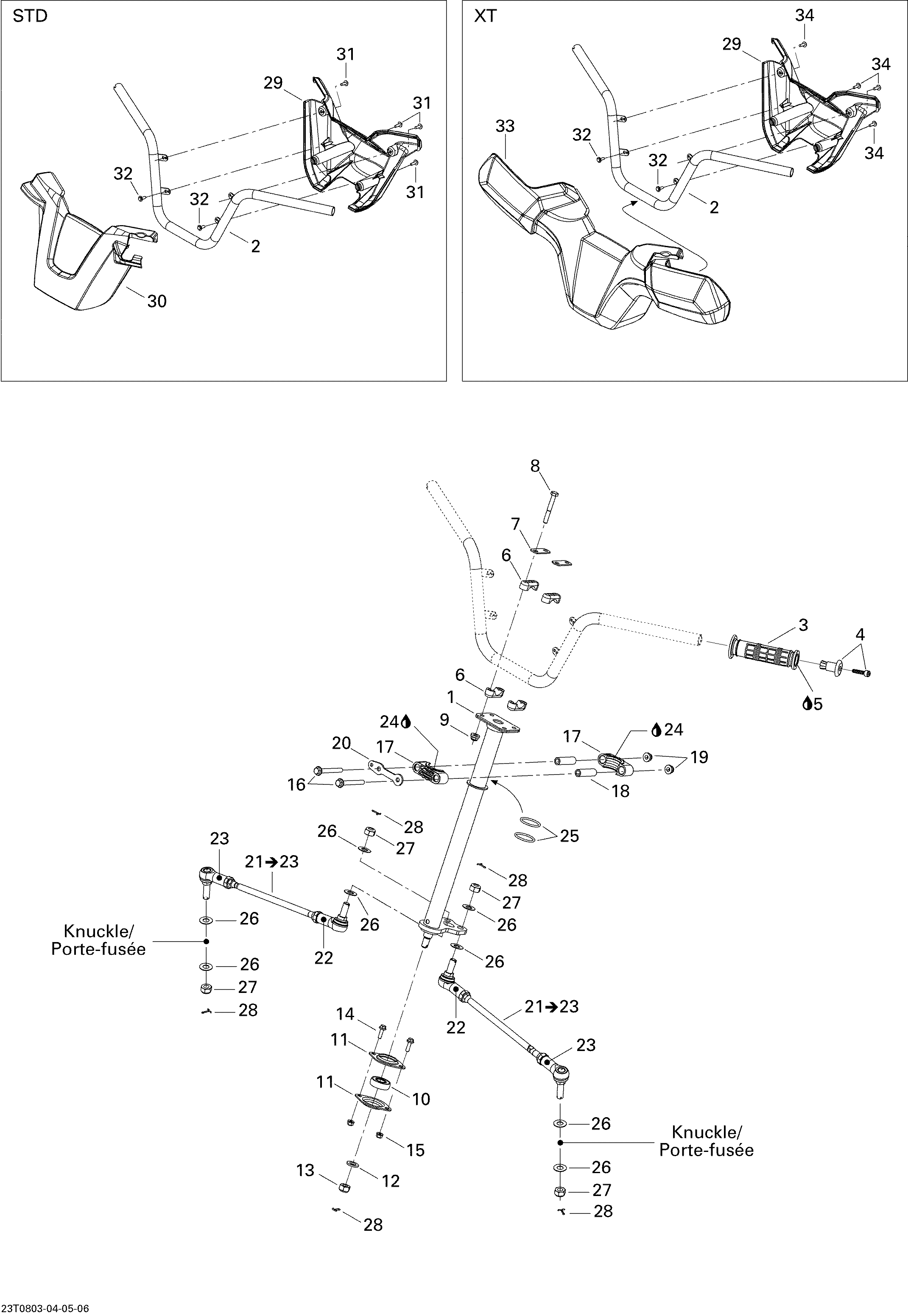

07- Steering XT для BRP Outlander 400 XT - 2008
-
№АртикулНазвание
-
1709400237 Main TubeMain Tube
-
2709400401 Handle BarHandle Bar
-
3709400493 Handle GripHandle Grip
-
4709400449 End PieceEnd Piece
-
5293800100 Loctite 406, 7 OzLoctite 406, 7 Oz
-
6506151622 Steering SupportSteering Support
-
7709400509 StiffnerStiffner
-
8207086046 Hex Screw M8 X 60Hex Screw M8 X 60
-
9233281416 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
10709400439 Ball BearingBall Bearing
-
11709400152 Thrust WasherThrust Washer
-
12234021410 Flat Washer 12 mmFlat Washer 12 mm
-
13250000047 Hex Flanged Elastic Nut M12Hex Flanged Elastic Nut M12
-
14207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
15233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
16207687044 Hex Flanged Screw M8 X 70Hex Flanged Screw M8 X 70
-
17709400471 Half BushingHalf Bushing
-
18709400072 BushingBushing
-
19233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
20709400053 Stopper PlateStopper Plate
-
21709400485 Tie Rod Ass'y. Includes 21 to 23Tie Rod Ass'y. Includes 21 to 23
-
22709400486 Ball Joint, LH ThreadsBall Joint, LH Threads
-
23709400487 Ball Joint, RH ThreadsBall Joint, RH Threads
-
25293300068 O-RingO-Ring
-
26706200281 Hardened WasherHardened Washer
-
27250100099 Nut M12Nut M12
-
28211400013 Cotter PinCotter Pin
-
29709400313 Rear Steering Cover, BlackRear Steering Cover, Black
-
32243141640 Hex Flanged Plastite Screw M4.8 X 16Hex Flanged Plastite Screw M4.8 X 16
-
33703100146 Handle Guard. Includes 33 to 34, XTHandle Guard. Includes 33 to 34, XT
-
34250000146 Truss Head Torx Screw K50 X 16. XTTruss Head Torx Screw K50 X 16. XT
