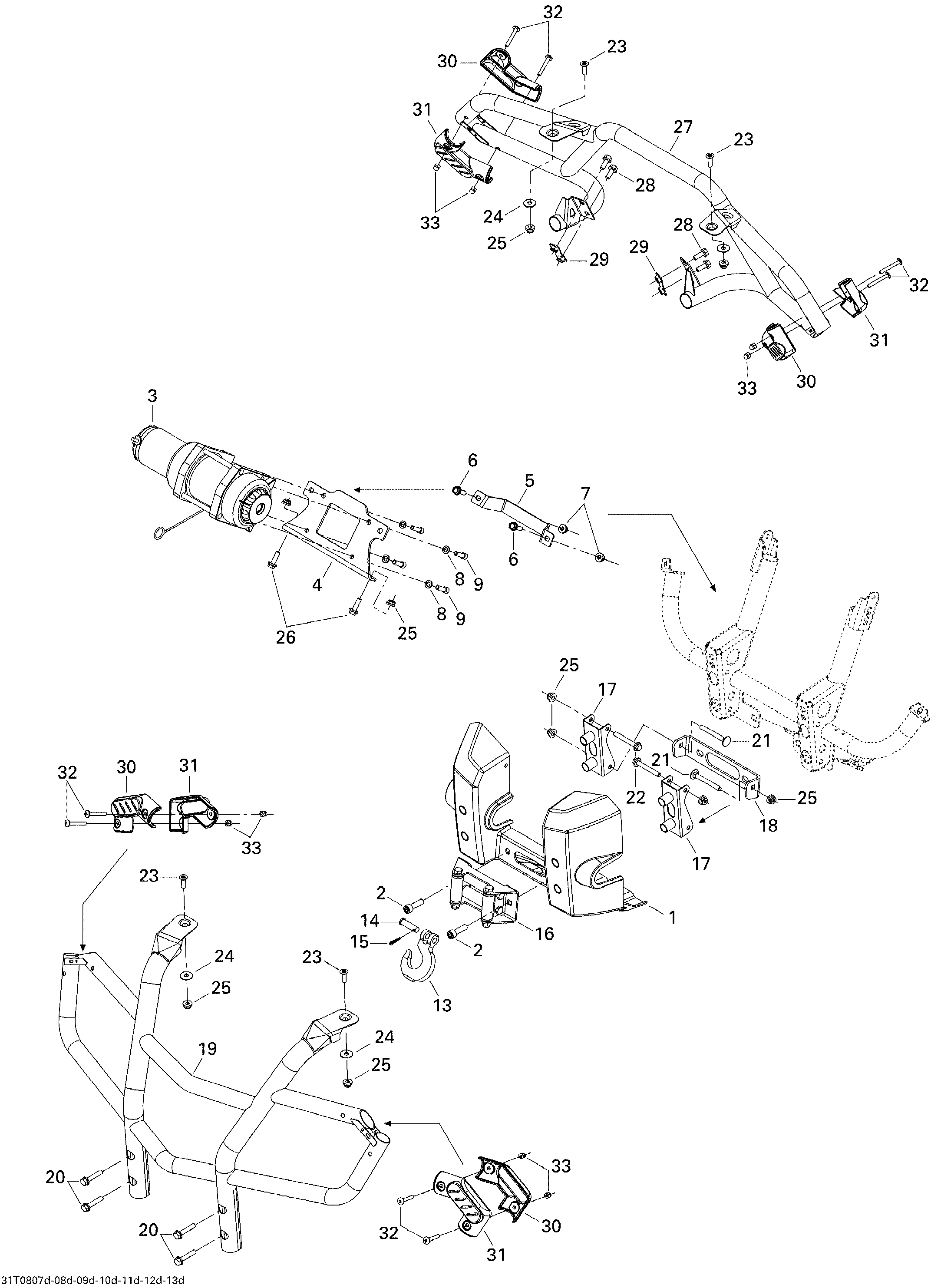

09- Body And Accessories XT для BRP Outlander 500 XT - 2008
-
№АртикулНазвание
-
1705001531 Front Protection PlateFront Protection Plate
-
2205003544 Socket Screw M10 X 35Socket Screw M10 X 35
-
3705002505 WinchWinch
-
4705001351 Mounting Plate, BlackMounting Plate, Black
-
5705001460 Winch Bracket, BlackWinch Bracket, Black
-
6207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
7233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
8234181401 Lock Washer 8 mmLock Washer 8 mm
-
9205082044 Socket Head Screw M8 X 20Socket Head Screw M8 X 20
-
13705002329 HookHook
-
14250400039 PinPin
-
15250400040 Cotter PinCotter Pin
-
16715000011 Winch RollerWinch Roller
-
17705001058 Bumper AnchoringBumper Anchoring
-
18705001073 Winch BracketWinch Bracket
-
19705001964 Front BumperFront Bumper
-
20207584044 Hex Flanged Screw M8x40, Scotch GripHex Flanged Screw M8x40, Scotch Grip
-
21207787044 Carriage Bolt M8 X 70Carriage Bolt M8 X 70
-
22207686044 Hex. Flanged Screw M8 x 60Hex. Flanged Screw M8 x 60
-
23235482584 Torx Screw M8 X 25Torx Screw M8 X 25
-
24234082410 Flat Washer 8 mmFlat Washer 8 mm
-
25233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
26207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
27705001973 Rear BumperRear Bumper
-
28207582084 Hex Flanged Screw M8 X 20, Scotch GripHex Flanged Screw M8 X 20, Scotch Grip
-
29705001075 Attachment PlateAttachment Plate
-
30705001042 Male CapMale Cap
-
31705001043 Female CapFemale Cap
-
32250000215 Torx Screw M6 X 45Torx Screw M6 X 45
-
33232361493 Cap Nut M6Cap Nut M6
