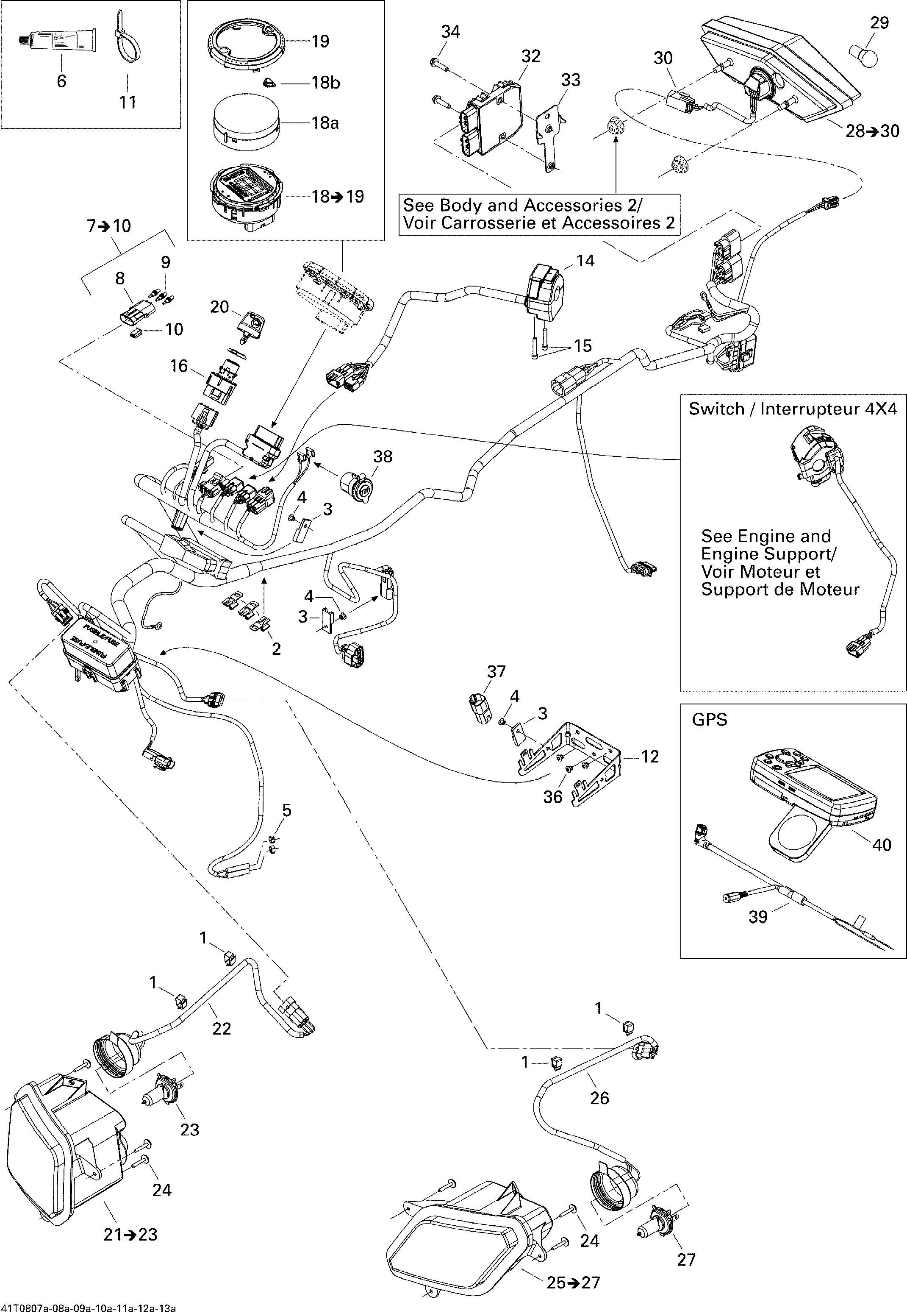

10- Electrical Accessories 1, XT для BRP Outlander 500 XT - 2008
-
№АртикулНазвание
-
1414227300 ClipClip
-
2515175283 Housing SupportHousing Support
-
3270000141 ClipClip
-
4390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
5293650100 Oetiker ClampOetiker Clamp
-
6293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
11293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
11293750009 Tie-Rap 160 mmTie-Rap 160 mm
-
11414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
11293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
11293750041 Tie-rap 627 mmTie-rap 627 mm
-
12710001263 Fuse SupportFuse Support
-
14710000791 Multi-fonction HandleMulti-fonction Handle
-
15205053588 Socket Head Screw M5 X 35Socket Head Screw M5 X 35
-
16710000728 Ignition SwitchIgnition Switch
-
18710001068 Speedometer. Includes 18 to 19Speedometer. Includes 18 to 19
-
18a415129320 LensLens
-
18b710001417 Set ButtonSet Button
-
19710001416 Trim RingTrim Ring
-
19a704901270 Logo BRPLogo BRP
-
20710000817 Black-Electronic KeyBlack-Electronic Key
-
21710000697 RH Headlamp. Includes 21 to 23RH Headlamp. Includes 21 to 23
-
22710000828 Light HarnessLight Harness
-
23710000871 Bulb, 12 V / 35/35 WBulb, 12 V / 35/35 W
-
24250000101 Plastite Screw Type K-40, M4 X 25Plastite Screw Type K-40, M4 X 25
-
25710000641 LH Headlamp. Includes 25 to 27LH Headlamp. Includes 25 to 27
-
26710000828 Light HarnessLight Harness
-
27710000871 Bulb, 12 V / 35/35 WBulb, 12 V / 35/35 W
-
28710001203 Tail Light Housing. Includes 28 to 30Tail Light Housing. Includes 28 to 30
-
29410504100 Tail Light BulbTail Light Bulb
-
30515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
32710001103 Voltage RegulatorVoltage Regulator
-
33710001262 Rectifier SupportRectifier Support
-
34210262580 Hex Flanged Forming Screw M6 X 25Hex Flanged Forming Screw M6 X 25
-
36390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
37278002148 Diagnostic Connector CapDiagnostic Connector Cap
-
38861507200 Outlet Power Kit, 12 VoltsOutlet Power Kit, 12 Volts
