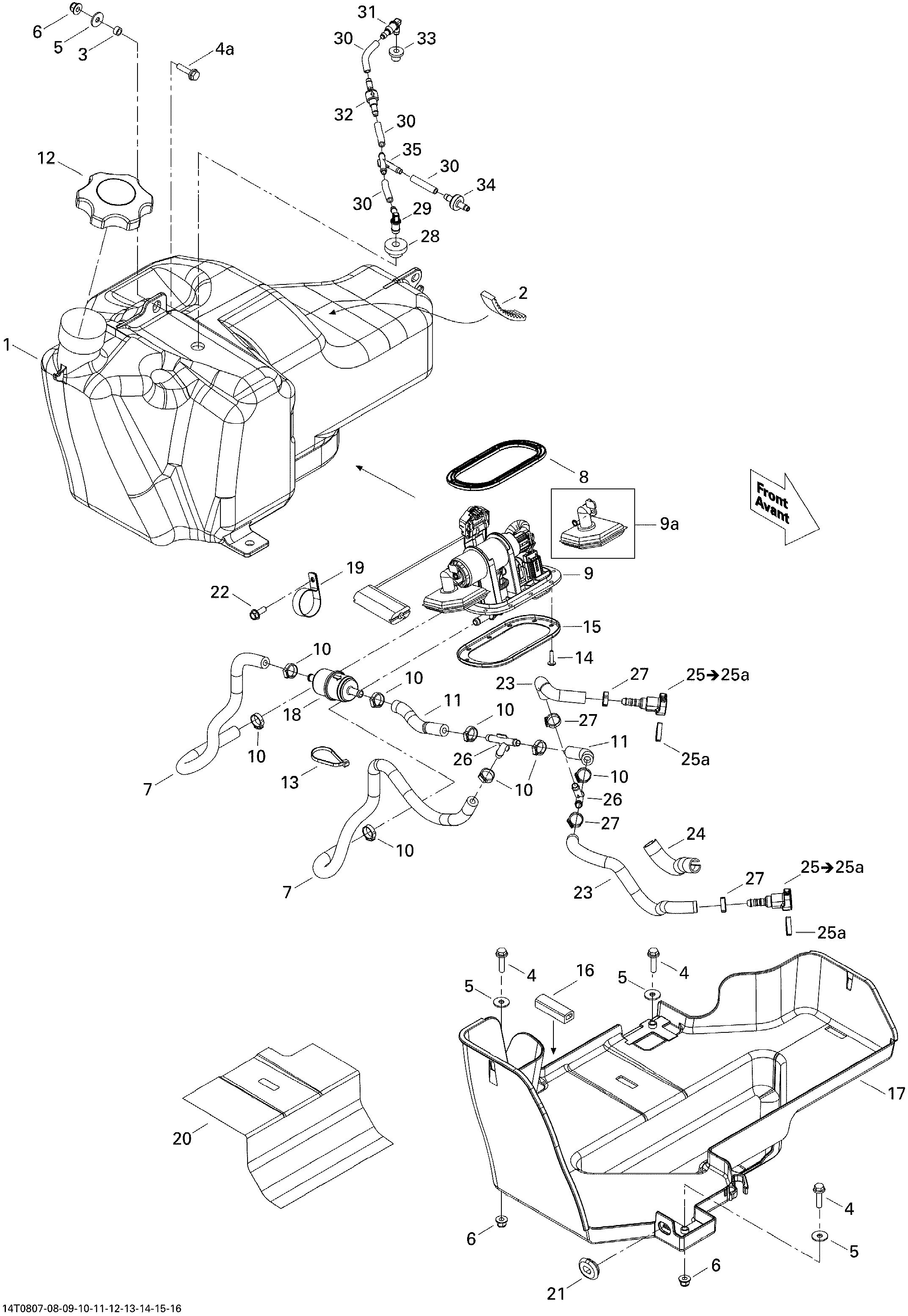

02- Fuel System для BRP Outlander 800 XT - 2008
-
№АртикулНазвание
-
1709000176 Fuel TankFuel Tank
-
1709000084 Fuel Tank. EuropeFuel Tank. Europe
-
2709000153 Vinyl StripVinyl Strip
-
3293900029 BushingBushing
-
4207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
4a207662544 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
5391302000 Flat WasherFlat Washer
-
6233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
7709000163 Fuel LineFuel Line
-
8709000109 GasketGasket
-
9703500771 Fuel PumpFuel Pump
-
10293650046 Oetiker ClampOetiker Clamp
-
11709000163 Fuel LineFuel Line
-
12513033025 CapCap
-
13414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
14250000242 Truss Torx Screw M4 X 16Truss Torx Screw M4 X 16
-
15709000170 Pump RingPump Ring
-
16293200093 Neoprene SealNeoprene Seal
-
17709000091 Tank ProtectorTank Protector
-
18709000100 Fuel FilterFuel Filter
-
19513033047 Open ClampOpen Clamp
-
20709000149 Reflective SheetReflective Sheet
-
21705005156 Oblong WasherOblong Washer
-
22210261280 Hex Flanged Screw M6 X 12Hex Flanged Screw M6 X 12
-
23709000163 Fuel LineFuel Line
-
24409901800 Tubing 13 mmTubing 13 mm
-
25709000125 Female Quick Fitting. Includes 25 to 25aFemale Quick Fitting. Includes 25 to 25a
-
25a513033135 Locking ClipLocking Clip
-
26293710115 Y Fitting, 5/16''Y Fitting, 5/16''
-
27293650046 Oetiker ClampOetiker Clamp
-
28293830136 GrommetGrommet
-
29414580700 Elbow Male ConnectorElbow Male Connector
-
30415080200 Polyurethane HosePolyurethane Hose
-
31414580600 Elbow Male ConnectorElbow Male Connector
-
32513033469 Check ValveCheck Valve
-
33293720029 GrommetGrommet
-
34275500398 Check ValveCheck Valve
-
35293710059 Y FittingY Fitting
