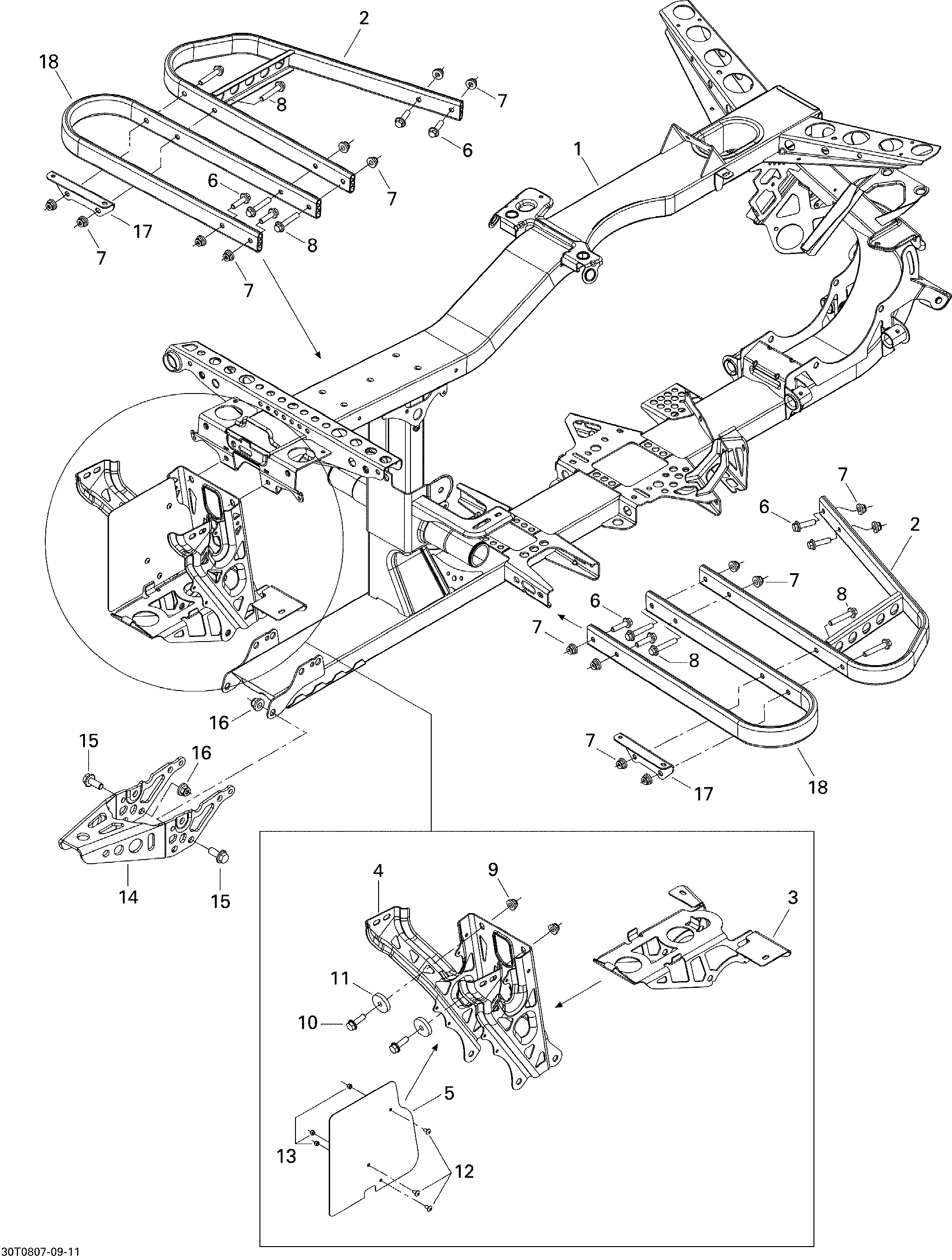

09- Frame для BRP Outlander 800 XT - 2008
-
№АртикулНазвание
-
1705201561 Frame (Black)Frame (Black)
-
2705200872 FootrestFootrest
-
3705201105 Battery Support BaseBattery Support Base
-
4705201603 Rear Battery Support, BlackRear Battery Support, Black
-
5705200936 Heat ShieldHeat Shield
-
6207683044 Hex Flanged Screw M8 X 30Hex Flanged Screw M8 X 30
-
7233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
8207684544 Hex Flanged Screw M8 X 45Hex Flanged Screw M8 X 45
-
9233281416 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
10207582586 Hex. Flanged Screw M8 x 25Hex. Flanged Screw M8 x 25
-
11705201393 SpacerSpacer
-
12250000127 Torx Screw M4 X 8Torx Screw M4 X 8
-
13232541484 Elastic Stop Nut M4Elastic Stop Nut M4
-
14705201112 Trailer Hook, BlackTrailer Hook, Black
-
15207602544 Hex Flanged Screw M10 X 25Hex Flanged Screw M10 X 25
-
16233201416 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
17705201535 SupportSupport
-
18705200896 Rear FootrestRear Footrest
