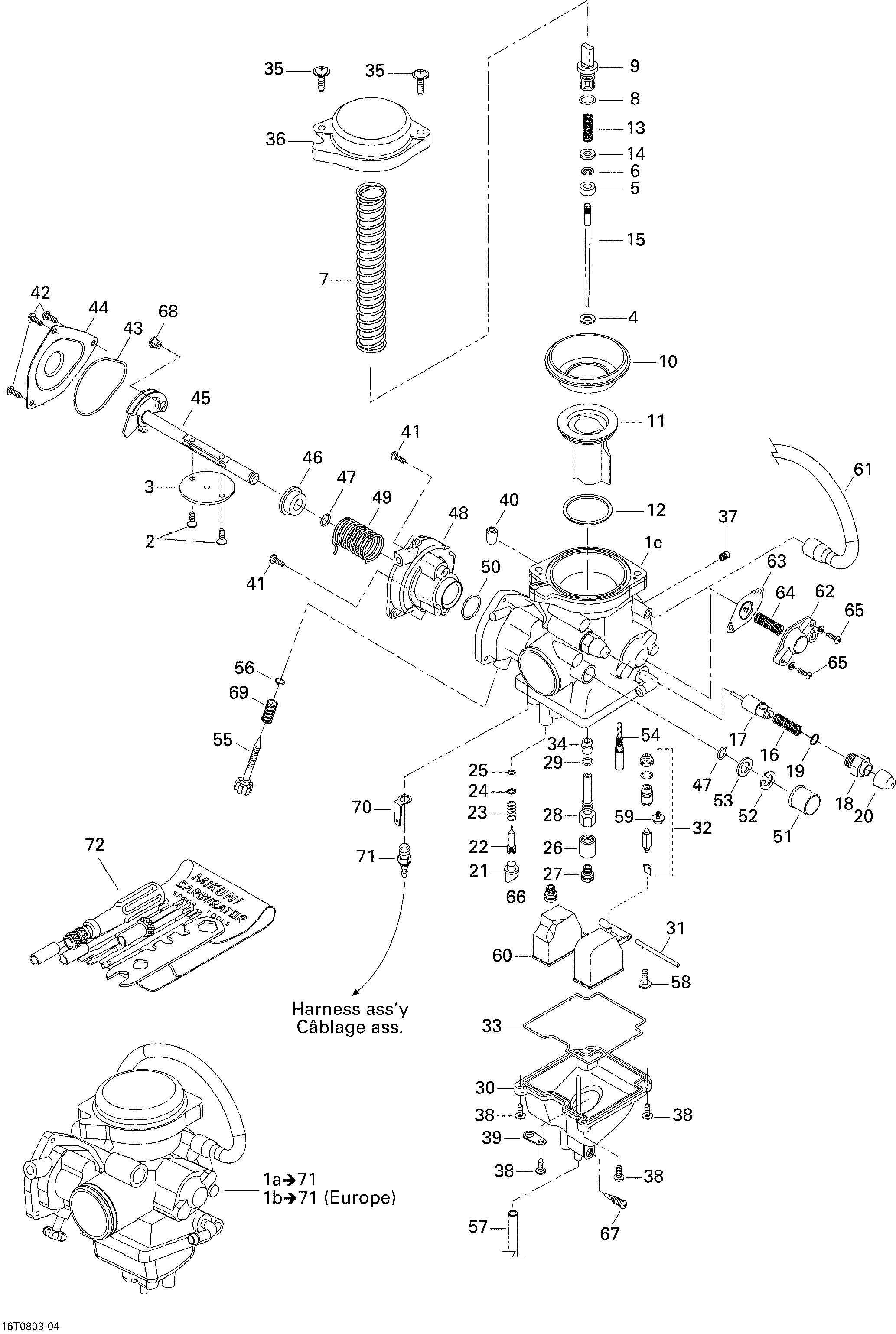

02- Carburetor для BRP Outlander MAX 400 STD - 2008
-
№АртикулНазвание
-
1a707200190 Carburator, Mikuni BSR33-49. Includes 1a to 71Carburator, Mikuni BSR33-49. Includes 1a to 71
-
1b707000402 Carburator CE, Mikuni BSR33-67. Includes 1b to 71, EuropeCarburator CE, Mikuni BSR33-67. Includes 1b to 71, Europe
-
4707200064 WasherWasher
-
5707200065 RingRing
-
6404152200 E-RingE-Ring
-
7404162051 SpringSpring
-
8270500144 O-RingO-Ring
-
9707200067 HolderHolder
-
10707200068 DiaphragmDiaphragm
-
11404162039 Piston ValvePiston Valve
-
12707200070 RingRing
-
13707200071 SpringSpring
-
14707200072 WasherWasher
-
15707200109 Needle J8-5fey01-3Needle J8-5fey01-3
-
15404162073 Needle J8-5fey02-52. EuropeNeedle J8-5fey02-52. Europe
-
16707200144 SpringSpring
-
17404162038 Plunger Ass'yPlunger Ass'y
-
18707200009 Holder GuideHolder Guide
-
19404140200 O-RingO-Ring
-
20707200010 CapCap
-
21707200004 CapCap
-
22707200077 AdjusterAdjuster
-
23707200078 SpringSpring
-
24707200018 WasherWasher
-
25404139900 O-RingO-Ring
-
26707200079 RingRing
-
27404162037 Main Jet 133.8Main Jet 133.8
-
28707200080 Jet HolderJet Holder
-
29270500119 O-RingO-Ring
-
30707200119 Float Body Ass'yFloat Body Ass'y
-
31404123400 PinPin
-
32707200082 Needle Valve 1.0Needle Valve 1.0
-
33707200083 O-RingO-Ring
-
34404162036 Needle JetNeedle Jet
-
34707200121 Jet-needle. EuropeJet-needle. Europe
-
35707200085 ScrewScrew
-
36707200086 Diaphragm CoverDiaphragm Cover
-
37707200188 Pilot Jet 50.0Pilot Jet 50.0
-
37707200177 Pilot Jet 80.0. EuropePilot Jet 80.0. Europe
-
38404159300 ScrewScrew
-
39404162035 PlatePlate
-
40404154900 CapCap
-
42707200091 ScrewScrew
-
43707200092 O-RingO-Ring
-
44707200093 CoverCover
-
54707200100 Pilot Jet 32.5Pilot Jet 32.5
-
54707162074 Pilot Jet 27.5. EuropePilot Jet 27.5. Europe
-
55707200180 Adjuster ScrewAdjuster Screw
-
56707200020 O-RingO-Ring
-
57404162034 HoseHose
-
58404138600 ScrewScrew
-
59404161861 ScrewScrew
-
60707200103 Float Ass'yFloat Ass'y
-
61707200179 HoseHose
-
62707200105 Cover Ass'yCover Ass'y
-
63707200106 Diaphragm Ass'yDiaphragm Ass'y
-
64707200160 Richer SpringRicher Spring
-
65404901400 ScrewScrew
-
66404145800 Main Jet Pwj 80Main Jet Pwj 80
-
67707200024 ScrewScrew
-
68707200058 Cable GuideCable Guide
-
69404101700 SpringSpring
-
70707200164 TerminalTerminal
-
71707200163 Heater ElementHeater Element
-
72404112000 Tool KitTool Kit
