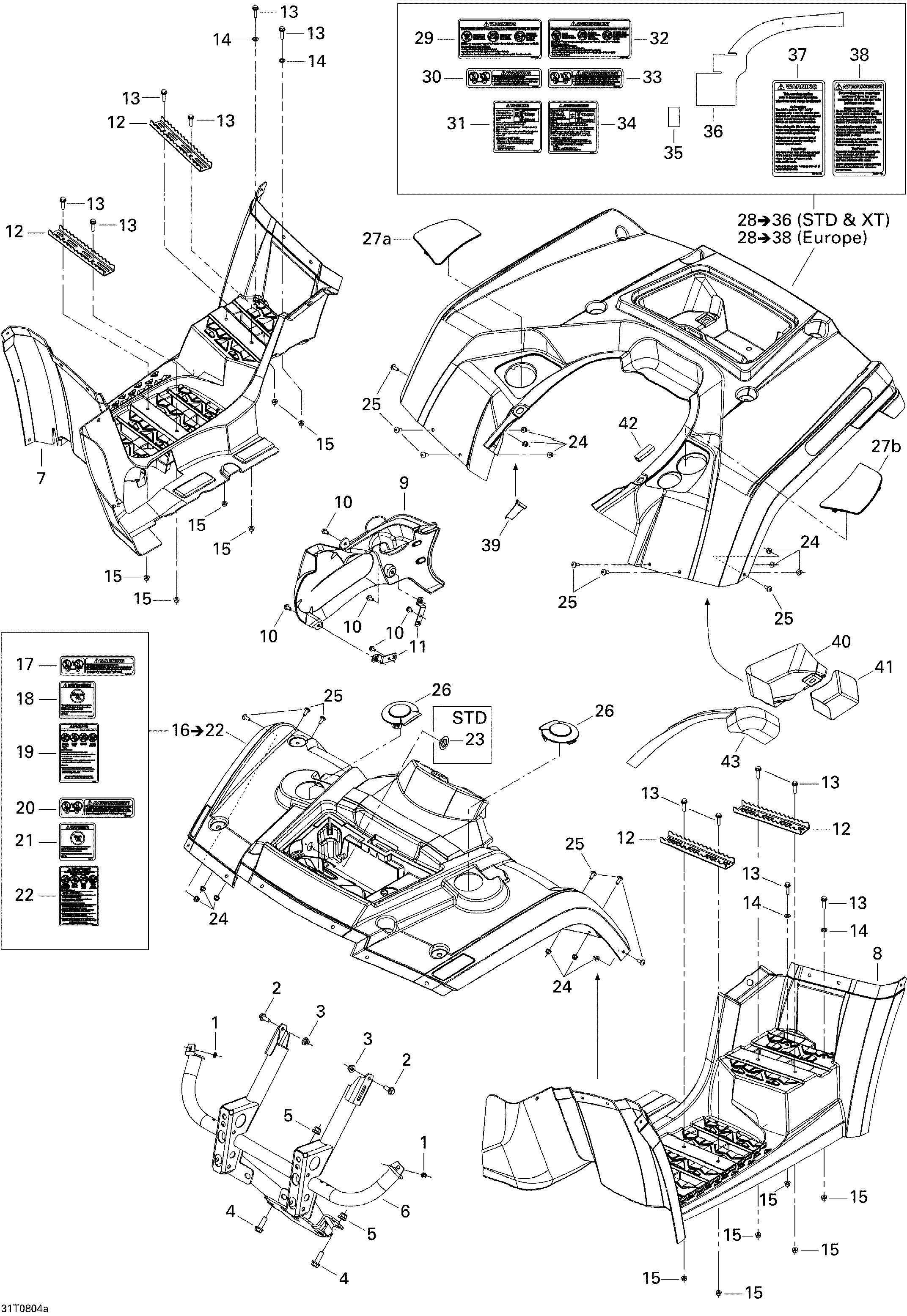

09- Body And Accessories 1, STD для BRP Outlander MAX 400 STD - 2008
-
№АртикулНазвание
-
1732610072 Push NutPush Nut
-
2207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
3233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
4207603044 Hex Flanged Screw M10 X 30Hex Flanged Screw M10 X 30
-
5233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
6705001827 Front BumperFront Bumper
-
7705001981 RH Footboard Ass'yRH Footboard Ass'y
-
8705001940 LH FootboardLH Footboard
-
9705001518 Engine CoverEngine Cover
-
10210261280 Hex Flanged Screw M6 X 12Hex Flanged Screw M6 X 12
-
11705002666 Engine Cover SupportEngine Cover Support
-
12705000428 FootrestFootrest
-
13207662584 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
14234161471 Lock Washer M6, BlackLock Washer M6, Black
-
15233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
16703500531 Front Fender, Red. Includes 16 to 22, Viper RedFront Fender, Red. Includes 16 to 22, Viper Red
-
16703500528 Front Fender, Green. Includes 16 to 22, Laurentian GreenFront Fender, Green. Includes 16 to 22, Laurentian Green
-
16703500526 Front Fender, Yellow. Includes 16 to 22, YellowFront Fender, Yellow. Includes 16 to 22, Yellow
-
17704901089 Warning Label, Load. English VersionWarning Label, Load. English Version
-
17704900453 Warning Label, Front Load. English Version, YellowWarning Label, Front Load. English Version, Yellow
-
18704900642 Warning Label, Under 16 Years Old. English VersionWarning Label, Under 16 Years Old. English Version
-
19704900904 Warning Label, Death And Injuries. English VersionWarning Label, Death And Injuries. English Version
-
20704901090 Warning Label, Load. French VersionWarning Label, Load. French Version
-
21704900436 Warning Label, Under 16 Years Old. French VersionWarning Label, Under 16 Years Old. French Version
-
23293000103 Plastic Cap. STDPlastic Cap. STD
-
24233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
25250000261 Torx Screw M6 X 16Torx Screw M6 X 16
-
26705001999 Front CapFront Cap
-
27a705001900 RH CapRH Cap
-
28703500559 Rear Fender Kit, Red. Includes 28 to 36, Viper RedRear Fender Kit, Red. Includes 28 to 36, Viper Red
-
28703500560 Rear Fender Kit, Yellow. Includes 28 to 36 YellowRear Fender Kit, Yellow. Includes 28 to 36 Yellow
-
28703500561 Rear Fender Kit, Green. Includes 28 to 36, Laurentian GreenRear Fender Kit, Green. Includes 28 to 36, Laurentian Green
-
28703500565 Rear Fender Kit, Red. Includes 28 to 38, Viper Red, EuropeRear Fender Kit, Red. Includes 28 to 38, Viper Red, Europe
-
28703500566 Rear Fender, Yellow. Includes 28 to 38, Yellow, EuropeRear Fender, Yellow. Includes 28 to 38, Yellow, Europe
-
28703500567 Rear Fender, Green. Includes 28 to 38, Laurentian Green, EuropeRear Fender, Green. Includes 28 to 38, Laurentian Green, Europe
-
29704901113 Warning Label, Under 12 Years Old. English VersionWarning Label, Under 12 Years Old. English Version
-
30704901089 Warning Label, Load. English VersionWarning Label, Load. English Version
-
31704901120 Warning Label, Tire Pressure. English VersionWarning Label, Tire Pressure. English Version
-
32704901090 Warning Label, Load. French VersionWarning Label, Load. French Version
-
33704901122 Warning Label, Under 12 Years Old. French VersionWarning Label, Under 12 Years Old. French Version
-
34704901121 Warning Label, Tire Pressure. French VersionWarning Label, Tire Pressure. French Version
-
35705000809 Reflective SheetReflective Sheet
-
36705002043 Reflective SheetReflective Sheet
-
37704901112 Warning Label, Road Use. English VersionWarning Label, Road Use. English Version
-
38704901158 Warning Label, Road Use. French VersionWarning Label, Road Use. French Version
-
39705000809 Reflective SheetReflective Sheet
-
40705002190 Reflective SheetReflective Sheet
-
41705002188 Reflective SheetReflective Sheet
-
42293200093 Neoprene SealNeoprene Seal
-
43705002043 Reflective SheetReflective Sheet
