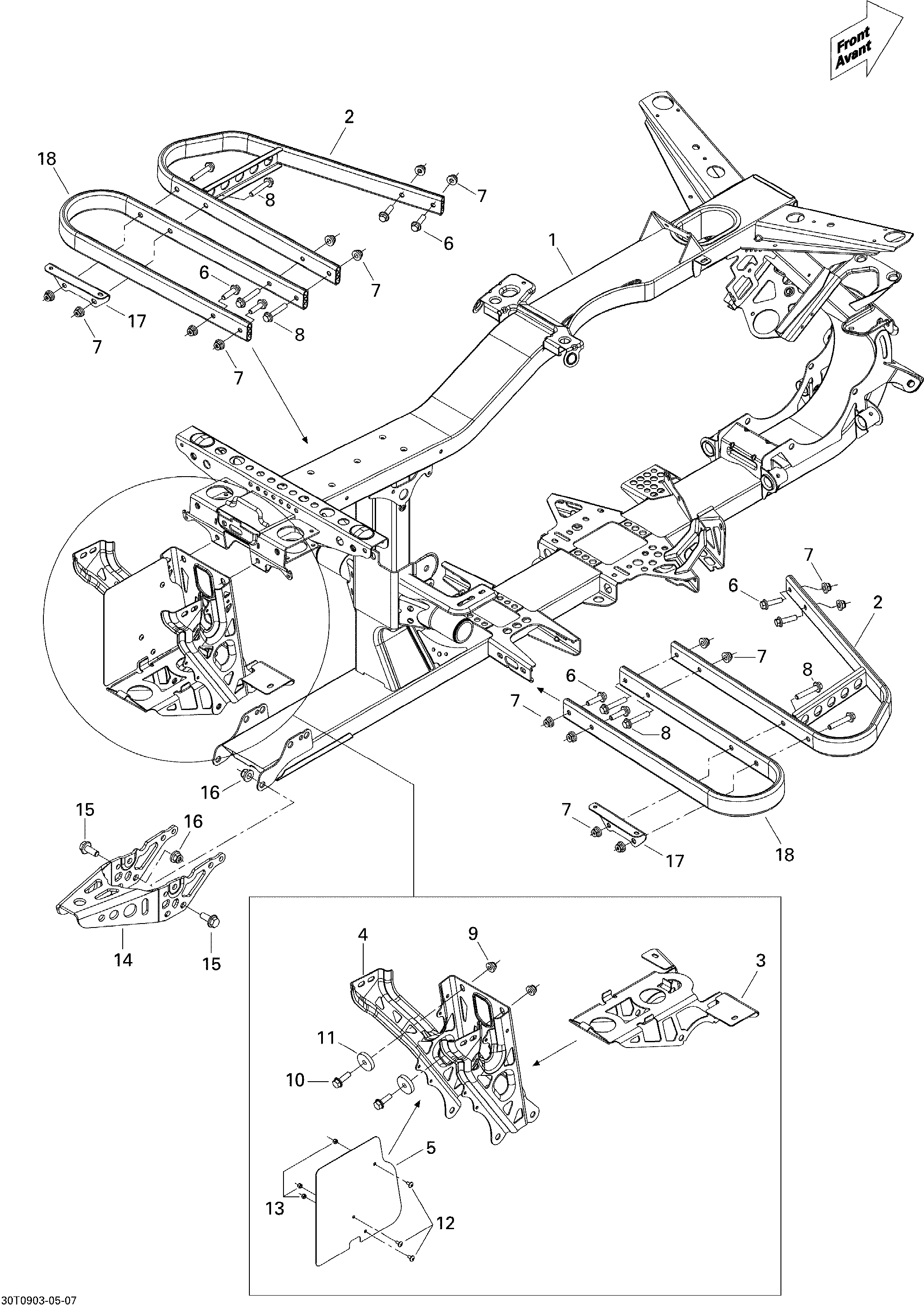

09- Frame для BRP Outlander 650 EFI XT - 2009

№

Артикул

Название
1

705201727 Frame, Black

Frame, Black

0 ₽
2

705201635 Footrest

Footrest

0 ₽
3

705201105 Battery Support Base

Battery Support Base

0 ₽
4

705201603 Rear Battery Support, Black

Rear Battery Support, Black

0 ₽
5

705200936 Heat Shield

Heat Shield

0 ₽
6

207683044 Hex. Flanged Screw M8 X 30

Hex. Flanged Screw M8 X 30

600 ₽
7

233281414 Hex. Flanged Elastic Nut M8

Hex. Flanged Elastic Nut M8

490 ₽
8

207684544 Hex. Flanged Screw M8 X 45

Hex. Flanged Screw M8 X 45

1 330 ₽
9

233281416 Elastic Flanged Nut M8

Elastic Flanged Nut M8

540 ₽
10

207582586 Hex. Flanged Screw M8 X 25, Scotch Grip

Hex. Flanged Screw M8 X 25, Scotch Grip

670 ₽
11

705201544 Spacer

Spacer

700 ₽
12

250000127 Torx Screw M4 X 8

Torx Screw M4 X 8

110 ₽
13

232541484 Elastic Stop Nut M4

Elastic Stop Nut M4

70 ₽
14

715000286 Trailer Hook

Trailer Hook

3 980 ₽
15

207602544 Hex. Flanged Screw M10 X 25

Hex. Flanged Screw M10 X 25

610 ₽
16

233201416 Hex. Flanged Elastic Nut M10

Hex. Flanged Elastic Nut M10

820 ₽
17

705201535 Support

Support

0 ₽
18

705200896 Rear Footrest

Rear Footrest

0 ₽
