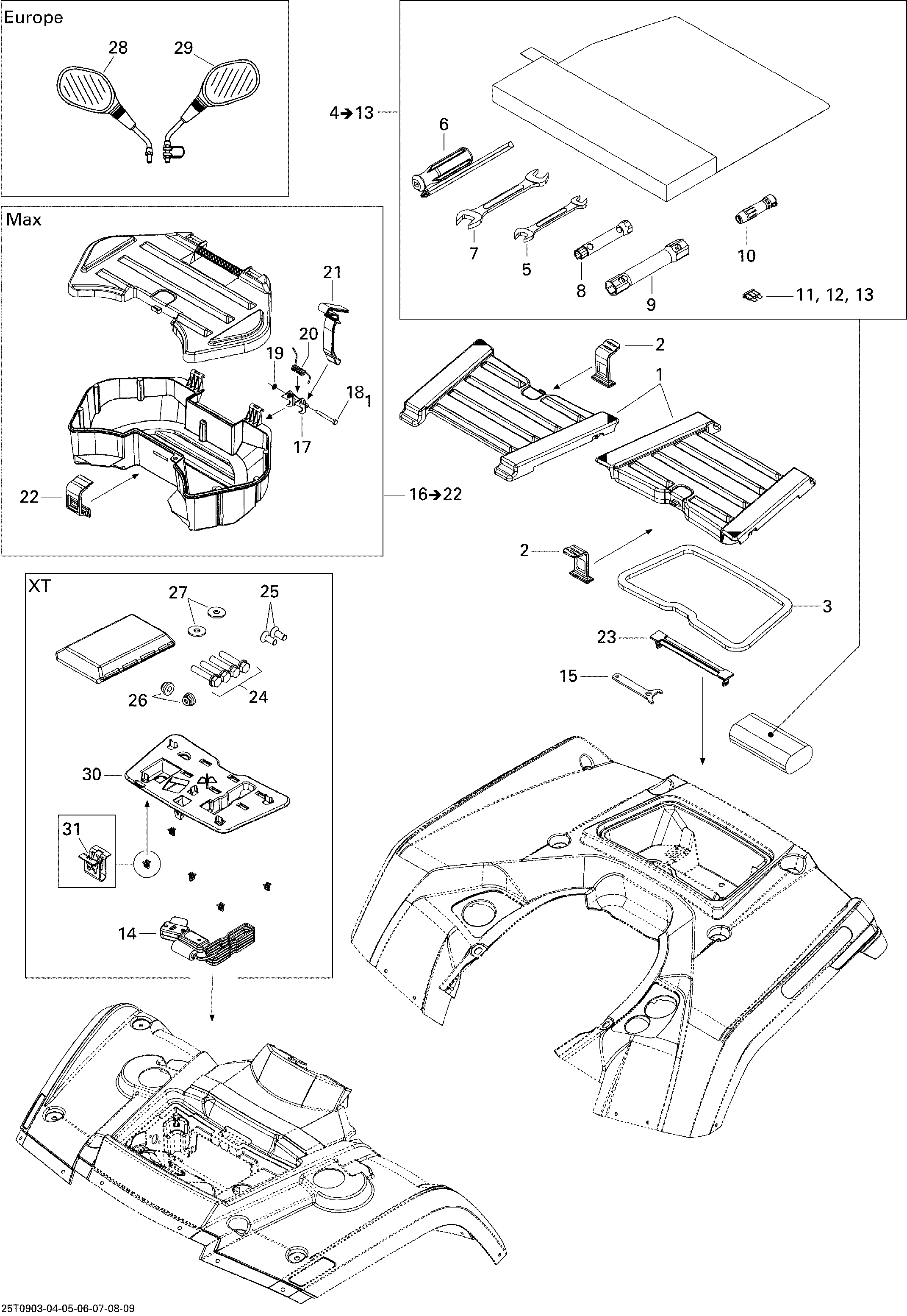

09- Front and Rear Trays XT для BRP Outlander 650 EFI XT - 2009
-
№АртикулНазвание
-
1705001853 Storage CoverStorage Cover
-
2708200061 Storage Cover LatchStorage Cover Latch
-
3293250192 Neoprene SealNeoprene Seal
-
4704700096 Tool Kit. Includes 4 to 13Tool Kit. Includes 4 to 13
-
5529000002 Fork Wrench 10/13 mmFork Wrench 10/13 mm
-
6529000004 Driver ScrewDriver Screw
-
7529000003 Fork Wrench 15/17 mmFork Wrench 15/17 mm
-
8529014900 Socket Wrench 10/13 mmSocket Wrench 10/13 mm
-
9295000175 Socket Wrench 16/18 mmSocket Wrench 16/18 mm
-
10704700003 Pressure GaugePressure Gauge
-
11410917200 Fuse, 30 AmperesFuse, 30 Amperes
-
12409003900 Fuse, 20 AmperesFuse, 20 Amperes
-
13278000343 Fuse, 15 AmperesFuse, 15 Amperes
-
14710001002 Remote Control. XTRemote Control. XT
-
15529000035 Adjustement WrenchAdjustement Wrench
-
23708200062 Tool Kit LatchTool Kit Latch
-
24207584044 Hex. Flanged Screw M8x40, Scotch Grip. XTHex. Flanged Screw M8x40, Scotch Grip. XT
-
25235482084 Torx Screw M8 X 20. XTTorx Screw M8 X 20. XT
-
26233281414 Hex. Flanged Elastic Nut M8. XTHex. Flanged Elastic Nut M8. XT
-
27234082410 Flat Washer 8 mm. XTFlat Washer 8 mm. XT
-
28709400406 LH Mirror. EuropeLH Mirror. Europe
-
29709400407 RH Mirror. EuropeRH Mirror. Europe
-
30708200075 Support. XTSupport. XT
-
31517302785 Clip. XTClip. XT
