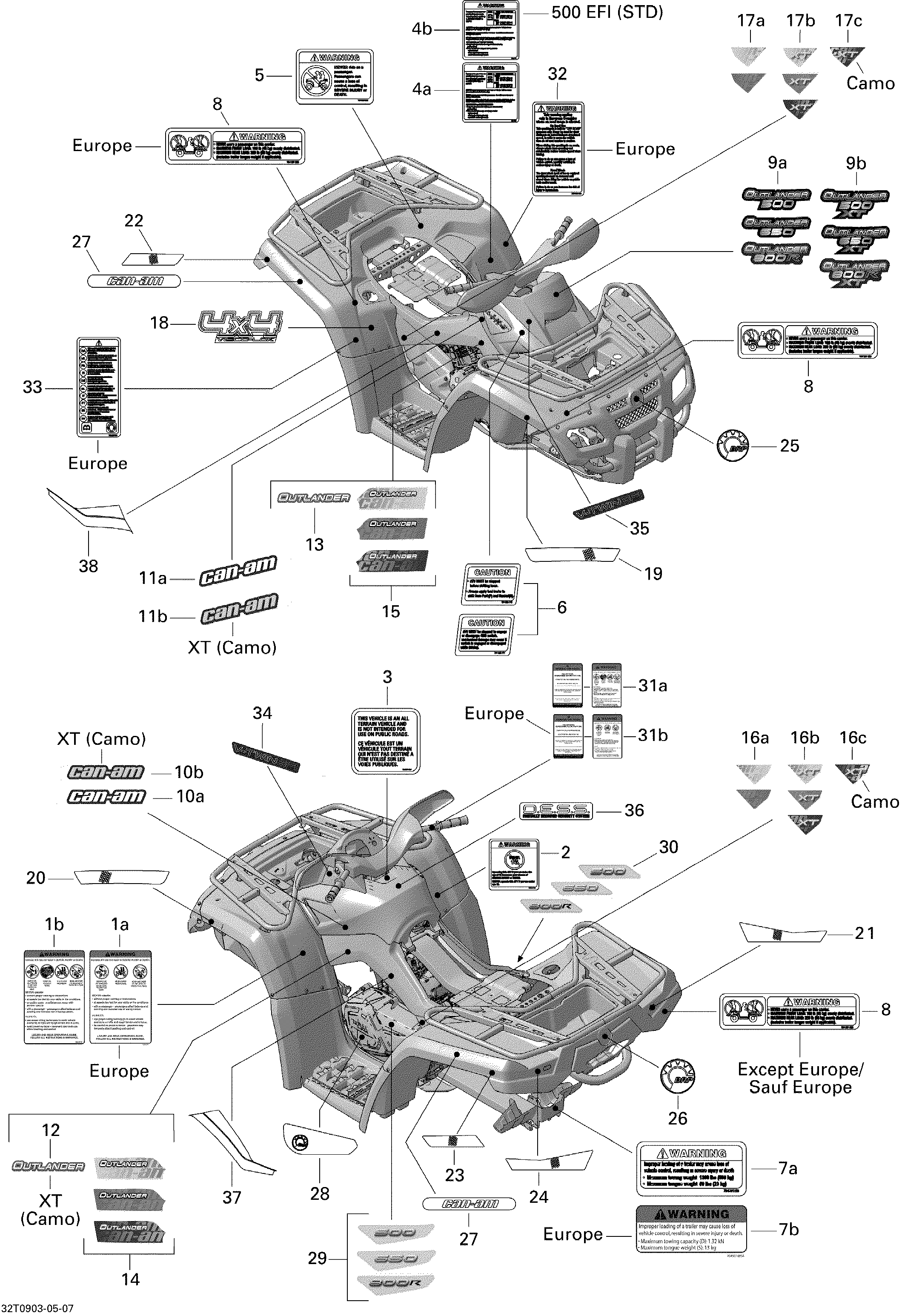

09- Decals XT для BRP Outlander 800R EFI XT - 2009
-
№АртикулНазвание
-
1b704901878 Warning Decal, Death And Injuries. Except EuropeWarning Decal, Death And Injuries. Except Europe
-
2704900011 Warning Decal, Under 16 Years OldWarning Decal, Under 16 Years Old
-
3704901438 Transport Canada Label. Except EuropeTransport Canada Label. Except Europe
-
4a704901267 Warning Label, Tire PressureWarning Label, Tire Pressure
-
5704900005 Warning Decal, PassengerWarning Decal, Passenger
-
6704900434 Caution Decal, Lever And 4wd SwitchCaution Decal, Lever And 4wd Switch
-
7A704901123 Warning Decal, Trailer. Except EuropeWarning Decal, Trailer. Except Europe
-
8704901089 Warning Decal, LoadWarning Decal, Load
-
9b704901647 Console Decal, 800 XT. 800R EFI XTConsole Decal, 800 XT. 800R EFI XT
-
10a704901655 LH Center Panel Decal. STD, XTLH Center Panel Decal. STD, XT
-
10b704901660 LH Center Panel Decal. XT CamoLH Center Panel Decal. XT Camo
-
11a704901830 RH Center Panel Decal. STD, XTRH Center Panel Decal. STD, XT
-
11b704901832 RH Center Panel Decal. XT CamoRH Center Panel Decal. XT Camo
-
12704901685 LH Front Side Decal. CamoLH Front Side Decal. Camo
-
13704901833 RH Front Side Decal. CamoRH Front Side Decal. Camo
-
14704901687 LH Front Side Decal. YellowLH Front Side Decal. Yellow
-
14704901689 LH Front Side Decal. Viper RedLH Front Side Decal. Viper Red
-
14704901691 LH Front Side Decal. BlackLH Front Side Decal. Black
-
15704901686 RH Front Side Decal. YellowRH Front Side Decal. Yellow
-
15704901688 RH Front Side Decal. Viper RedRH Front Side Decal. Viper Red
-
15704901690 RH Front Side Decal. BlackRH Front Side Decal. Black
-
16b704901667 LH Side Decal. XT YellowLH Side Decal. XT Yellow
-
16b704901669 LH Side Decal. XT Viper RedLH Side Decal. XT Viper Red
-
16b704901671 LH Side Decal. XT BlackLH Side Decal. XT Black
-
16c704901675 LH Side Decal. CamoLH Side Decal. Camo
-
17b704901666 RH Side Decal. XT YellowRH Side Decal. XT Yellow
-
17b704901668 RH Side Decal. XT Viper RedRH Side Decal. XT Viper Red
-
17b704901670 RH Side Decal. XT BlackRH Side Decal. XT Black
-
17c704901674 RH Side Decal. CamoRH Side Decal. Camo
-
18704901219 4x4 Decal4x4 Decal
-
19704901422 RH Reflector (Long)RH Reflector (Long)
-
20704901421 LH Reflector (Long)LH Reflector (Long)
-
21704901426 RH Rear Reflector. Except EuropeRH Rear Reflector. Except Europe
-
22704901424 RH Rear ReflectorRH Rear Reflector
-
23704901423 LH Rear ReflectorLH Rear Reflector
-
24704901425 LH Rear Reflector. Except EuropeLH Rear Reflector. Except Europe
-
25219902469 BRP Logo, 68 mmBRP Logo, 68 mm
-
26219902672 BRP Logo 68 mmBRP Logo 68 mm
-
27704901271 Can-am LabelCan-am Label
-
27704901273 Signature Label. CamoSignature Label. Camo
-
28704900963 Decal, CVTDecal, CVT
-
29704901552 Decal, CVT 800R. 800R EFIDecal, CVT 800R. 800R EFI
-
30704901553 Decal, Engine Cover, 800R. 800R EFIDecal, Engine Cover, 800R. 800R EFI
-
31a704901859 Warning Label, General Use Model. Except EuropeWarning Label, General Use Model. Except Europe
-
34704901693 LH Console DecalLH Console Decal
-
35704901692 RH Console DecalRH Console Decal
-
36704901117 DESS DecalDESS Decal
-
37704901841 LH Side Protector. BlackLH Side Protector. Black
-
38704901842 RH Side Protector. BlackRH Side Protector. Black
