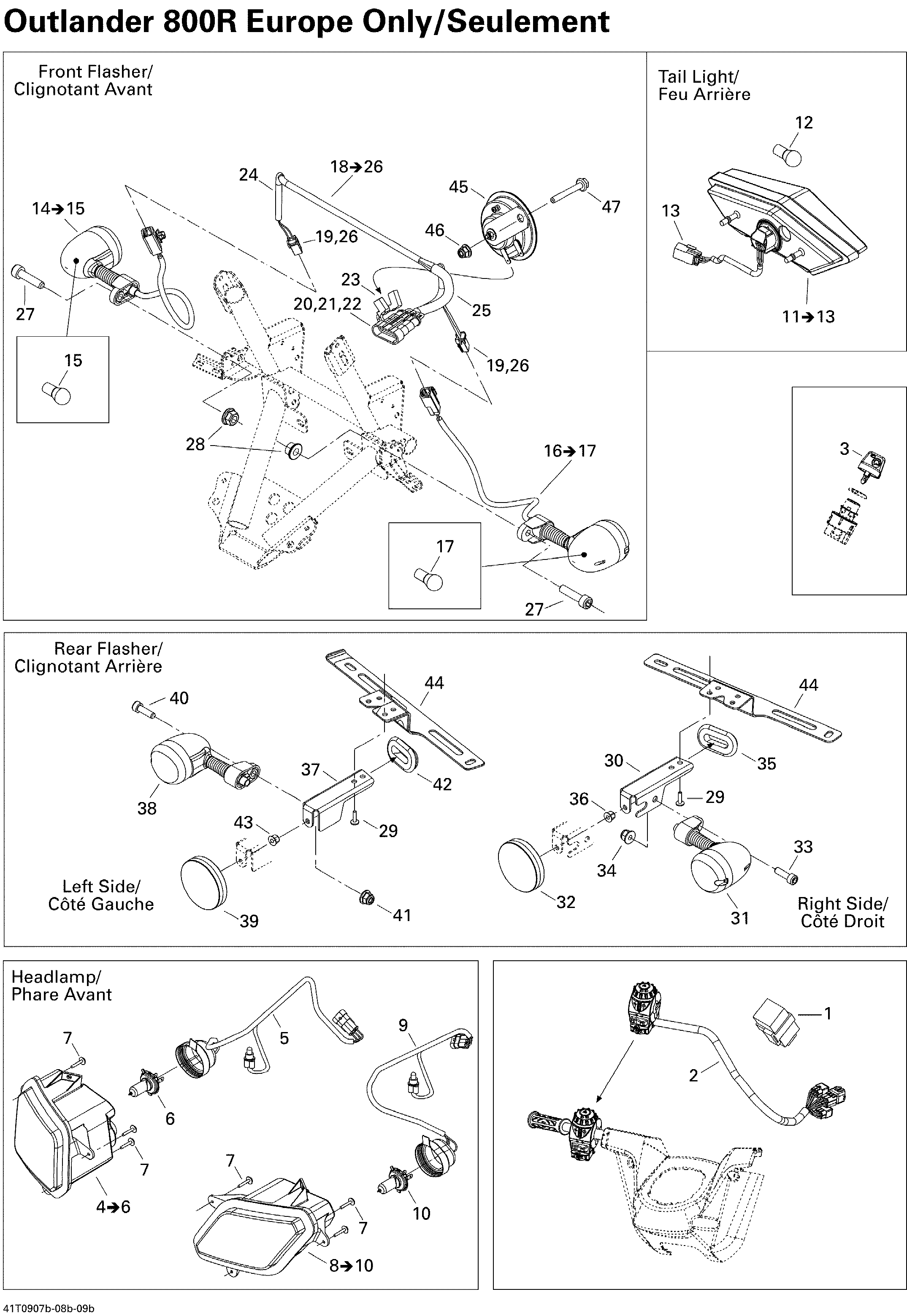

10- Electrical Accessories Euro для BRP Outlander 800R EFI XT - 2009
-
№АртикулНазвание
-
1710001447 Flasher UnitFlasher Unit
-
2710001428 Multi-fonction HandleMulti-fonction Handle
-
3710000817 Black-Electronic KeyBlack-Electronic Key
-
4710000861 RH Headlamp. Includes 4 to 6RH Headlamp. Includes 4 to 6
-
5710000923 Headlamp HarnessHeadlamp Harness
-
6710000871 Bulb, 12V 35/35WBulb, 12V 35/35W
-
7250000101 Plastite Screw Type K-40, M4 X 25Plastite Screw Type K-40, M4 X 25
-
8710000862 LH Headlamp. Includes 8 to 10LH Headlamp. Includes 8 to 10
-
9710000923 Headlamp HarnessHeadlamp Harness
-
10710000871 Bulb, 12V 35/35WBulb, 12V 35/35W
-
11710001204 Tail Light Housing. includes 11 to 13Tail Light Housing. includes 11 to 13
-
12410504100 Tail Light BulbTail Light Bulb
-
13515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
14710001079 Flashing LightFlashing Light
-
15415129258 BulbBulb
-
16710001080 Flashing LightFlashing Light
-
17415129258 BulbBulb
-
18710001495 Front Harness Ass'y. Includes 18 to 26Front Harness Ass'y. Includes 18 to 26
-
19515175231 Female TerminalFemale Terminal
-
20409012900 Male TerminalMale Terminal
-
21710000576 Housing, 4circuitsHousing, 4circuits
-
22278001013 Wire SealWire Seal
-
23409010300 Female TerminalFemale Terminal
-
24515175442 Tubing 6 mmTubing 6 mm
-
25409901700 Tubing 9 mmTubing 9 mm
-
26515176296 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
27205062544 Socket Head Screw M6 X 25Socket Head Screw M6 X 25
-
28233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
29390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
30710001329 BracketBracket
-
31710001079 Flashing LightFlashing Light
-
32705002408 Reflector, RedReflector, Red
-
33205062044 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
34233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
35705002665 Oblong GrommetOblong Grommet
-
36233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
37710001330 BracketBracket
-
38710001080 Flashing LightFlashing Light
-
39705002408 Reflector, RedReflector, Red
-
40205062044 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
41233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
42705002665 Oblong GrommetOblong Grommet
-
43233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
44710001241 BracketBracket
-
45710001281 HornHorn
-
46233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
47207664544 Flanged Hex. Screw M6 X 45Flanged Hex. Screw M6 X 45
