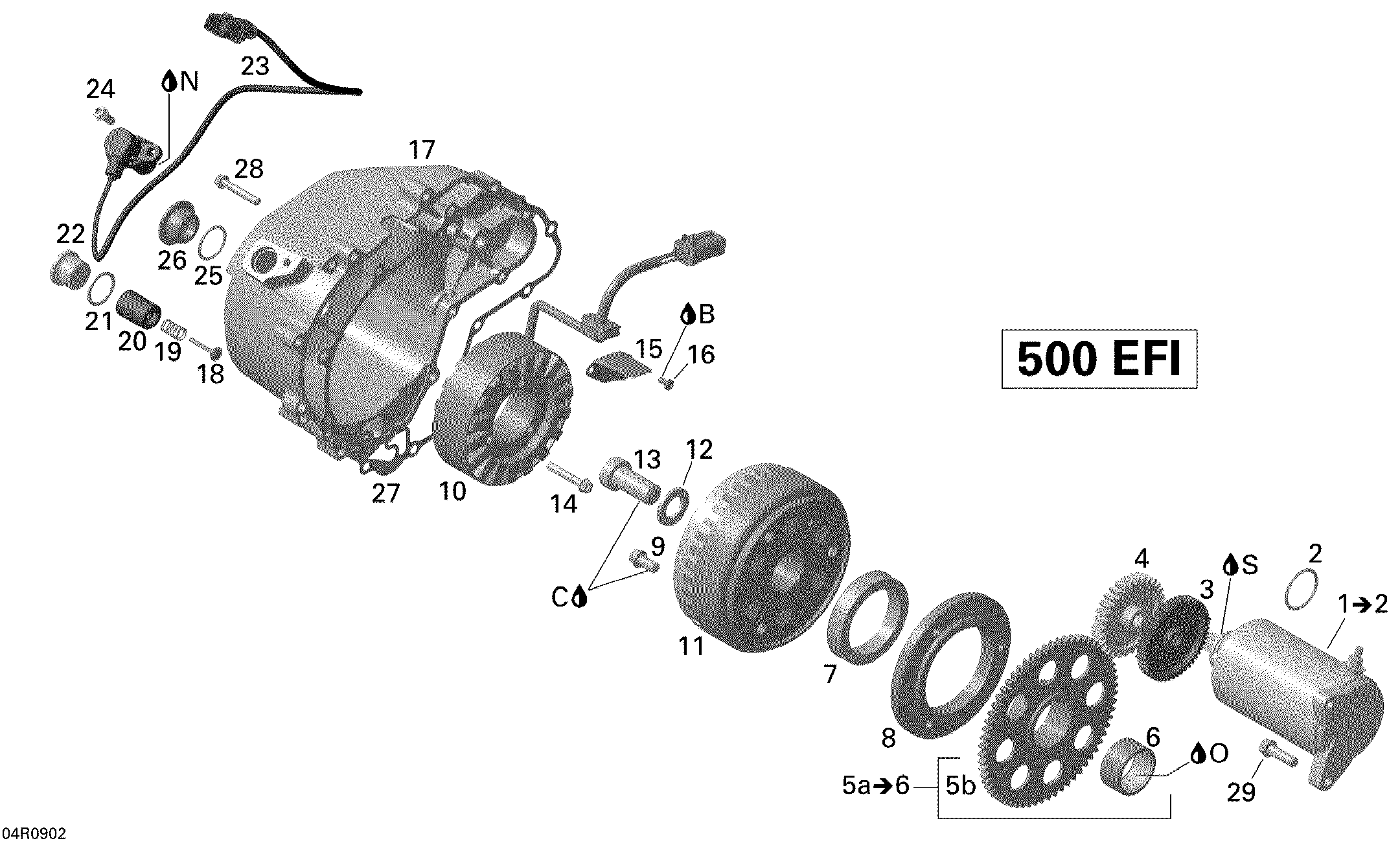

03- Magneto для BRP Outlander Max 500 EFI - 2009
-
№АртикулНазвание
-
1420684560 Starter Ass'y. Includes 1 to 2Starter Ass'y. Includes 1 to 2
-
2420250140 O-RingO-Ring
-
3420634740 Double GearDouble Gear
-
4420634604 Gear, 30 TeethGear, 30 Teeth
-
5a420434235 Free Wheel Gear, 64 Teeth. Includes 5a to 6Free Wheel Gear, 64 Teeth. Includes 5a to 6
-
7420659112 Sprag ClutchSprag Clutch
-
8420659260 Sprag Clutch HousingSprag Clutch Housing
-
9420440852 Flanged Torx Screw M8 X 16Flanged Torx Screw M8 X 16
-
10420296907 Stator PlateStator Plate
-
11420296905 FlywheelFlywheel
-
12420627270 ShimShim
-
13420241545 Socket Head Screw M16 X 35Socket Head Screw M16 X 35
-
14420641258 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
15420251880 Cable Inner CoverCable Inner Cover
-
16420240195 Tapping Screw M4 X 8Tapping Screw M4 X 8
-
17420611132 CoverCover
-
18420656370 Pressure Relief ValvePressure Relief Valve
-
19420939480 Compression SpringCompression Spring
-
20420256486 Housing ValveHousing Valve
-
21420650465 Gasket RingGasket Ring
-
22420640270 Screw PlugScrew Plug
-
23420966570 Crankshaft Position SensorCrankshaft Position Sensor
-
24420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
25420430782 O-RingO-Ring
-
26420241630 Screw PlugScrew Plug
-
27420651200 GasketGasket
-
28420641258 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
29420440372 Flanged Torx Screw M8 X 25Flanged Torx Screw M8 X 25
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
C413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
N293550030 Grease, Super LubeGrease, Super Lube
-
S293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
