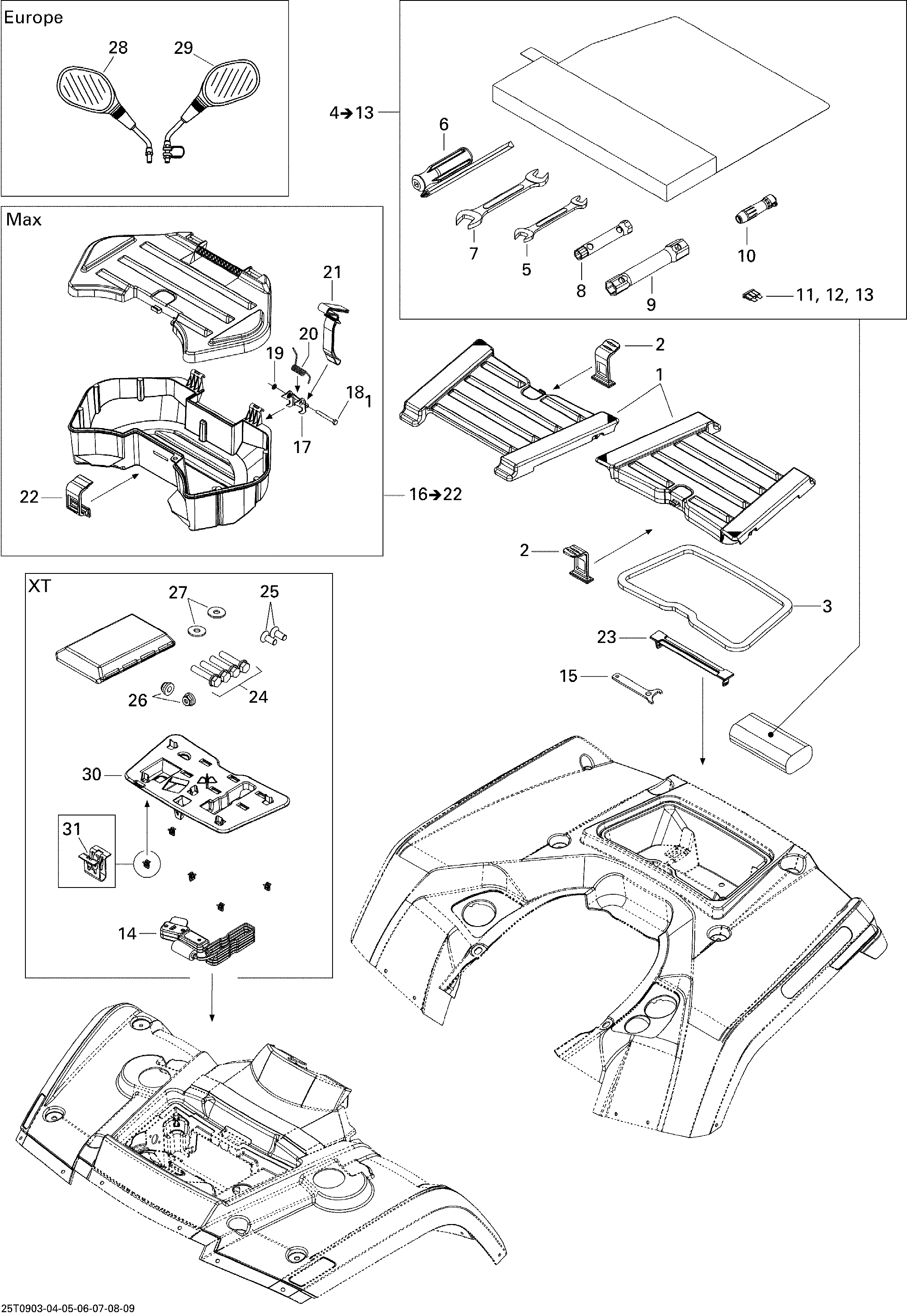

09- Front and Rear Trays STD для BRP Outlander Max 500 EFI - 2009
-
№АртикулНазвание
-
1705001853 Storage CoverStorage Cover
-
2708200061 Storage Cover LatchStorage Cover Latch
-
3293250192 Neoprene SealNeoprene Seal
-
4704700096 Tool Kit. Includes 4 to 13Tool Kit. Includes 4 to 13
-
5529000002 Fork Wrench 10/13 mmFork Wrench 10/13 mm
-
6529000004 Driver ScrewDriver Screw
-
7529000003 Fork Wrench 15/17 mmFork Wrench 15/17 mm
-
8529014900 Socket Wrench 10/13 mmSocket Wrench 10/13 mm
-
9295000175 Socket Wrench 16/18 mmSocket Wrench 16/18 mm
-
10704700003 Pressure GaugePressure Gauge
-
11410917200 Fuse, 30 AmperesFuse, 30 Amperes
-
12409003900 Fuse, 20 AmperesFuse, 20 Amperes
-
13278000343 Fuse, 15 AmperesFuse, 15 Amperes
-
15529000035 Adjustement WrenchAdjustement Wrench
-
16708200072 Box Ass'y. Max, Includes 16 to 22Box Ass'y. Max, Includes 16 to 22
-
17708200066 LatchLatch
-
18207065544 Hex. Screw M6 X 55Hex. Screw M6 X 55
-
19732610072 Push NutPush Nut
-
20708000369 SpringSpring
-
21510004495 BeltBelt
-
22708200061 Storage Cover LatchStorage Cover Latch
-
23708200062 Tool Kit LatchTool Kit Latch
-
28709400406 LH Mirror. EuropeLH Mirror. Europe
-
29709400407 RH Mirror. EuropeRH Mirror. Europe
