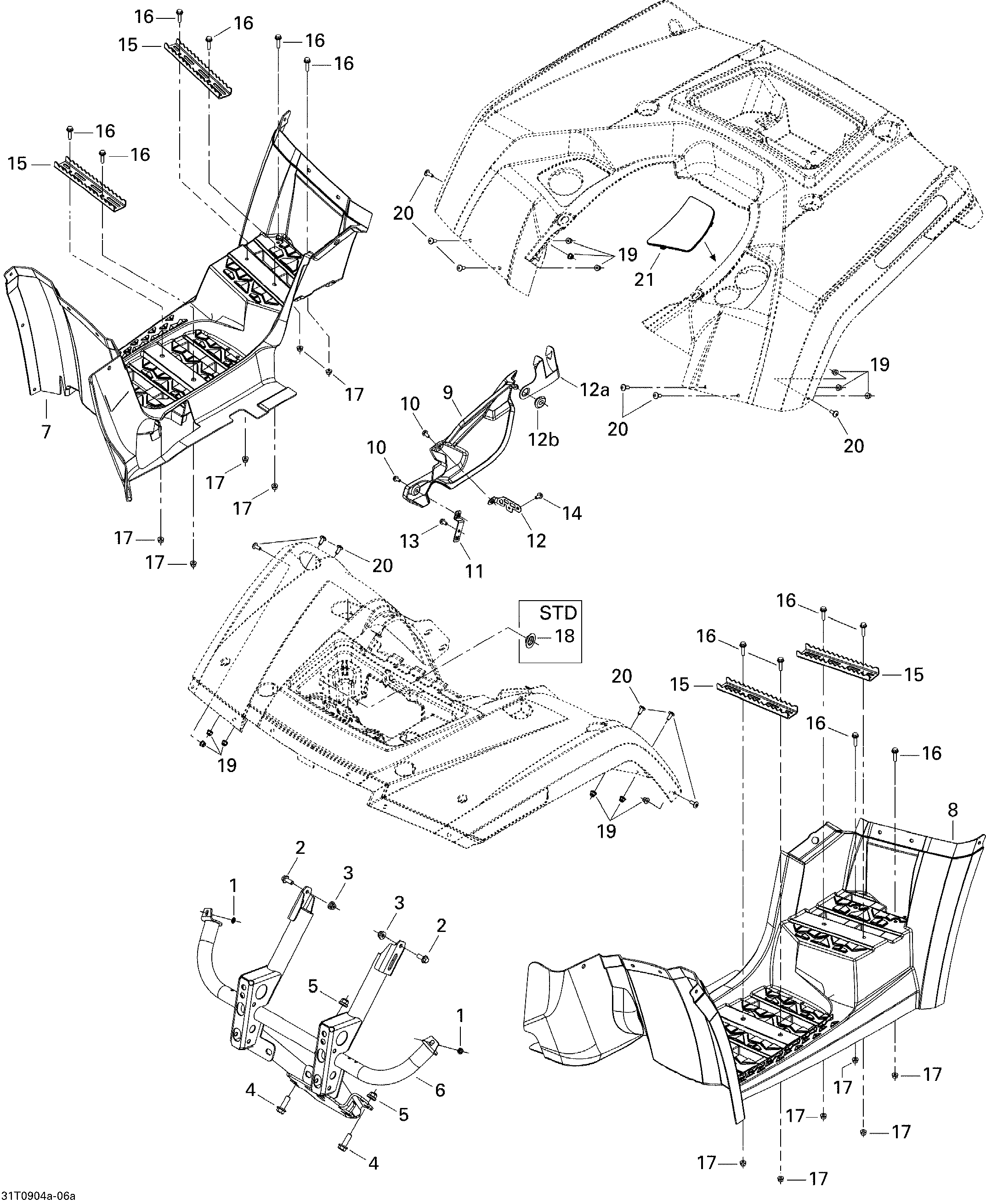

09- Body And Accessories 1, STD для BRP Outlander Max 650 EFI - 2009
-
№АртикулНазвание
-
1732610072 Push NutPush Nut
-
2207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
3233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
4207603044 Hex. Flanged Screw M10 X 30Hex. Flanged Screw M10 X 30
-
5233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
6705003196 Front BumperFront Bumper
-
7705001981 RH Footboard Ass'yRH Footboard Ass'y
-
8705002488 LH FootboardLH Footboard
-
9705002534 Engine CoverEngine Cover
-
10210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
11705002666 Engine Cover SupportEngine Cover Support
-
12705002667 Engine Cover SupportEngine Cover Support
-
12a705002121 Engine Cover SupportEngine Cover Support
-
12b705005156 Oblong WasherOblong Washer
-
13210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
14207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
15705000428 FootrestFootrest
-
16207662584 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
17233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
18293000103 Plastic Cap. STDPlastic Cap. STD
-
19233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
20250000261 Torx Screw M6 X 16Torx Screw M6 X 16
-
21705001910 LH Cap, BlackLH Cap, Black
