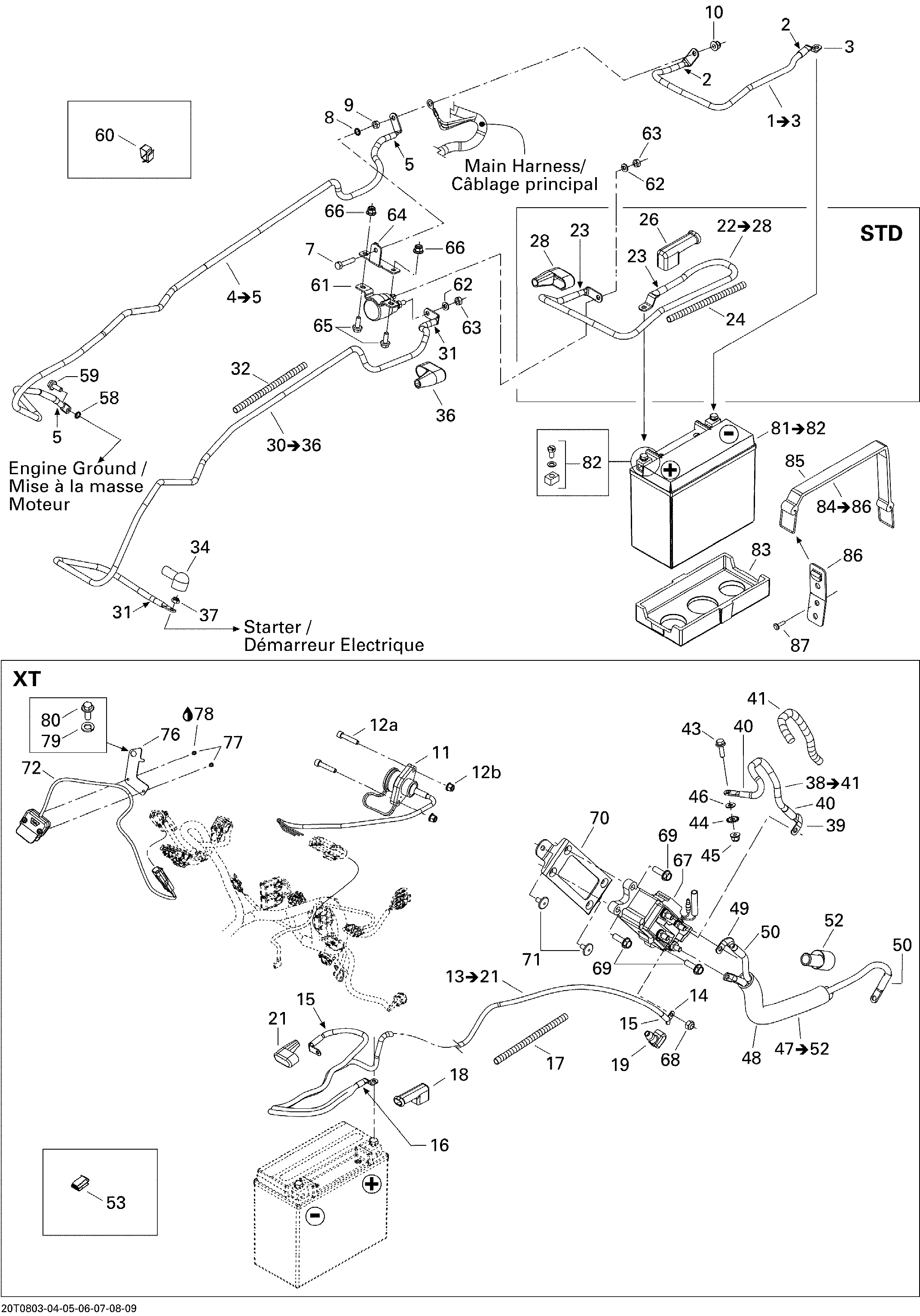

10- Electrical System STD для BRP Outlander Max 650 EFI - 2009
-
№АртикулНазвание
-
1710000830 Ground Cable, Battery/frame. Includes 1 to 3Ground Cable, Battery/frame. Includes 1 to 3
-
2710000483 Shrink TubingShrink Tubing
-
3710000518 Open BarrelOpen Barrel
-
4710000844 Ground Cable. Includes 4 to 5Ground Cable. Includes 4 to 5
-
5710000483 Shrink TubingShrink Tubing
-
7207162544 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
8234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
9232061414 Hex. Nut M6Hex. Nut M6
-
10233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
22710001483 Positive Cable. STD, Includes 22 to 28Positive Cable. STD, Includes 22 to 28
-
23710000483 Shrink Tubing. STDShrink Tubing. STD
-
24710000497 Protector Tube, 9 mm. STDProtector Tube, 9 mm. STD
-
26710000516 Protector Cap. STDProtector Cap. STD
-
28710000902 Protector Cap. STDProtector Cap. STD
-
30710000903 Positive Cable, Starter Relay/starter. Includes 30 to 36Positive Cable, Starter Relay/starter. Includes 30 to 36
-
31710000483 Shrink TubingShrink Tubing
-
32710000497 Protector Tube, 9 mmProtector Tube, 9 mm
-
34710000526 Protector CapProtector Cap
-
36710000902 Protector CapProtector Cap
-
37232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
58234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
59207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
60414227300 ClipClip
-
61710001364 Starter RelayStarter Relay
-
62234161601 Lock Washer Helical M6Lock Washer Helical M6
-
63232061600 Hex. Nut M6Hex. Nut M6
-
64710001260 Solenoid SupportSolenoid Support
-
65207661244 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
66233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
81410301203 Battery, 18 Amperes. Includes 81 to 82Battery, 18 Amperes. Includes 81 to 82
-
82295500849 Battery Fastener KitBattery Fastener Kit
-
83710000279 Insulator PadInsulator Pad
-
84710001033 Strap Ass'yStrap Ass'y
-
85293850097 Retainer StrapRetainer Strap
-
86293850030 Strap ClipStrap Clip
-
87390402400 Pop Rivet 3/16''Pop Rivet 3/16''
