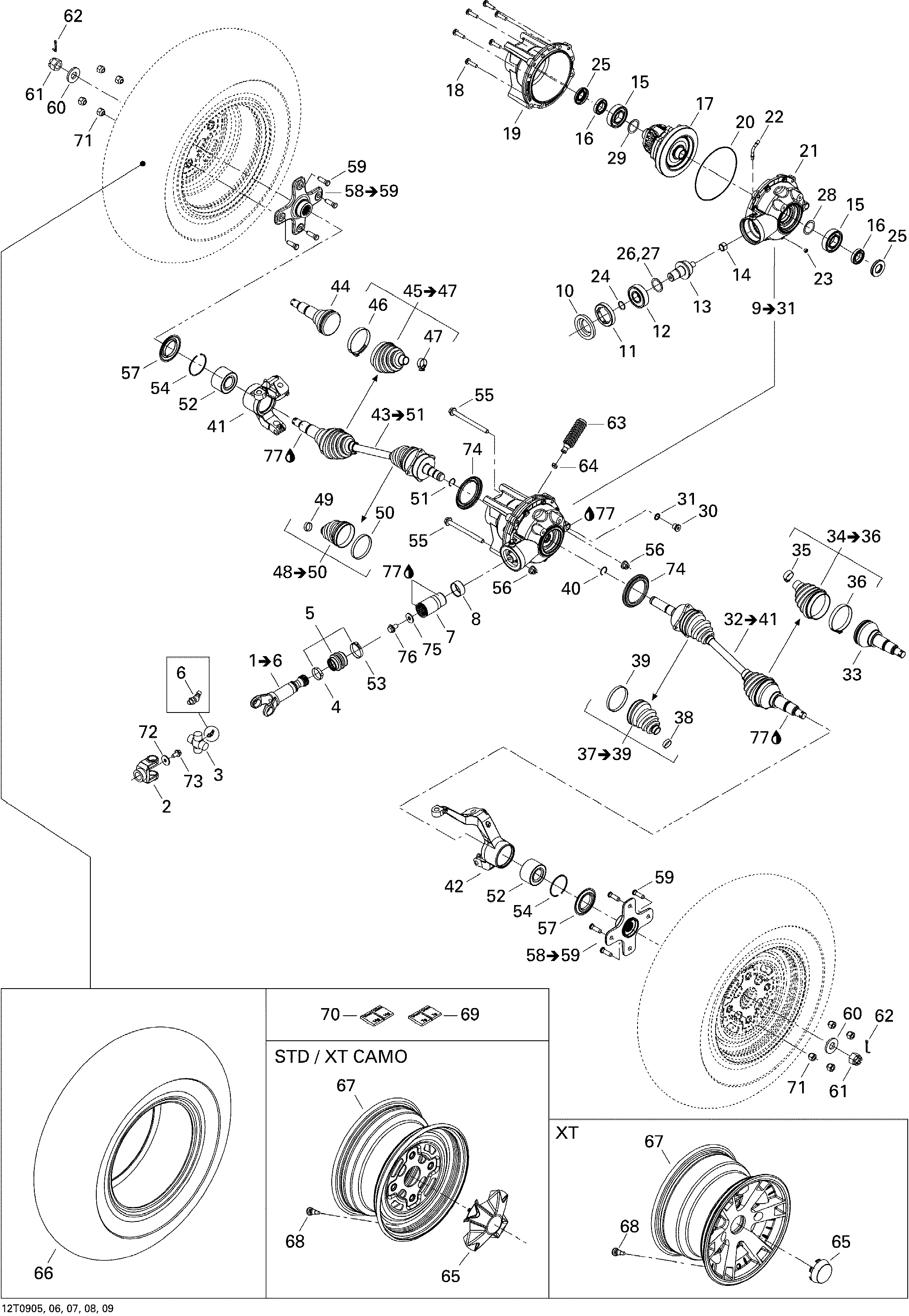

07- Drive System, Front STD для BRP Outlander Max 800R EFI - 2009
-
№АртикулНазвание
-
1705400551 Front Drive Axle Ass'yFront Drive Axle Ass'y
-
2705400391 Yoke, Fixed JointYoke, Fixed Joint
-
3703000024 Unit Pack KitUnit Pack Kit
-
4293650138 Oetiker ClampOetiker Clamp
-
5703500255 Rubber Boot KitRubber Boot Kit
-
6715900067 Grease FittingGrease Fitting
-
7705400149 Coupling SleeveCoupling Sleeve
-
8705400036 Wear RingWear Ring
-
9705400723 Differential Ass'y. Includes 9 to 29Differential Ass'y. Includes 9 to 29
-
10705400027 Oil SealOil Seal
-
11705400661 NutNut
-
12705500260 Ball BearingBall Bearing
-
13705501051 10 Teeth Pinion10 Teeth Pinion
-
14705500261 Needle BearingNeedle Bearing
-
15705500259 Ball BearingBall Bearing
-
16293350044 Ball BearingBall Bearing
-
17705400645 DifferentialDifferential
-
18705500892 ScrewScrew
-
19705400297 Front CoverFront Cover
-
20705500265 SealSeal
-
21705400646 Front CoverFront Cover
-
22705500893 Vent ValveVent Valve
-
23705500894 Drain PlugDrain Plug
-
24705500267 O-RingO-Ring
-
25705500255 Oil SealOil Seal
-
26703500049 Pinion Shim KitPinion Shim Kit
-
27705500075 Pinion Gear Shim .022''Pinion Gear Shim .022''
-
28703500288 Differential Shim KitDifferential Shim Kit
-
29703500050 Differential Shim KitDifferential Shim Kit
-
30250400041 Screw PlugScrew Plug
-
31705500506 Copper WasherCopper Washer
-
32705400660 RH Homocinetic Joint. Includes 32 to 40RH Homocinetic Joint. Includes 32 to 40
-
33705500560 CV JointCV Joint
-
34705400511 Wheel Boot Kit . Includes 34 to 36Wheel Boot Kit . Includes 34 to 36
-
35293650194 Oetiker ClampOetiker Clamp
-
36293650192 Oetiker ClampOetiker Clamp
-
37705400512 Differential Boot Kit. Includes 37 to 39Differential Boot Kit. Includes 37 to 39
-
38293650192 Oetiker ClampOetiker Clamp
-
39293650193 Oetiker ClampOetiker Clamp
-
40705400042 CirclipCirclip
-
41705400473 LH Knuckle. 650, 800LH Knuckle. 650, 800
-
42705400474 RH Knuckle. 650, 800RH Knuckle. 650, 800
-
43705400659 LH Homocinetic Joint. Includes 43 to 51LH Homocinetic Joint. Includes 43 to 51
-
44705500560 CV JointCV Joint
-
45705400511 Wheel Boot Kit . Includes 45 to 47Wheel Boot Kit . Includes 45 to 47
-
46293650194 Oetiker Clamp. Includes 48 to 50Oetiker Clamp. Includes 48 to 50
-
47293650192 Oetiker ClampOetiker Clamp
-
48705400512 Differential Boot KitDifferential Boot Kit
-
49293650192 Oetiker ClampOetiker Clamp
-
50293650193 Oetiker ClampOetiker Clamp
-
51705400042 CirclipCirclip
-
52293350040 Cone BearingCone Bearing
-
53293650138 Oetiker ClampOetiker Clamp
-
54293370019 CirclipCirclip
-
55230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
56233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
57705500899 Wear SleeveWear Sleeve
-
58705500909 Wheel Hub Ass'yWheel Hub Ass'y
-
59250300034 Wheel StudWheel Stud
-
60250200049 Spring WasherSpring Washer
-
61250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
61232291413 Hex. Flanged Castellated Nut M18Hex. Flanged Castellated Nut M18
-
62250400036 Cotter PinCotter Pin
-
63705400552 Rubber BellowRubber Bellow
-
64293650042 Oetiker ClampOetiker Clamp
-
65705400563 Wheel Cap. STD, XT CAMOWheel Cap. STD, XT CAMO
-
66705400382 Front Tire. 650 STD, 800 STDFront Tire. 650 STD, 800 STD
-
66705400614 Front Tire. 650 STD, 800 STD, EUROPEFront Tire. 650 STD, 800 STD, EUROPE
-
67705400558 Front Rim. STDFront Rim. STD
-
68705400193 Rim ValveRim Valve
-
69705501430 Adhesive Weight, 1/4 OzAdhesive Weight, 1/4 Oz
-
70705500824 Adhesive Weight, 1/2 OzAdhesive Weight, 1/2 Oz
-
71250100042 Wheel Nut. STD, XT CamoWheel Nut. STD, XT Camo
-
72211200041 WasherWasher
-
73207581646 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
74705400643 Wear RingWear Ring
-
75250200102 Flat Washer M12Flat Washer M12
-
76250000378 Hex Flanged Screw S.Grip M12 X 16Hex Flanged Screw S.Grip M12 X 16
-
77293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
