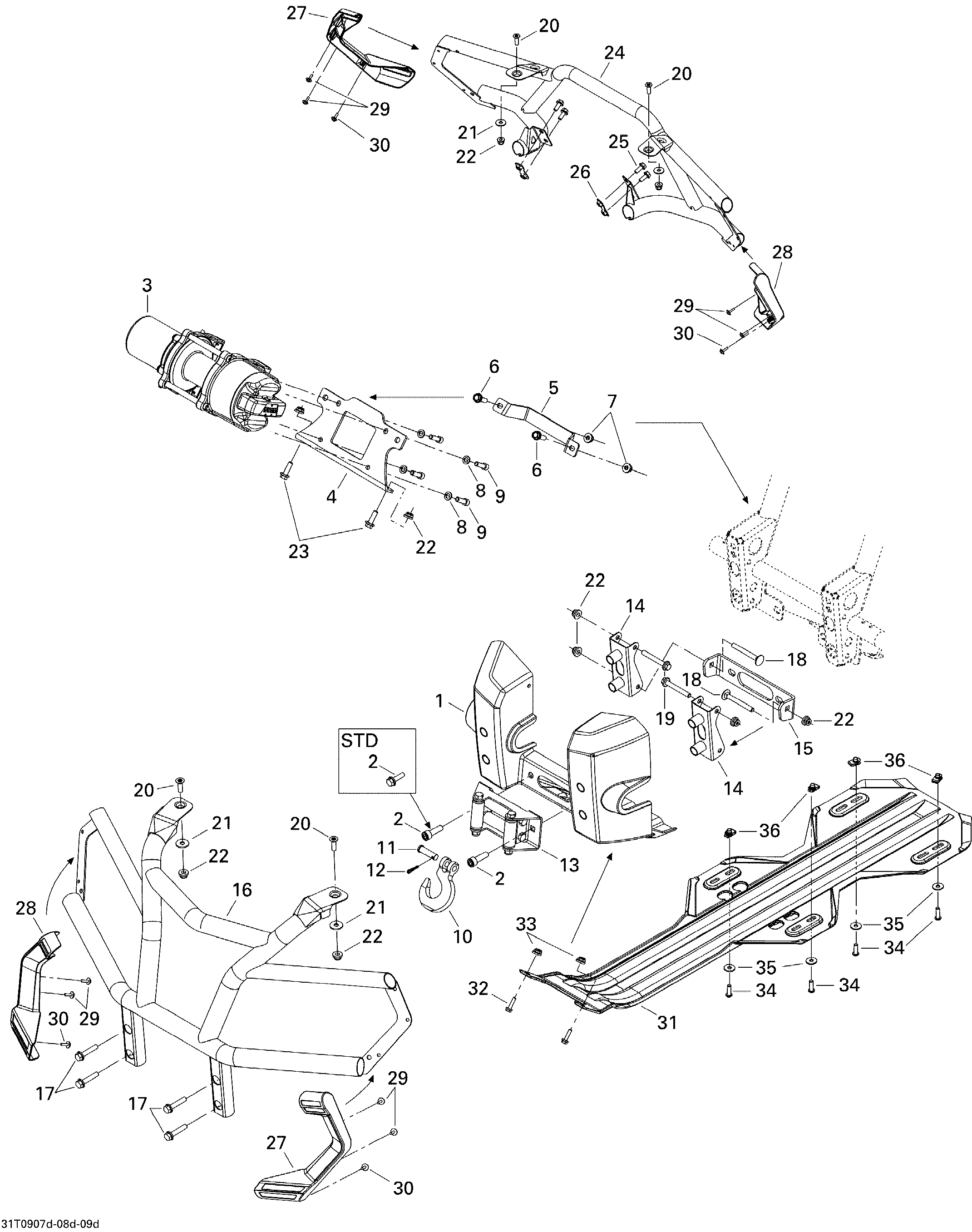

09- Body And Accessories 4, STD для BRP Outlander Max 800R EFI - 2009
-
№АртикулНазвание
-
1705002989 Front Protection Plate. STDFront Protection Plate. STD
-
2207602544 Hex. Flanged Screw M10 X 25. STDHex. Flanged Screw M10 X 25. STD
-
3705003296 Winch. EuropeWinch. Europe
-
31715000688 Skid Plate. Includes 31 to 36Skid Plate. Includes 31 to 36
-
32207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
33233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
34250000283 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
35234082410 Flat Washer 8 mmFlat Washer 8 mm
-
36250100111 Panel Nut M8Panel Nut M8
