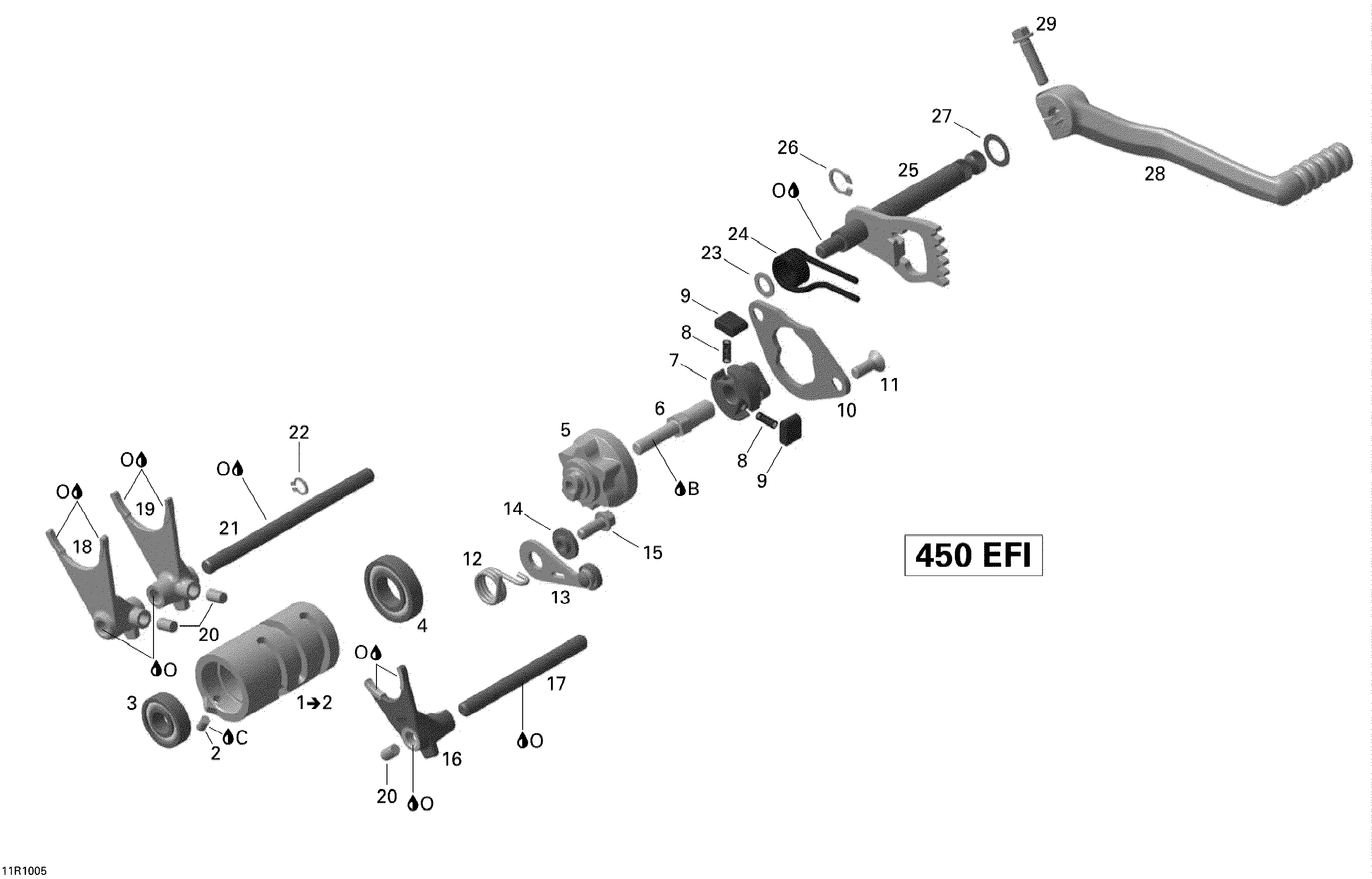

05- Shifting System для BRP DS 450 EFI - 2010
-
№АртикулНазвание
-
1420257808 Shift Drum. Includes 1 to 2Shift Drum. Includes 1 to 2
-
3420232400 Balll BearingBalll Bearing
-
4420232590 Balll BearingBalll Bearing
-
5420257810 Index WasherIndex Washer
-
6420249150 Bearing PinBearing Pin
-
7420434661 Tooth SegmentTooth Segment
-
8420239130 Compression springCompression spring
-
9420257821 PawlPawl
-
10420257830 Disengage GateDisengage Gate
-
11420440906 Countersunk Screw M6 X 16Countersunk Screw M6 X 16
-
12420238294 Index Spring 2.5 mmIndex Spring 2.5 mm
-
13420248326 Index LeverIndex Lever
-
14420227710 BushingBushing
-
15420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
16420257930 Gearshift ForkGearshift Fork
-
17420258205 Fork SpindleFork Spindle
-
18420257920 Gearshift ForkGearshift Fork
-
19420257910 Gearshift ForkGearshift Fork
-
20420932785 Needle PinNeedle Pin
-
21420258200 Fork SpindleFork Spindle
-
22420245570 Retaining RingRetaining Ring
-
23420944033 Washer 8.4Washer 8.4
-
24420239251 SpringSpring
-
25420620795 Shift ShaftShift Shaft
-
26420945470 Retaining RingRetaining Ring
-
27420944382 ShimShim
-
28420248540 Gearshift PedalGearshift Pedal
-
29420440232 Torx Screw M6 X 25Torx Screw M6 X 25
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
C413711400 Loctite 648, 10 mlLoctite 648, 10 ml
