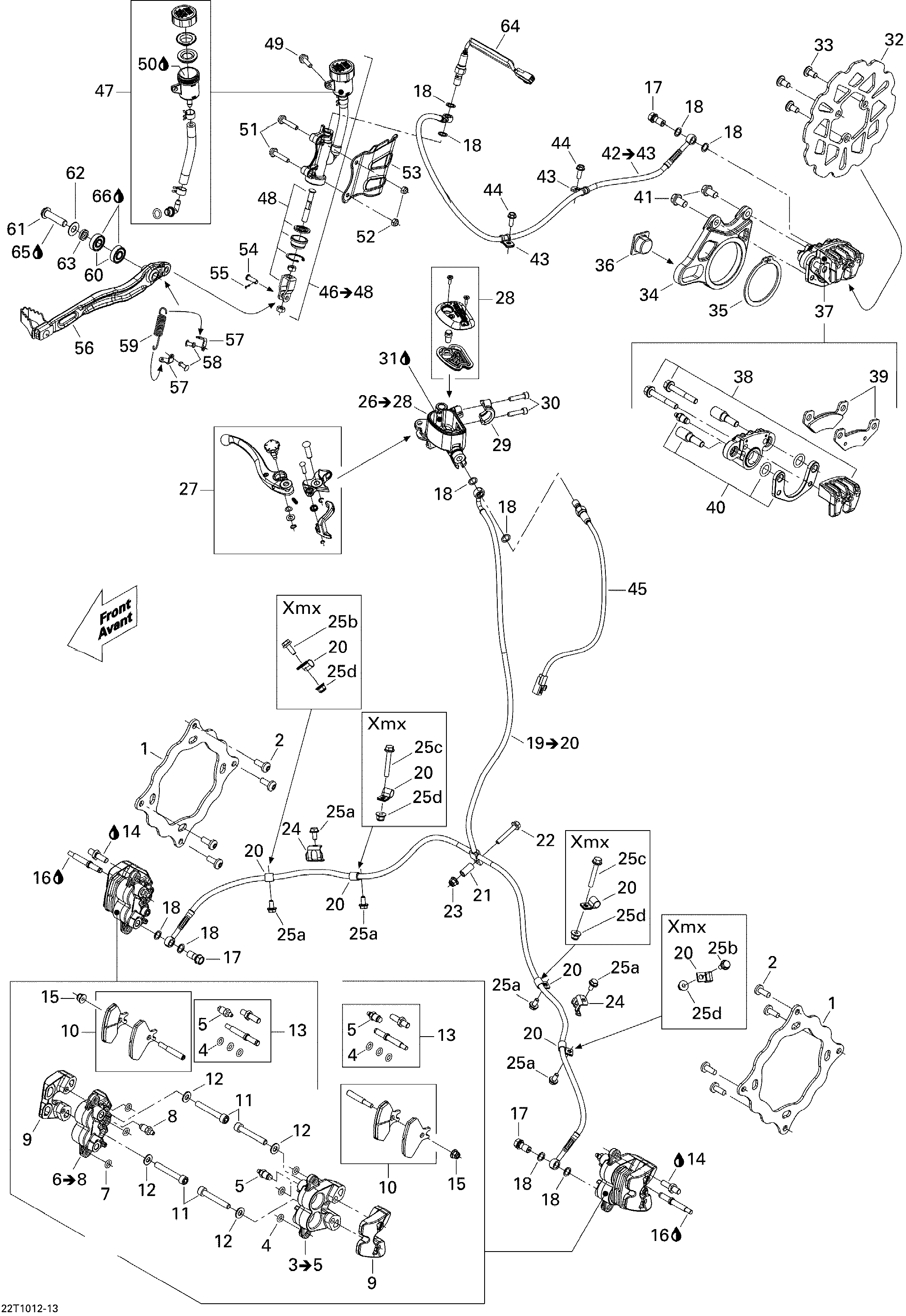

06- Hydraulic Brakes для BRP DS 450 EFI - 2010
-
№АртикулНазвание
-
1705600400 Front Brake DiscFront Brake Disc
-
2250000117 Torx Screw M8 X 20, Scotch GripTorx Screw M8 X 20, Scotch Grip
-
3705600401 LH Front Caliper Ass'y. Includes 3 to 5LH Front Caliper Ass'y. Includes 3 to 5
-
4705600425 Pin Slide KitPin Slide Kit
-
5705600568 Screw BleederScrew Bleeder
-
6705600404 RH Front Caliper Ass'y. Includes 6 to 8RH Front Caliper Ass'y. Includes 6 to 8
-
7705600425 Pin Slide KitPin Slide Kit
-
8705600568 Screw BleederScrew Bleeder
-
9705600560 Outer CaliperOuter Caliper
-
10705600402 Front Brake Pad KitFront Brake Pad Kit
-
11205085534 Socket Head Screw M8 X 55Socket Head Screw M8 X 55
-
12234081430 Flat Washer M8Flat Washer M8
-
13705600425 Pin Slide KitPin Slide Kit
-
14293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
15233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
16293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
17705600628 Banjo BoltBanjo Bolt
-
18705600310 Copper WasherCopper Washer
-
19705600408 Front Lever Brake Hose Ass'y. Includes 19 to 20Front Lever Brake Hose Ass'y. Includes 19 to 20
-
20705600459 ClampClamp
-
21512059812 SpacerSpacer
-
22207664034 Hex. Flanged Screw M6 X 40Hex. Flanged Screw M6 X 40
-
23233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
24705600553 Hose HolderHose Holder
-
25a207561234 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
26705600409 Cylinder Master Ass'y. Includes 26 to 28Cylinder Master Ass'y. Includes 26 to 28
-
27705600491 Brake Lever KitBrake Lever Kit
-
28705600493 Cap SetCap Set
-
29705600619 Bracket KitBracket Kit
-
30205062534 Socket Head Screw M6 X 25Socket Head Screw M6 X 25
-
31293600062 Brake Fluid, GTLMA, DOT 4, 12 X 354 mlBrake Fluid, GTLMA, DOT 4, 12 X 354 ml
-
32705600410 Rear Disc BrakeRear Disc Brake
-
33250000330 Shoulder Screw M8Shoulder Screw M8
-
34705600411 Rear Caliper SupportRear Caliper Support
-
35293370045 Snap RingSnap Ring
-
36705600412 Guide Rear CaliperGuide Rear Caliper
-
37705600713 Rear Caliper Ass'yRear Caliper Ass'y
-
38705600490 Anvil KitAnvil Kit
-
39705600711 Brake Pad KitBrake Pad Kit
-
40705600714 Bracket KitBracket Kit
-
41250000313 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
42705600414 Rear Brake Hose Ass'y. Includes 42 to 43Rear Brake Hose Ass'y. Includes 42 to 43
-
43705600459 ClampClamp
-
44210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
45710000853 Brake SwitchBrake Switch
-
46705600738 Rear Master Cylinder. Includes 46 to 48Rear Master Cylinder. Includes 46 to 48
-
47705600740 Set Tank Ass'ySet Tank Ass'y
-
48705600498 Rod SetRod Set
-
49207662034 Hex. Flanged ScrewHex. Flanged Screw
-
50293600062 Brake Fluid, GTLMA, DOT 4, 12 X 354 mlBrake Fluid, GTLMA, DOT 4, 12 X 354 ml
-
51207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
52232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
53705600538 Hose ProtectorHose Protector
-
54250400031 Clevis PinClevis Pin
-
55250400032 Cotter PinCotter Pin
-
56705600534 Brake PedalBrake Pedal
-
57705600631 Fixation PlateFixation Plate
-
58390407200 Pop Rivet 3/16''Pop Rivet 3/16''
-
59705600635 Brake Pedal SpringBrake Pedal Spring
-
60705600458 BearingBearing
-
61205404036 Socket Head Screw M10 X 40Socket Head Screw M10 X 40
-
62506152194 WasherWasher
-
63293900087 BushingBushing
-
64710001377 Brake SwitchBrake Switch
-
65293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
66413703100 Loctite 609, 10 mlLoctite 609, 10 ml
