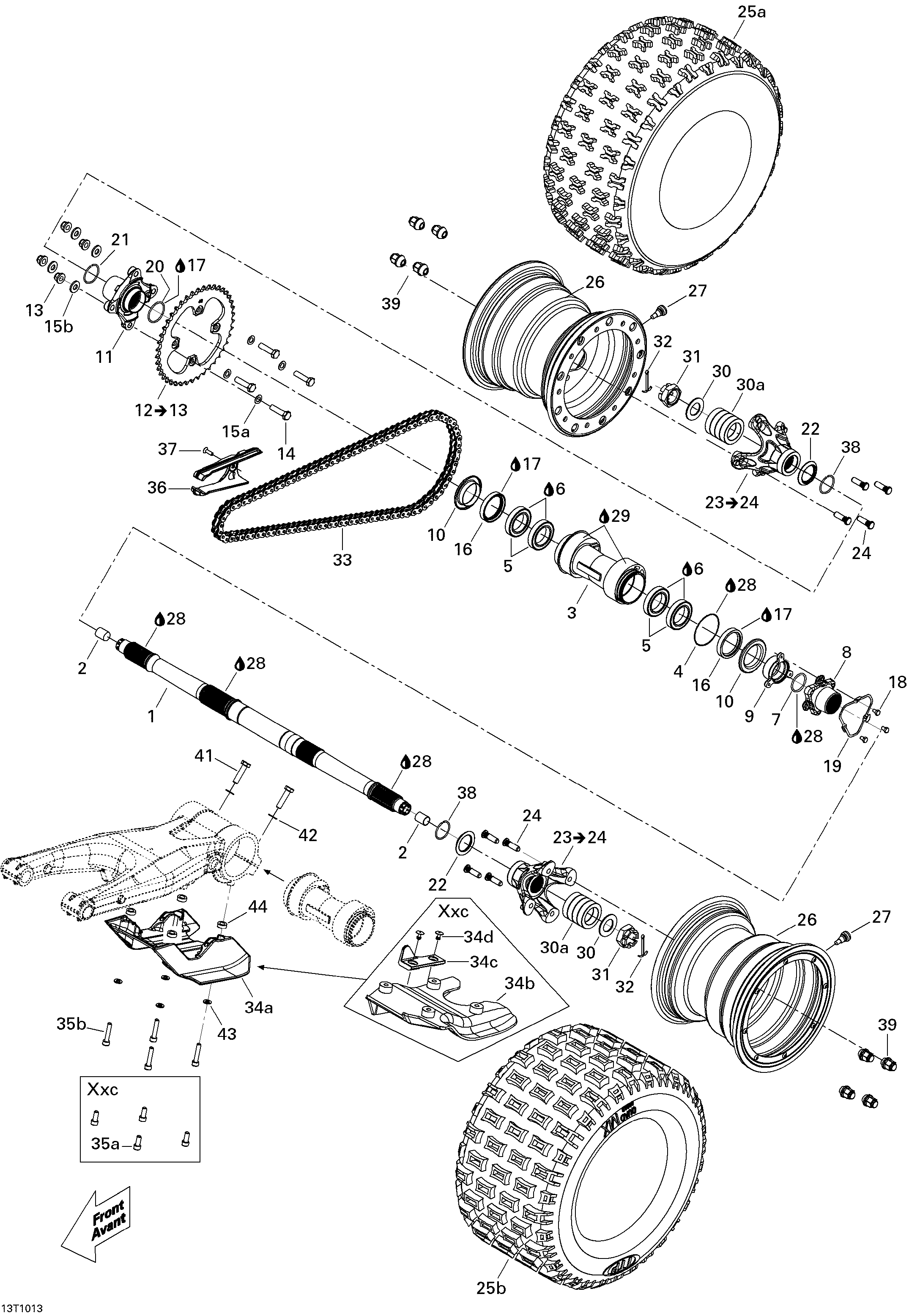

08- Drive System, Rear для BRP DS 450 Xxc, Xmx EFI - 2010
-
№АртикулНазвание
-
1705500998 Drive AxleDrive Axle
-
2293730044 CapCap
-
3705501014 Chain TightenerChain Tightener
-
4293300115 O-RingO-Ring
-
5293350053 Ball BearingBall Bearing
-
6413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
7293300089 O-RingO-Ring
-
8705500646 Brake Disc HubBrake Disc Hub
-
9705500649 Nut M40Nut M40
-
10705500648 Wear RingWear Ring
-
11705500650 Sprocket Wheel HubSprocket Wheel Hub
-
12715000592 Sprocket Kit, 42 Teeth. Includes 12 to 13, XxcSprocket Kit, 42 Teeth. Includes 12 to 13, Xxc
-
12715000527 Sprocket Kit, 39 Teeth. Includes 12 to 13, XmxSprocket Kit, 39 Teeth. Includes 12 to 13, Xmx
-
13233201436 Flanged Elastic NutFlanged Elastic Nut
-
14207004036 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
15a250200084 Flat WasherFlat Washer
-
15b234201474 Conical Spring Washer 10 mmConical Spring Washer 10 mm
-
16293250164 Oil SealOil Seal
-
17293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
18207161034 Hex. Screw M6 X 10Hex. Screw M6 X 10
-
19705500669 Lock WasherLock Washer
-
20293300099 O-RingO-Ring
-
21705500108 Ring RetainerRing Retainer
-
22705500663 Support RingSupport Ring
-
23705501075 Rear Wheel Hub Ass'y. Includes 23 to 24Rear Wheel Hub Ass'y. Includes 23 to 24
-
24250300013 Wheel StudWheel Stud
-
25a705500989 Rear Tire. XxcRear Tire. Xxc
-
25b705500994 Rear Tire. XmxRear Tire. Xmx
-
26705500990 Rear Rim. XxcRear Rim. Xxc
-
26705500995 Rear Rim. XmxRear Rim. Xmx
-
27705400193 Rim ValveRim Valve
-
28293550019 Grease, 60 GGrease, 60 G
-
29293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
30250200087 Flat WasherFlat Washer
-
30a705500999 SpacerSpacer
-
31250100093 Hex. Castlellated Nut M27Hex. Castlellated Nut M27
-
32250400028 Cotter PinCotter Pin
-
33705500948 Chain. XxcChain. Xxc
-
33705501084 Chain. XmxChain. Xmx
-
34a705500660 Rear Skid PlateRear Skid Plate
-
34b705501064 Rear Skid Plate. XxcRear Skid Plate. Xxc
-
34c705500923 Chain Slider. XxcChain Slider. Xxc
-
34d293150104 Pop Rivet 3/16''. XxcPop Rivet 3/16''. Xxc
-
35a205082534 Socket Head Screw M8 X 25. XxcSocket Head Screw M8 X 25. Xxc
-
35b205084044 Socket Head Screw M8 X 40. XmxSocket Head Screw M8 X 40. Xmx
-
36705500659 Chain SliderChain Slider
-
37205862034 Socket Head Screw M6, Scotch GripSocket Head Screw M6, Scotch Grip
-
38705500065 Ring RetainerRing Retainer
-
39250100100 Black Wheel Nut M10 X 1.25Black Wheel Nut M10 X 1.25
-
41207004034 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
42250200084 Flat WasherFlat Washer
-
43234081410 Flat Washer 8 mm. XmxFlat Washer 8 mm. Xmx
-
44293900028 Bushing. XmxBushing. Xmx
