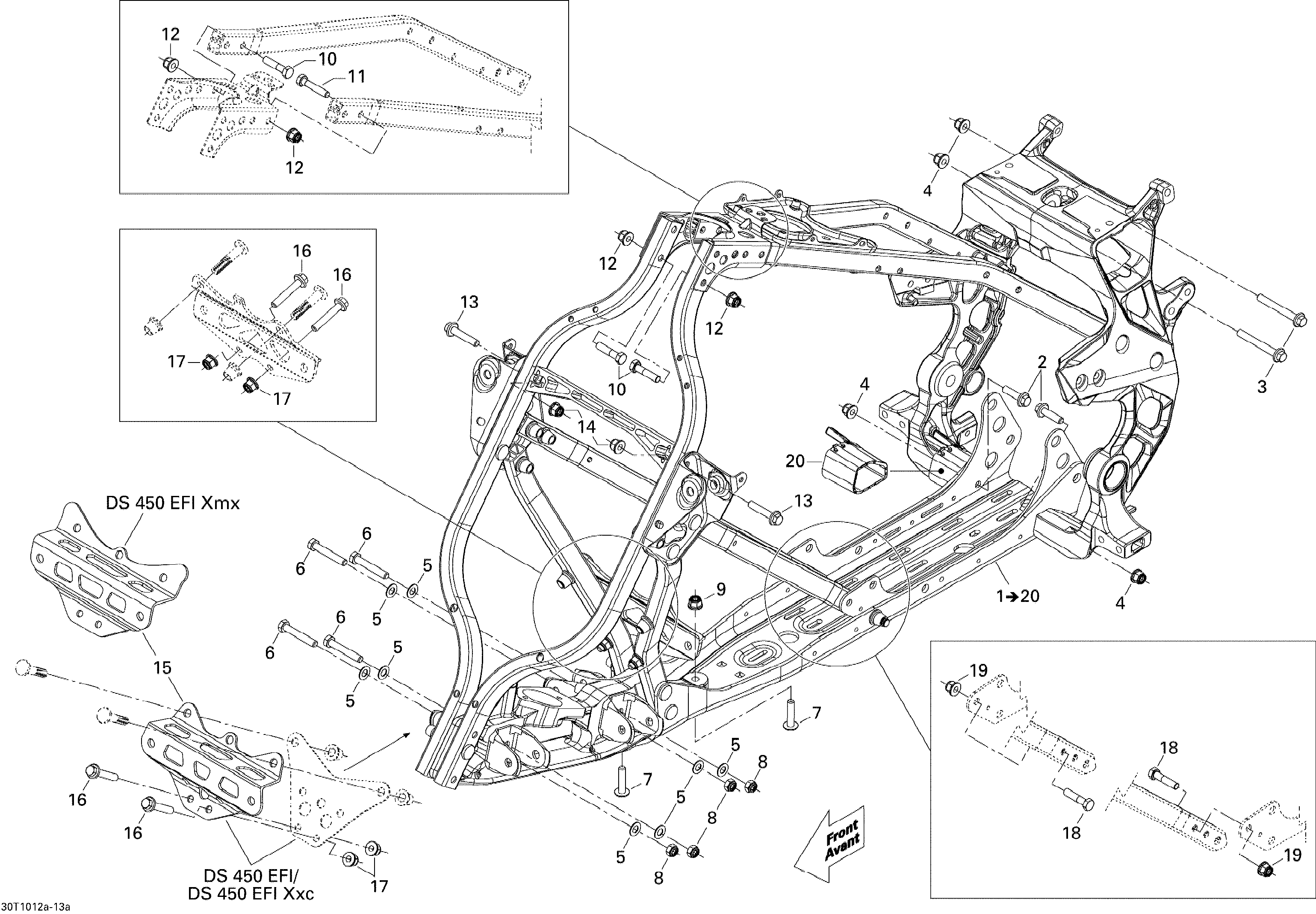

09- Frame 1 Xmx для BRP DS 450 Xxc, Xmx EFI - 2010
-
№АртикулНазвание
-
1705202170 Frame Ass'y. Includes 1 to 20Frame Ass'y. Includes 1 to 20
-
2207683034 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
3207686534 Hex. Flanged Screw M8 x 65Hex. Flanged Screw M8 x 65
-
4233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
5506151252 WasherWasher
-
7250000316 Torx Truss Screw M8 X 35Torx Truss Screw M8 X 35
-
9233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
10207083544 Hex. Screw M8 X 35Hex. Screw M8 X 35
-
11207084044 Hex. Screw M8 X 40Hex. Screw M8 X 40
-
12233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
13207684034 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
14233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
15705202172 Front Braket A-ArmFront Braket A-Arm
-
16207684534 Hex. Flanged Screw M8 X 45Hex. Flanged Screw M8 X 45
-
17233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
18207083544 Hex. Screw M8 X 35Hex. Screw M8 X 35
-
19233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
20705500931 Skid PlateSkid Plate
