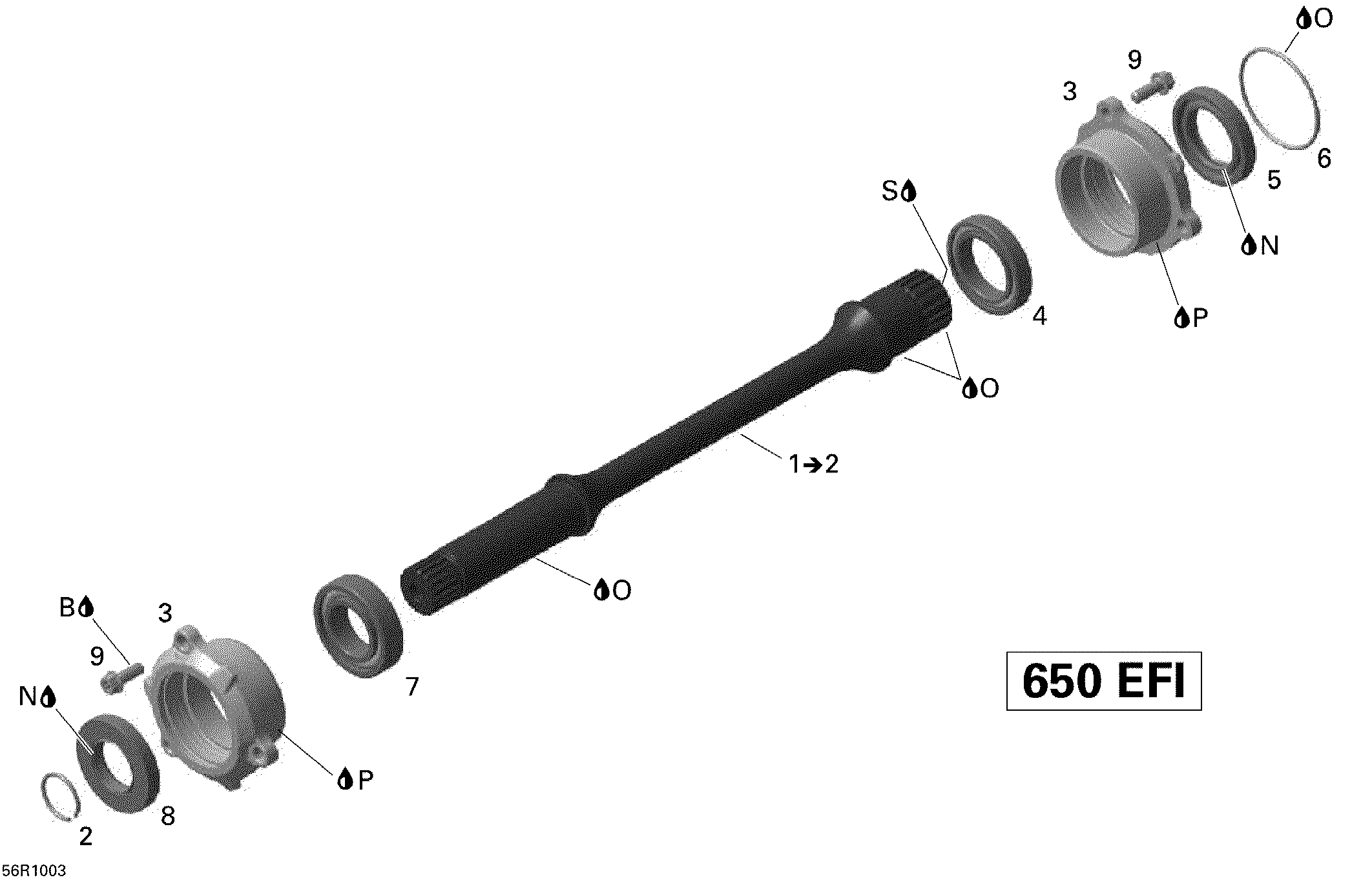

08- Drive Shaft для BRP Outlander Max 650 EFI - 2010
-
№АртикулНазвание
-
1420620515 Drive Shaft Ass'y. Includes 1 to 2Drive Shaft Ass'y. Includes 1 to 2
-
2420245010 CirclipCirclip
-
3420611221 Bearing CoverBearing Cover
-
4420632275 Ball BearingBall Bearing
-
5420850055 Oil SealOil Seal
-
6420230305 O-RingO-Ring
-
7420232341 Ball BearingBall Bearing
-
8420430589 Oil SealOil Seal
-
9420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
N293550030 Grease, Super LubeGrease, Super Lube
-
P293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
-
S293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
