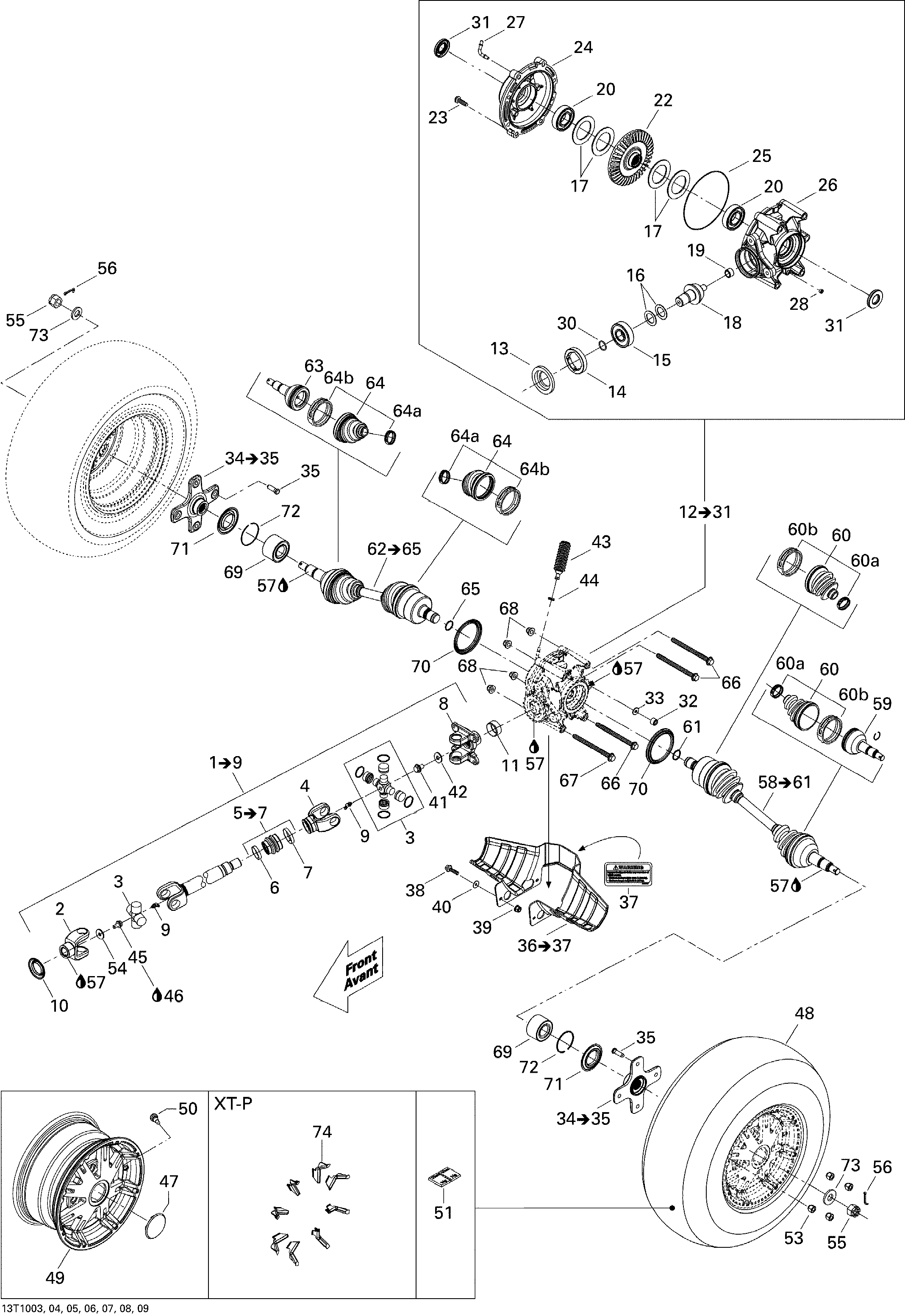

08- Drive System, Rear для BRP Outlander Max 650 EFI - 2010
-
№АртикулНазвание
-
1703500720 Rear Propeller Shaft Kit. Includes 1 to 9Rear Propeller Shaft Kit. Includes 1 to 9
-
2705500371 Fix JointFix Joint
-
3703000022 Unit Pack KitUnit Pack Kit
-
4705501072 Sliding JointSliding Joint
-
5703500255 Rubber Boot KitRubber Boot Kit
-
7293650138 Oetiker ClampOetiker Clamp
-
8705500526 Disc JointDisc Joint
-
9705500841 Grease FittingGrease Fitting
-
10705501123 ProtectorProtector
-
11705400036 Wear RingWear Ring
-
12705501047 Rear Differential Ass'y. Includes 12 to 31Rear Differential Ass'y. Includes 12 to 31
-
13705400027 Oil SealOil Seal
-
14705500987 NutNut
-
15705500260 Ball BearingBall Bearing
-
16705500075 Pinion Gear Shim .022''Pinion Gear Shim .022''
-
16705501163 Pinion Gear Shim 2.12mmPinion Gear Shim 2.12mm
-
16703500049 Pinion Shim KitPinion Shim Kit
-
17703500548 Differential Shim KitDifferential Shim Kit
-
18705501051 10 Teeth Pinion10 Teeth Pinion
-
19705500261 Needle BearingNeedle Bearing
-
20705500749 Ball BearingBall Bearing
-
22705501048 Gear, 36 ToothGear, 36 Tooth
-
23705500892 ScrewScrew
-
24705501049 Rear Differential CoverRear Differential Cover
-
25705500265 SealSeal
-
26705501066 Rear CoverRear Cover
-
27705500893 Vent ValveVent Valve
-
28705500894 Drain PlugDrain Plug
-
30705500267 O-RingO-Ring
-
31705501196 Oil SealOil Seal
-
32250400041 Screw PlugScrew Plug
-
33705500506 Copper WasherCopper Washer
-
34705501131 Wheel Hub Ass'y. Includes 34 to 35Wheel Hub Ass'y. Includes 34 to 35
-
35250300034 Wheel StudWheel Stud
-
36703500722 Protector Kit. Includes 36 to 37Protector Kit. Includes 36 to 37
-
37704900009 Warning Label, HitchWarning Label, Hitch
-
38207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
39233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
40250200082 Flat WasherFlat Washer
-
41250000378 Hex Flanged Screw S.Grip M12 X 16Hex Flanged Screw S.Grip M12 X 16
-
42250200102 Flat Washer M12Flat Washer M12
-
43705400352 Rubber BellowRubber Bellow
-
44293650042 Oetiker ClampOetiker Clamp
-
45250000359 Hex Flanged Screw M12 x 16Hex Flanged Screw M12 x 16
-
46293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
47705400680 Wheel CapWheel Cap
-
48705500606 Rear Tire. XT Europe (Except Camo), XT-P EuropeRear Tire. XT Europe (Except Camo), XT-P Europe
-
48705500685 Rear Tire. STDRear Tire. STD
-
48705500938 Rear Tire. STD EuropeRear Tire. STD Europe
-
48705500940 Rear Tire. XT, XT-PRear Tire. XT, XT-P
-
49705500986 Rear Wheel. XT (Except Camo)Rear Wheel. XT (Except Camo)
-
49705501019 Rear Wheel. XT Camo, XT-PRear Wheel. XT Camo, XT-P
-
49705501188 Rear Wheel. STDRear Wheel. STD
-
50705400193 Rim ValveRim Valve
-
51705500824 Adhesive Weight, 1/2 OzAdhesive Weight, 1/2 Oz
-
53250100100 Black Wheel Nut M10 X 1.25. XT Camo, XT-PBlack Wheel Nut M10 X 1.25. XT Camo, XT-P
-
53250100082 Chrome Wheel Nut M10 X 1.25. STD, XT (Except Camo)Chrome Wheel Nut M10 X 1.25. STD, XT (Except Camo)
-
54250200102 Flat Washer M12Flat Washer M12
-
55250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
56250400036 Cotter PinCotter Pin
-
57293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
58705500979 LH CV Joint Ass'y. Includes 58 to 61LH CV Joint Ass'y. Includes 58 to 61
-
59705500980 CV JointCV Joint
-
60705500870 Boot KitBoot Kit
-
60a293650204 Oetiker Clamp (81mm)Oetiker Clamp (81mm)
-
60b293650203 Oetiker Clamp (27,5mm)Oetiker Clamp (27,5mm)
-
61705500845 CirclipCirclip
-
62705500983 RH CV Joint Ass'y. Includes 62 to 65RH CV Joint Ass'y. Includes 62 to 65
-
63705500980 CV JointCV Joint
-
64705500870 Boot KitBoot Kit
-
64a293650204 Oetiker Clamp (81mm)Oetiker Clamp (81mm)
-
64b293650203 Oetiker Clamp (27,5mm)Oetiker Clamp (27,5mm)
-
65705500845 CirclipCirclip
-
66230603036 Hex. Flanged Screw M10 X 130Hex. Flanged Screw M10 X 130
-
67230603536 Hex. Flanged Screw M10 X 135Hex. Flanged Screw M10 X 135
-
68233201436 Flanged Elastic NutFlanged Elastic Nut
-
69293350040 Cone BearingCone Bearing
-
70705501124 Wear RingWear Ring
-
71705501121 Wear SleeveWear Sleeve
-
72293370019 CirclipCirclip
-
73250200049 Spring WasherSpring Washer
-
74705400681 Fin Wheel Moulding. XT-PFin Wheel Moulding. XT-P
