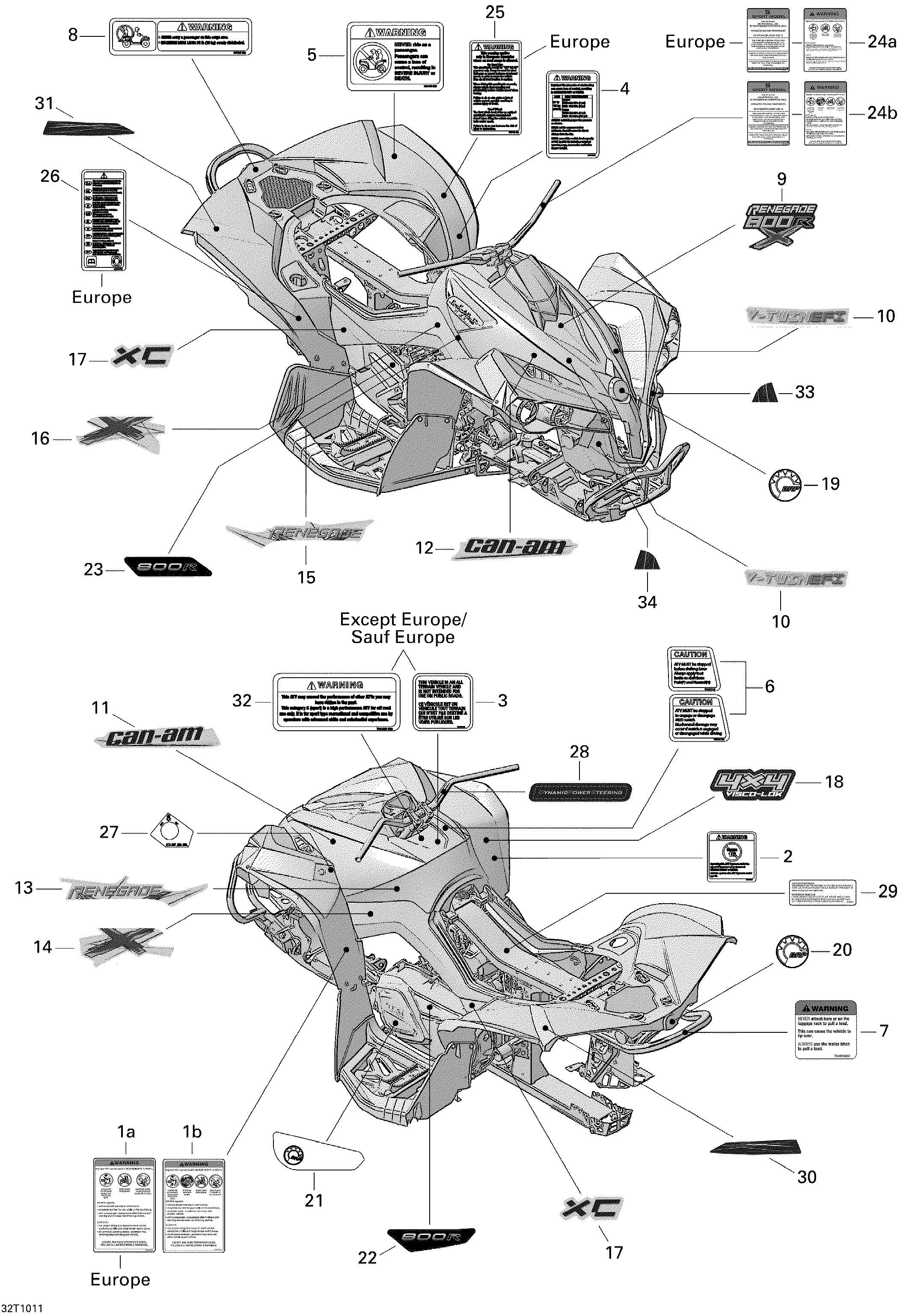

09- Decals для BRP Renegade 800R EFI Xxc - 2010
-
№АртикулНазвание
-
1a704901875 Warning Decal, Death And Injuries. EuropeWarning Decal, Death And Injuries. Europe
-
1b704901878 Warning Decal, Death And Injuries. Except EuropeWarning Decal, Death And Injuries. Except Europe
-
2704900011 Warning Decal, Under 16 Years OldWarning Decal, Under 16 Years Old
-
3704901438 Transport Canada Label. Except EuropeTransport Canada Label. Except Europe
-
4704901419 Warning Decal, Tire PressureWarning Decal, Tire Pressure
-
5704900005 Warning Decal, PassengerWarning Decal, Passenger
-
6704901308 Caution Decal, Lever And 4wd SwitchCaution Decal, Lever And 4wd Switch
-
7704902005 Warning Label, Porte-BagagesWarning Label, Porte-Bagages
-
8704901333 Warning Decal, LoadWarning Decal, Load
-
9704901950 Console DecalConsole Decal
-
10704901957 Front Center DecalFront Center Decal
-
11704901958 LH Decal, Can-amLH Decal, Can-am
-
12704901959 RH Decal, Can-amRH Decal, Can-am
-
13704901951 LH Side Decal, RenegadeLH Side Decal, Renegade
-
14704901953 LH Side Decal, XLH Side Decal, X
-
15704901954 RH Side Decal, RenegadeRH Side Decal, Renegade
-
16704901955 RH Side Decal, XRH Side Decal, X
-
17704901943 Decal, XCDecal, XC
-
18704901486 Decal, 4X4Decal, 4X4
-
19219902469 Logo, BRP 68 mmLogo, BRP 68 mm
-
20219902468 Logo, BRP 48 mmLogo, BRP 48 mm
-
21704900963 Decal, CVTDecal, CVT
-
22704901962 Decal, CVT 800RDecal, CVT 800R
-
23704901963 Decal, Engine Cover, 800RDecal, Engine Cover, 800R
-
24a704901877 Warning Decal, General Use Model. EuropeWarning Decal, General Use Model. Europe
-
24b704901876 Warning Decal, General Use Model. Except EuropeWarning Decal, General Use Model. Except Europe
-
25704901444 Warning Decal, Public Road Use. EuropeWarning Decal, Public Road Use. Europe
-
26704901177 International Decal, Multilingual. Europe, InternationalInternational Decal, Multilingual. Europe, International
-
27704901311 D.E.S.S DecalD.E.S.S Decal
-
28704901558 Decal, Dynamic Power SteeringDecal, Dynamic Power Steering
-
29707800373 Decal, Air Filter MaintenanceDecal, Air Filter Maintenance
-
30704901949 LH Side DecalLH Side Decal
-
31704901948 RH Side DecalRH Side Decal
-
32704900089 Warning Decal, Performance. Except EuropeWarning Decal, Performance. Except Europe
-
33704901960 LH Front DecalLH Front Decal
-
34704901961 RH Front DecalRH Front Decal
