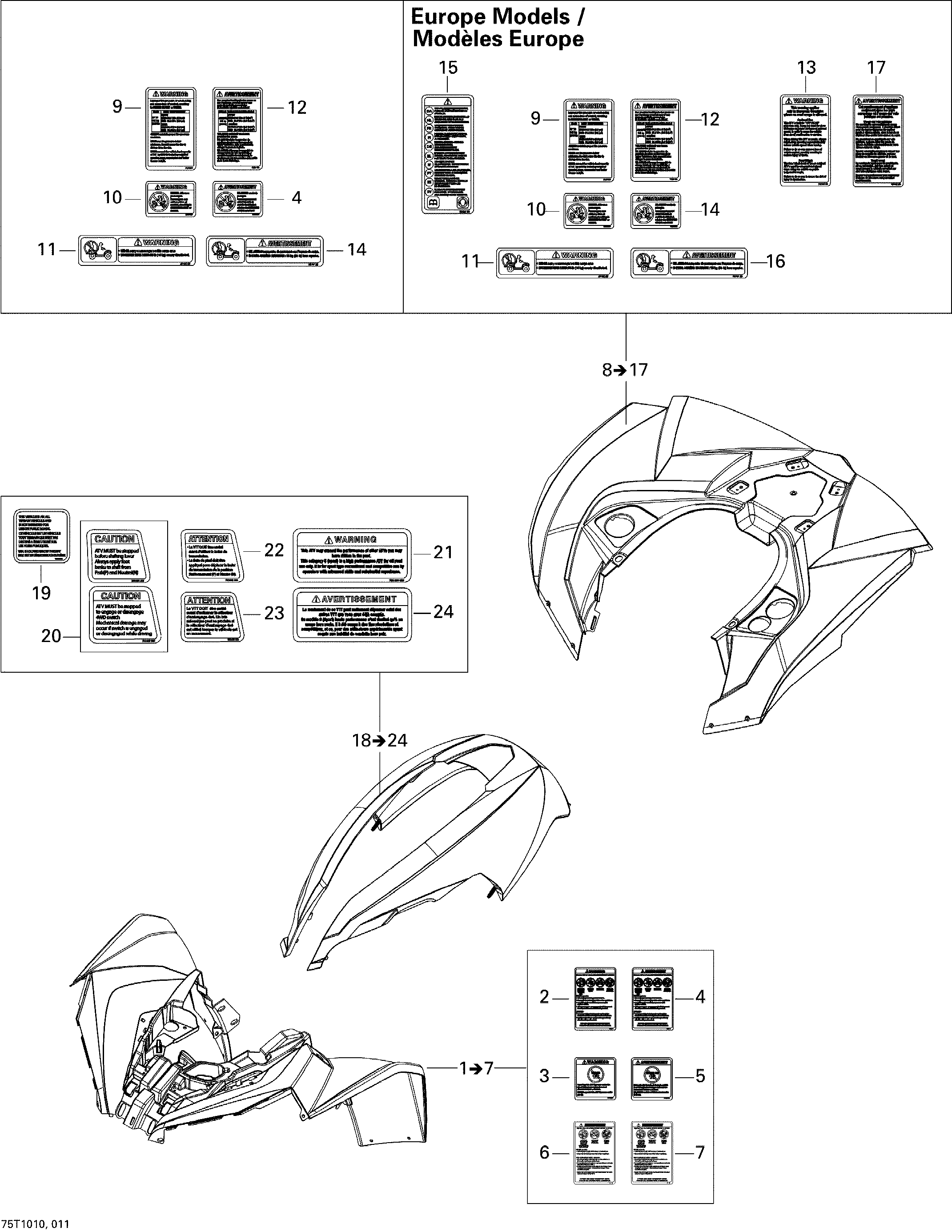

09- Fender And Central Panel Kit для BRP Renegade 800R EFI Xxc - 2010
-
№АртикулНазвание
-
1715000742 Front Fender Kit, Black. BlackFront Fender Kit, Black. Black
-
2704901878 Warning Decal, Death And Injuries. English VersionWarning Decal, Death And Injuries. English Version
-
3704900011 Warning Decal, Under 16 Years Old. English VersionWarning Decal, Under 16 Years Old. English Version
-
4704900002 Warning Label, Death And Injuries. French VersionWarning Label, Death And Injuries. French Version
-
5704900012 Warning Label, Under 16 Years Old. French VersionWarning Label, Under 16 Years Old. French Version
-
6704901441 Warning Label, Death And Injuries. French VersionWarning Label, Death And Injuries. French Version
-
7704901875 Warning Decal, Death And Injuries. English VersionWarning Decal, Death And Injuries. English Version
-
8715000497 Rear Fender Kit, Black. Black North America_Black InternationalRear Fender Kit, Black. Black North America_Black International
-
8715000499 Rear Fender Kit, Black. Black EuropeRear Fender Kit, Black. Black Europe
-
9704901419 Warning Label, Tire Pressure. English VersionWarning Label, Tire Pressure. English Version
-
10704900005 Warning Decal, Passenger. English VersionWarning Decal, Passenger. English Version
-
11704901333 Warning Label, Load. English VersionWarning Label, Load. English Version
-
12704901418 Warning Label, Tire Pressure. French VersionWarning Label, Tire Pressure. French Version
-
13704901444 Warning Decal, Public Road Use. EuropeWarning Decal, Public Road Use. Europe
-
14704900006 Warning Label, Passenger, French. French VersionWarning Label, Passenger, French. French Version
-
15704901177 International Decal, Multilingual. EuropeInternational Decal, Multilingual. Europe
-
16704901334 Warning Label, Load. French VersionWarning Label, Load. French Version
-
17704901158 Warning Label, Public Road Use. EuropeWarning Label, Public Road Use. Europe
-
18715000748 Central Pannel. Yellow EuropeCentral Pannel. Yellow Europe
-
18715000752 Yellow, Central Pannel. Black North America_Black InternationalYellow, Central Pannel. Black North America_Black International
-
19704901438 Transport Canada Label. BilingualTransport Canada Label. Bilingual
-
20704901308 Caution Label, Lever And 4wd Switch. English VersionCaution Label, Lever And 4wd Switch. English Version
-
21704900089 Warning Label, Performance. English VersionWarning Label, Performance. English Version
-
22704901330 Caution Label, Shifting Lever. French VersionCaution Label, Shifting Lever. French Version
-
23704901332 Caution Label, 4wd Switch. French VersionCaution Label, 4wd Switch. French Version
-
24704900105 Warning Label, Performance. French VersionWarning Label, Performance. French Version
