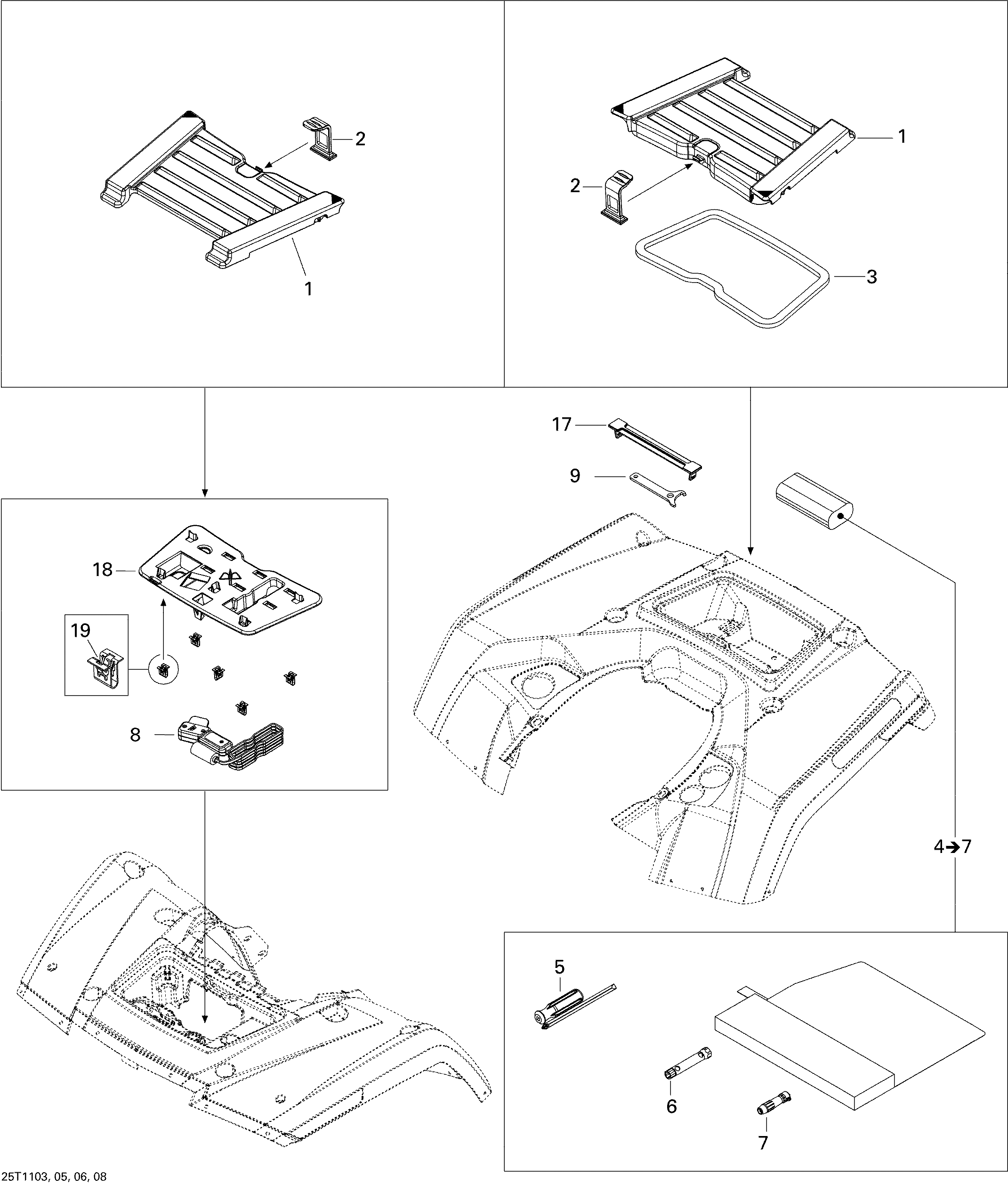

09- Front and Rear Trays для BRP Outlander 500 EFI - 2011
-
№АртикулНазвание
-
1705003492 Storage CoverStorage Cover
-
2708200120 Cover LatchCover Latch
-
3293250192 Neoprene SealNeoprene Seal
-
4708200124 Tool Kit. Includes 4 to 7Tool Kit. Includes 4 to 7
-
5529000004 Screw DriverScrew Driver
-
6529014900 Socket Wrench 10/13 mmSocket Wrench 10/13 mm
-
7529000052 Pressure GaugePressure Gauge
-
8710001002 Remote ControlRemote Control
-
9529000035 Adjustement WrenchAdjustement Wrench
-
17708200121 Cover Latch KitCover Latch Kit
-
18708200075 SupportSupport
-
19517302785 ClipClip
